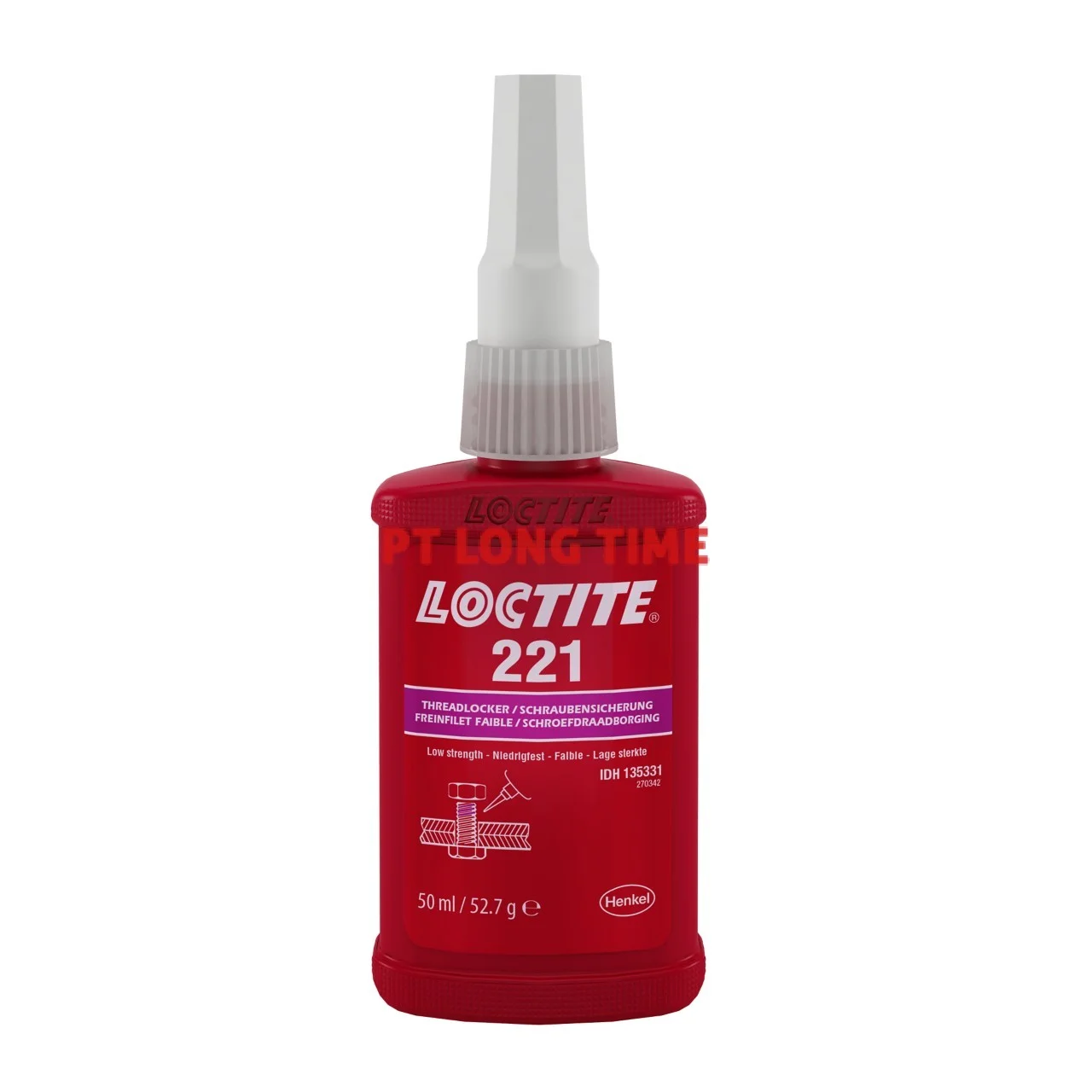

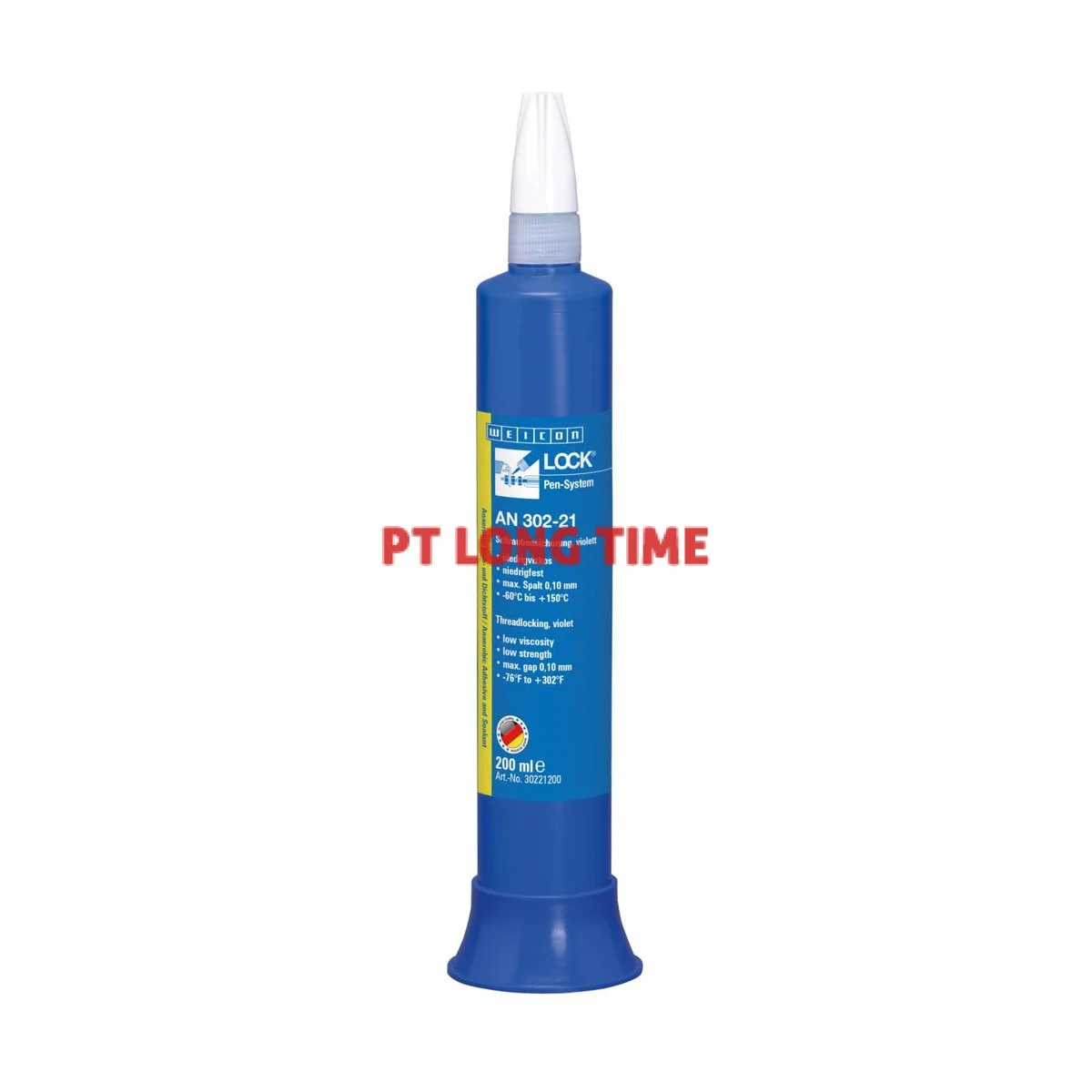

Low Strength Threadlocking WEICONLOCK AN 302-21 LOCTITE 221
Specification
Name
Low Strength Threadlocking WEICONLOCK AN 302-21 LOCTITE 221
SKU
AN 302-21
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | Violet | |
| Fluorescent | Yes | |
| For Thread Connections | Up to M 12 | |
| Viscosity | 125 mPa·s | |
| Gap Bridging up to max. | 0.1 mm | |
| Breakaway Torque | 7 - 10 Nm | |
| Prevail Torque | 3 - 6 Nm | |
| Shear Strength Nmm² | (DIN 54452) | 4 - 7 N/mm² |
| Handling Strength | 10 - 20 min. | |
| Final Strength | (100% strength) | 3 - 6 h |
| Temperature Resistance | -60°C to +150°C | |
| Compressive Strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | Max. | 1500 bar |
| M_4x6 | Max. | 1500 bar |
| M_5x8 | Max. | 1500 bar |
| M_6x10 | Max. | 400 bar |
| M_8x12 | Max. | 300 bar |
| M_10x16 | Max. | 300 bar |
| LOCTITE SPESIFICATION | |
| Chemical basis / base | Methacrylate |
| Color | Purple |
| Fixture time | 20.0 - 210.0 min. |
| Recommended for use with | Metal: Brass, Metal: Steel, Metal: Steel - Stainless Steel |
| Viscosity, Brookfield - RVT, @ 25.0 °C Spindle 1, speed 20 rpm | 100.0 - 150.0 mPa·s (cP) |
