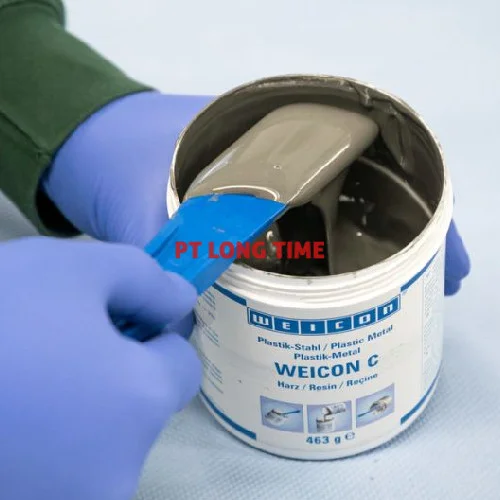

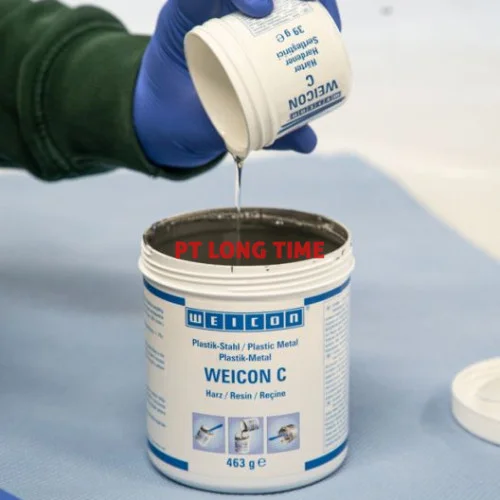

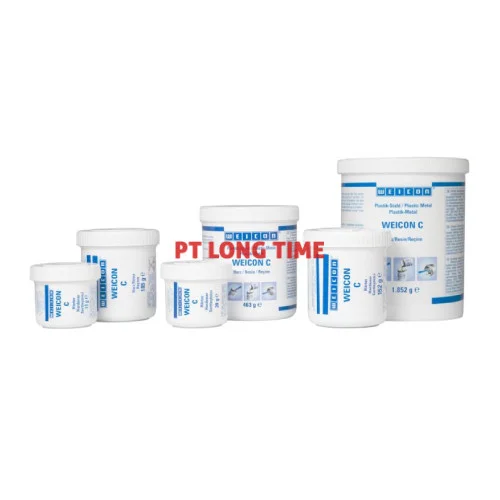

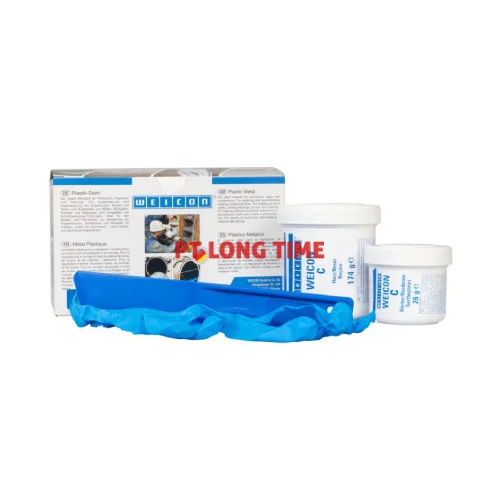

WEICON 10051209 C Aluminium-filled Epoxy Resin 0.2Kg
WEICON C is a temperature-resistant and flowable epoxy resin system especially for industrial use. The adhesive is non-corrosive, anti-magnetic and cures practically without shrinkage. WEICON C is particularly suitable as an adhesive for large-scale applications, for pouring out moulds and for the production of fixing devices and tools (e.g. injection moulds). It can be used in the tool and mould making sector as well as in many other industrial areas subjected to high thermal stress.
Specification
Name
WEICON 10051209 C Aluminium-filled Epoxy Resin 0.2Kg
SKU
10051209
Brand
Condition
New
| Curing | |
|---|---|
| Pot life at 20 Degree C, 500 g batch | 60 min |
| Additional layer after (35% strength) | 4 h |
| Working strength after (80% strength) | 6 h |
| Final strength (100% strength) | 12 h |
| Shrinkage | 0.07 % |
| Mechanical Properties after Curing | |
| Tensile strength (DIN EN ISO 527-2) | 50 MPa |
| Elongation at break (DIN EN ISO 527-2) | 0.9 % |
| E-modulus (tensile) (DIN EN ISO 527-2) | 6400–7500 MPa |
| Compressive strength (DIN EN ISO 604) | 174 MPa |
| E-modulus (pressure) (DIN EN ISO 604) | 6200–6700 MPa |
| Bending strength (DIN EN ISO 178) | 83 MPa |
| Hardness (Shore D) (DIN ISO 7619) | 89 ± 3 |
| Taber Test (DIN ISO 9352, H18, 1 kg, 1000 rotations) | 1.3 g / 0.8 cm³ |
| Lap Shear Strength (DIN EN 1465, 1.5 mm thick) | |
| Steel 1.0338 (sandblasted) | 15 MPa |
| Stainless steel V2A (sandblasted) | 16 MPa |
| Aluminium (sandblasted) | 8 MPa |
| Galvanized steel | 6 MPa |
| Thermal Parameters | |
| Temperature resistance | -80 to +220 Degree C |
| Tg after room temp. cure (DSC) | ~ +58 Degree C |
| Tg after tempering at 120 °C (DSC) | +120 Degree C |
| Heat deflection resistance (DIN EN ISO 75-2) | +60 / +108 Degree C |
| Thermal expansion coefficient (ISO 11359) | 40·10-6 K-1 |
| Thermal conductivity (DIN EN ISO 22007-4) | 0.65 W/m·K |
| Heat capacity (DIN EN ISO 22007-4) | 0.96 J/(g·K) |
| Electrical Parameters | |
| Volume resistance (DIN EN 62631-3-1) | 2.11·1014 m |
| Magnetic | No |
