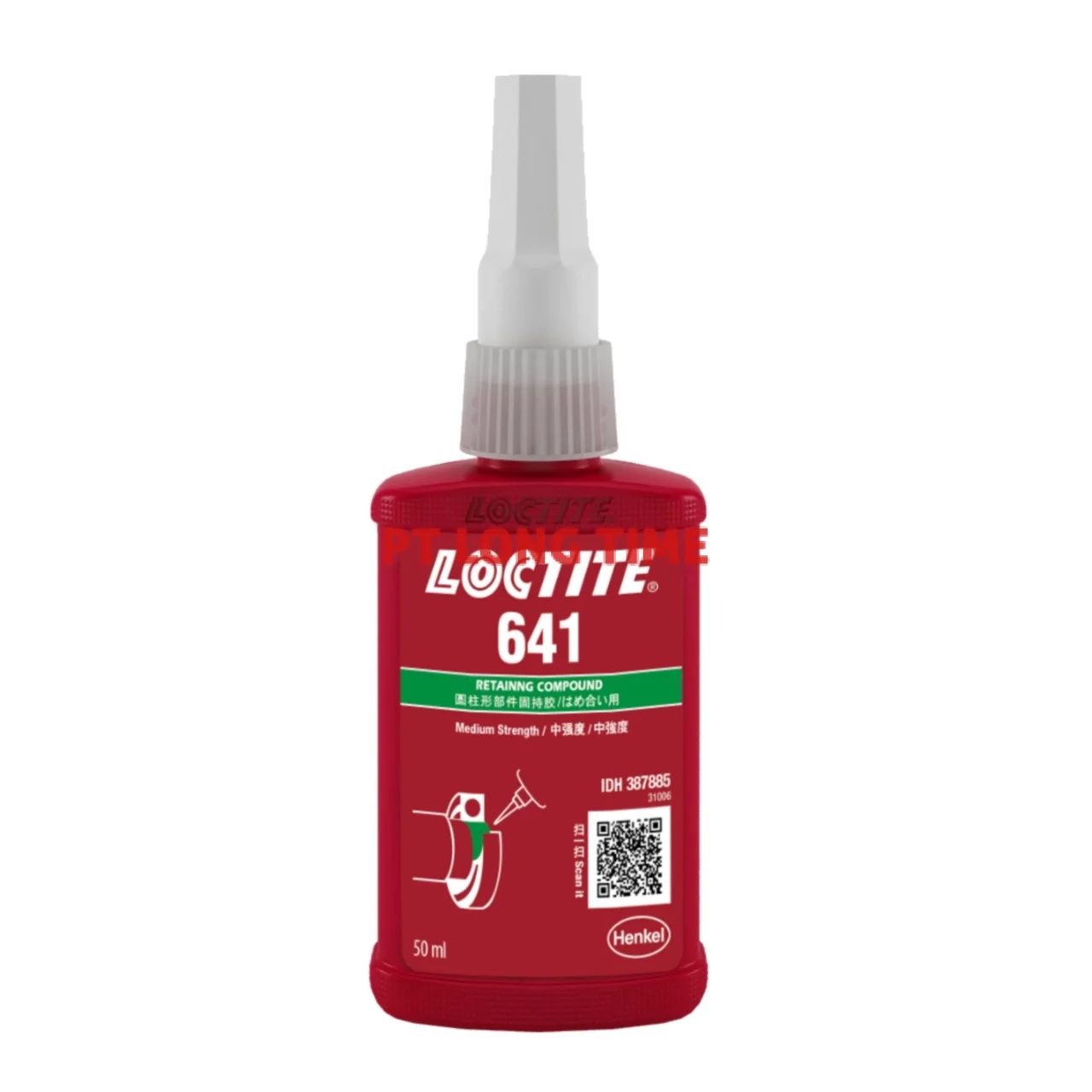

Retaining Compound Medium Strength WEICONLOCK AN 306-41 LOCTITE 641
Specification
Name
Retaining Compound Medium Strength WEICONLOCK AN 306-41 LOCTITE 641
SKU
AN 306-41
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | Yellow | |
| Fluorescent | yes | |
| For thread connections up to | M 20 R ¾“ | |
| Viscosity | 550 nt mPa·s | |
| Gap bridging up to max. | 0.12 mm | |
| Breakaway torque | 12 - 15 Nm | |
| Prevail torque | 17 - 22 Nm | |
| Shear strength Nmm² (DIN 54452) | 8 - 12 N/mm² | |
| Handling strength | 10 - 20 Min. | |
| Final strength | (100 % strength) | 3-6 h |
| Temperature resistance | -60 to +150 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1250 bar |
| M_6x10 | max. | 500 bar |
| M_8x12 | max. | 300 bar |
| M_10x16 | max. | 200 bar |
| LOCTITE SPESIFICATION | |
| Shear Strength, Steel | 12.0 N/mm² (1700.0 psi ) |
| Key Characteristics | Strength: Medium Strength |
| Gap Filling | 0.15mm |
| Substrate | Metal: Steel |
| Operating Temperature | -55.0 - 150.0 °C (-65.0 - 300.0 °F ) |
| Viscosity | 600.0 mPa.s (cP) |
| Fixture Time | 20.0 min. |
| Color | Yellow |
