Structural Acrylic Adhesive WEICON RK-7000 LOCTITE 3295

WEICON Easy-Mix RK-7000 can be used to bond numerous materials such as plastics, metals and ceramics with high tensile, shear and peel strength. It is particularly suitable for structural bondings where high strength connections are required. It is highly viscous and is therefore suitable for processing on vertical surfaces. WEICON RK-7000 is universally applicable and can be used, for example, in plastics technology, in metal construction, in car body and vehicle construction, in mechanical engineering, in electrical engineering, in wood processing or in trade show and exhibition construction.

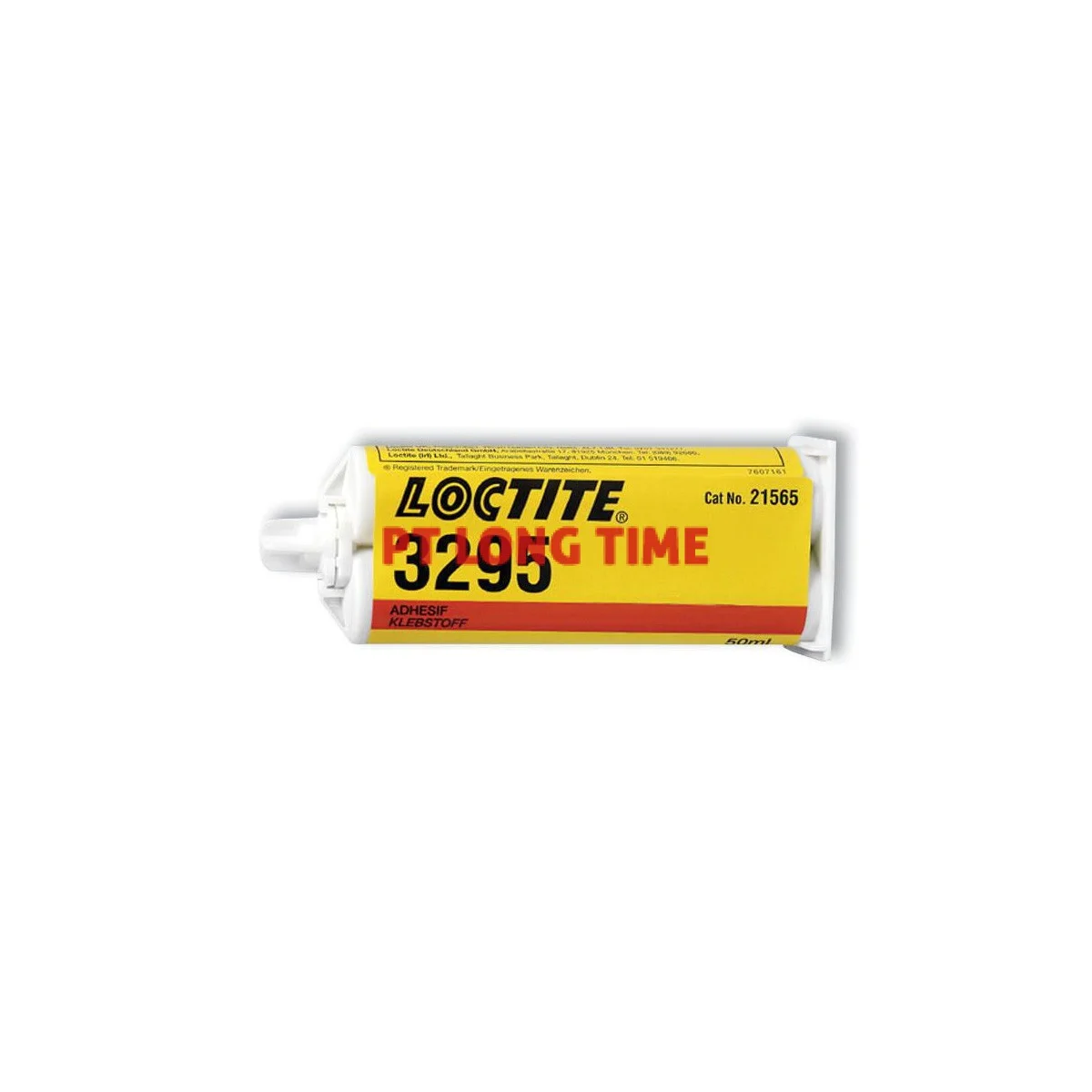

LOCTITE® AA 3295 is a 2-part, green, general purpose structural bonding premix liquid suitable for bonding metals, ceramics and plastics. It has good impact resistance and a service temperature range up to +120°C. Its shear strength is 25 N/mm² and it has a fixture time of 5 - 10 min. It does not require activators.

Name
Structural Acrylic Adhesive WEICON RK-7000 LOCTITE 3295
Brand
Condition
New
WEICON SPESIFICATION
Base Methyl Methacrylate
Texture Viscous
Colour Off-white, Milky
Processing
Processing Procedure Easy-Mix
Processing Temperature +10°C to +40°C
Curing Temperature > +16°C
Mixing Ratio by Weight 1:1
Viscosity of the Mixture 40,000-60,000 mPa·s
Density of the Mixture 0.98-1.02 g/cm³
Gap Bridging Up to max. 5 mm
Curing
Pot Life at 20°C 15 min.
Handling Strength (35% Strength) 40 min.
Working Strength after (50% Strength) 60 min.
Final Strength (100% Strength) 12 h



LOCTITE SPESIFICATION
Fixture time 5.0 - 10.0 min.
Key characteristics Premix
Mix ratio, by volume 1 : 1
Shear strength 25.0 N/mm²
Work life 4.0 min.
Mixed
Color, Mixed Green
Viscosity, Brookfield - RVT, Mixed @ 25.0 degree C Spindle 6, speed 20 rpm 11000.0 - 23000.0 mPa·s (cP)
Resin
Color, Resin Yellow
Specific gravity, Resin @ 25.0 degree C 1.02
Hardener
Color, Hardener Blue
Specific gravity, Hardener @ 25.0 degree C 1.05
