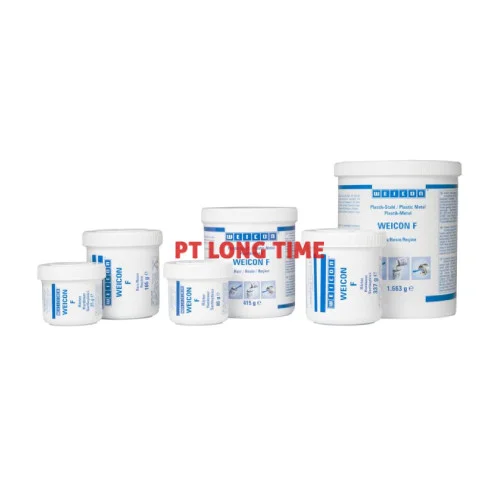

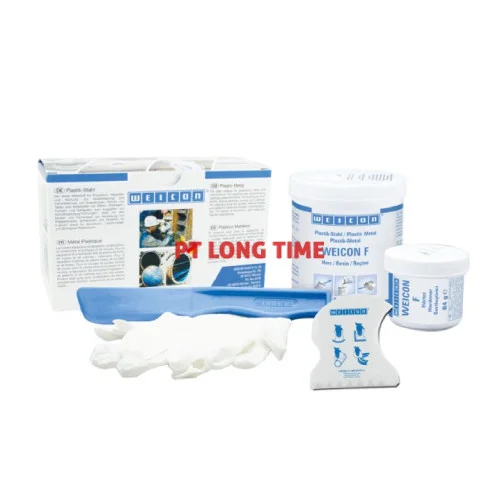

WEICON F 10000039 Aluminium Filled Epoxy Resin (0.5Kg)
WEICON F is particularly suited for applications on components made of aluminium, aluminium alloys, magnesium and other light metals. WEICON F can be used for inexpensive repairs of all types, for filling in blowholes on light metal castings and for the reconstruction of components. The epoxy resin system can be used in tool construction, model and mould making, and in many other industrial applications.
Specification
Name
WEICON F 10000039 Aluminium Filled Epoxy Resin (0.5Kg)
SKU
4024596002411
Brand
Condition
New
| Material Properties (after curing at 24h RT + 4h at 60 °C) | |
|---|---|
| Mechanical Properties | |
| Tensile strength (DIN EN ISO 527-2) | 31 MPa |
| Elongation at break (DIN EN ISO 527-2) | 0.7 % |
| E-modulus (tensile, DIN EN ISO 527-2) | 4400–5000 MPa |
| Compressive strength (DIN EN ISO 604) | 66 MPa |
| Bending strength (DIN EN ISO 178) | 53 MPa |
| Hardness (Shore D, DIN ISO 7619) | 85±3 |
| Adhesive strength (DIN EN ISO 4624) | 14 MPa |
| Taber Test (DIN ISO 9352, H18, 1kg, 1000 rotations) | 1.4 g / 0.8 cm³ |
| Lap shear strength (DIN EN 1465, 1.5 mm thickness) | |
| • Steel 1.0338 sandblasted | 15 MPa |
| • Stainless steel V2A sandblasted | 15 MPa |
| • Aluminium sandblasted | 8 MPa |
| • Galvanized steel | 7 MPa |
| Thermal Properties | |
| Temperature resistance | -35 °C (−4 °F) to +120 °C (+248 °F) |
| Tg after curing at RT (DSC) | ~ +52 °C |
| Tg after tempering at 60 °C (DSC) | +59 °C |
| Heat deflection resistance (DIN EN ISO 75-2) | +51 °C |
| Thermal conductivity (DIN EN ISO 22007-4) | 0.8 W/m·K |
| Heat capacity (DIN EN ISO 22007-4) | 1.02 J/(g·K) |
| Electrical Properties | |
| Resistance (DIN EN 62631-3-1) | 1.41·10¹² Ω·m |
| Magnetic | No |
| Approvals / Guidelines | |
| ISSA Code | 75.509.09/10 |
| IMPA Code | 812921/22 |
| MIL-Spec | Comply with MIL-C-24176 |
