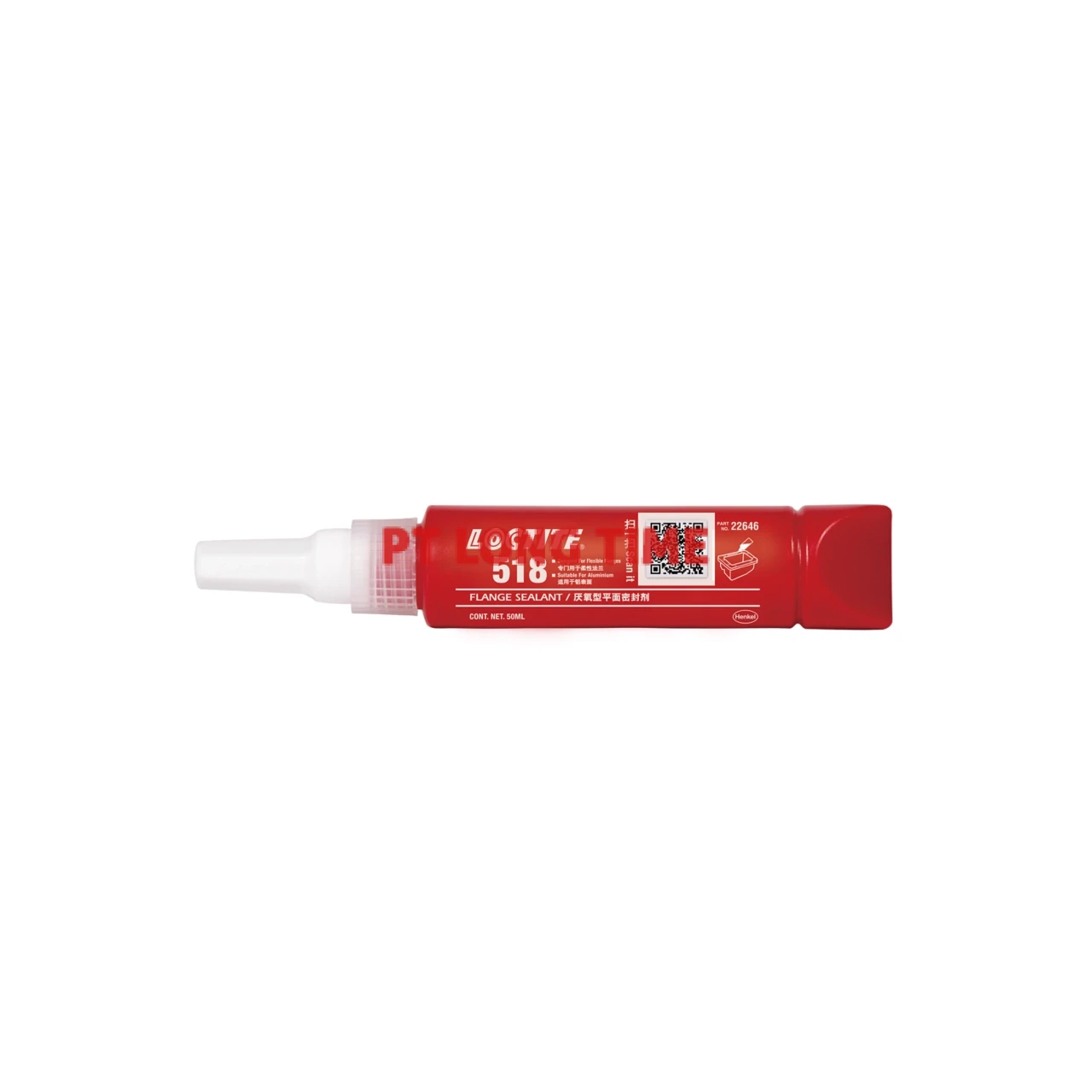

Flange Sealant WEICONLOCK AN 305-18 LOCTITE 518
Specification
Name
Flange Sealant WEICONLOCK AN 305-18 LOCTITE 518
SKU
AN 305-18
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | red | |
| Fluorescent | yes | |
| Viscosity | 80.000 - 500.000 ht mPa·s | |
| Gap bridging up to max. | 0,5 mm | |
| Breakaway torque | 12 - 18 Nm | |
| Prevail torque | 18 - 24 Nm | |
| Shear strength Nmm² (DIN 54452) | 8 - 13 N/mm² | |
| Handling strength | 10 - 20 min | |
| Final strength | (100 % strength) | 3 - 6 h |
| Temperature resistance | -60 to +200 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1500 bar |
| M_6x10 | max. | 1500 bar |
| M_8x12 | max. | 900 bar |
| M_10x16 | max. | 400 bar |
| LOCTITE SPESIFICATION | |
| Application | Rigid Assembly Gasketing, Sealing |
| Specific Gravity, @ 25.0 °C | 1.1 |
| Physical Form | Gel |
| Key Characteristics | Fluorescent, Medium Strength, Instant Low Pressure Sealing, Surface Contamination Resistant, Thixotropic, For machined rigid flanges |
| Application Method | Manual, Dosing System |
| Gap Filling, Unprimed | 0.25mm |
| Substrate | Metal: Aluminum, Metal: Iron - Cast Iron, Metal: Passive Metal, Metal: Steel |
| Operating Temperature | -55.0 - 150.0 °C (-65.0 - 300.0 °F) |
| Technology | Acrylic |
| Drying Type | Anaerobic Drying |
| Viscosity | 750,000.0 mPa·s (cP) |
| Time to Fixture, Steel | 25.0 min. |
| Color | Red |
