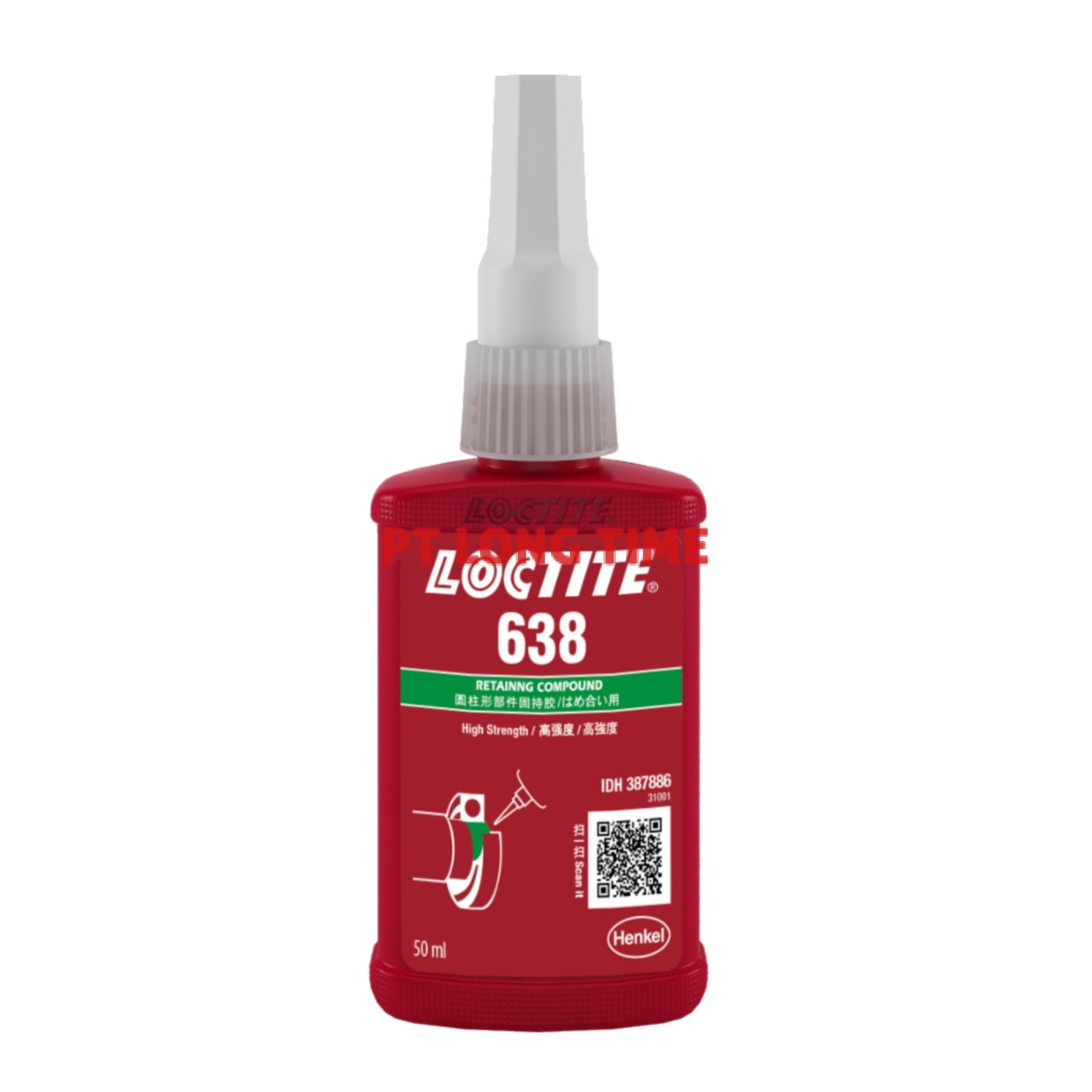

High Strength Adhesive WEICONLOCK AN 306-38 LOCTITE 638
Specification
Name
High Strength Adhesive WEICONLOCK AN 306-38 LOCTITE 638
SKU
AN 306-38
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | green | |
| Fluorescent | yes | |
| For thread connections up to | M 36 | |
| Viscosity | 2.500 mt mPa·s | |
| Gap bridging up to max. | 0,2 mm | |
| Breakaway torque | 35 - 45 Nm | |
| Prevail torque | 50 - 70 Nm | |
| Shear strength Nmm² (DIN 54452) | 25 - 30 N/mm² | |
| Handling strength | 5 min. | |
| Final strength | (100 % strength) | 1-3 h |
| Temperature resistance | -60 to +150 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1500 bar |
| M_6x10 | max. | 900 bar |
| M_8x12 | max. | 700 bar |
| M_10x16 | max. | 400 bar |
| LOCTITE SPESIFICATION | |
| Application | Retaining, For Narrow Cylinder Sections, For Slip Fitted Parts |
| Physical Form | Liquid |
| Shear Strength, Steel | 31.0 N/mm² (4500.0 psi ) |
| Key Characteristics | Fluorescent, Strength: High Strength, Temperature Resistance, Oil Tolerance, Viscosity: High Viscosity |
| Application Method | Manual, Dosing system |
| Gap Filling | 0.15 - 0.25mm |
| Institutional Approval/Specifications | DVGW (EN 751-1): NG-5146AR0619, NSF P1 Reg No: 123010, WRAS (BS 6920): 0511518 |
| Substrate | Metal: Steel |
| Operating Temperature | -55.0 - 180.0 °C (-65.0 - 355.0 °F ) |
| Technology | Acrylic |
| Drying Type | Anaerobic Drying |
| Viscosity | 2500.0 mPa.s (cP) |
| Fixture Time | 4.0 min. |
| Color | Green |
