Epoxy Adhesive for Production Processes WEICON Easy-Mix N 50 LOCTITE 9481

Add Enquiry

SKU N 50

Condition New

Brand Weicon

WEICON Easy-Mix N 50 can be used on numerous materials such as metal, plastic, fibre-reinforced materials, ceramics, glass, stone and wood. N 50 is suitable for manufacturing processes with assembly and positioning carried out at different times. For the processing of the Easy-Mix product, the Easy-Mix D 50 dispenser is required.

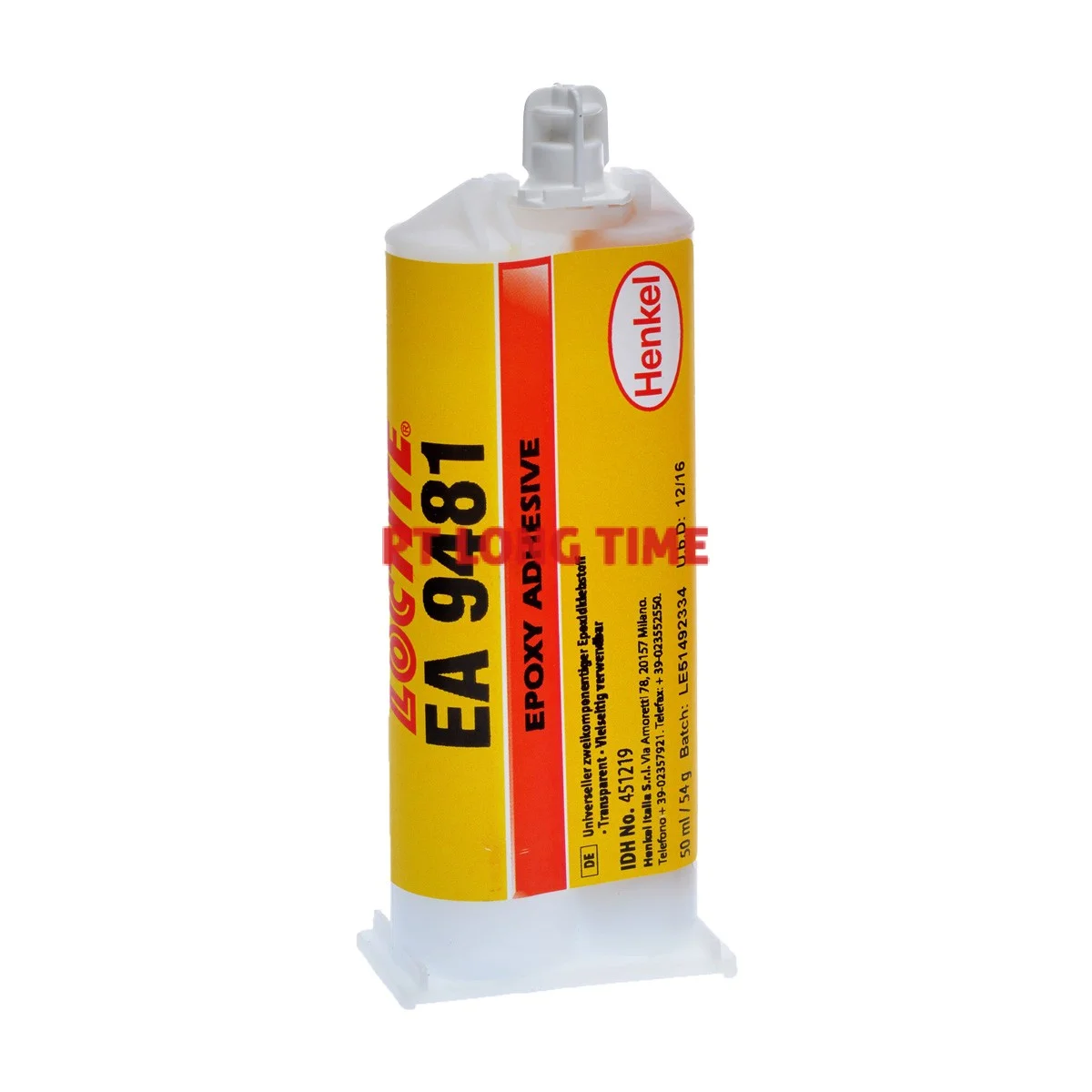

LOCTITE® EA 9481 is a general purpose, 2-part epoxy adhesive in a 50 ml dual cartridge, suitable for a wide variety of substrates. It is ideal for bonding fibre optics and printed circuit boards. Designed for use in component assembly, appliances, electronics and fibre optics and general industrial repairs where clear bond lines and long working life are required.

Name

Epoxy Adhesive for Production Processes WEICON Easy-Mix N 50 LOCTITE 9481

SKU

N 50

Brand

Weicon

Condition

New

WEICON SPESIFICATION
Base		Epoxy resin, nonfilled
Texture		Viscous
Colour		Pale yellow, clear
Processing
Processing temperature		+10°C to +40°C
Curing temperature		+10°C - +40°C
Mixing ratio by weight		1:1
Viscosity of the mixture	at +20 °C	7,500 mPa·s
Density of the mixture		1.07 g/cm³
Gap bridging		Up to max. 2 mm
Curing
Pot life	at 20 °C, 10 ml batch	45 min.
Handling strength	(35 % strength)	120 min.
Working strength after	(50 % strength)	24 h
Final strength	(100 % strength)	72 h
Shrinkage		2.0 %

LOCTITE SPESIFICATION
Fixture time	5.0 hr.
Mix ratio, by volume	2.7 : 1
Physical form	Paste
Shear strength	19.0 N/mm²
Mixed
Color, Mixed	Clear
Pot life, Mixed @ 25.0 degree C 200 g mass	20.0 - 70.0 min.
Resin
Color, Resin	White
Viscosity, Brookfield - RVT, Resin @ 25.0 degree C Spindle 7, speed 2.5 rpm	450000.0 - 900000.0 mPa·s (cP)
Viscosity, Brookfield - RVT, Resin @ 25.0 degree C Spindle 7, speed 20 rpm	75000.0 - 105000.0 mPa·s (cP)
Hardener
Color, Hardener	Light Yellow
Viscosity, Brookfield - RVT, Hardener @ 25.0 degree C Spindle 5, speed 5 rpm	30000.0 - 80000.0 mPa·s (cP)
