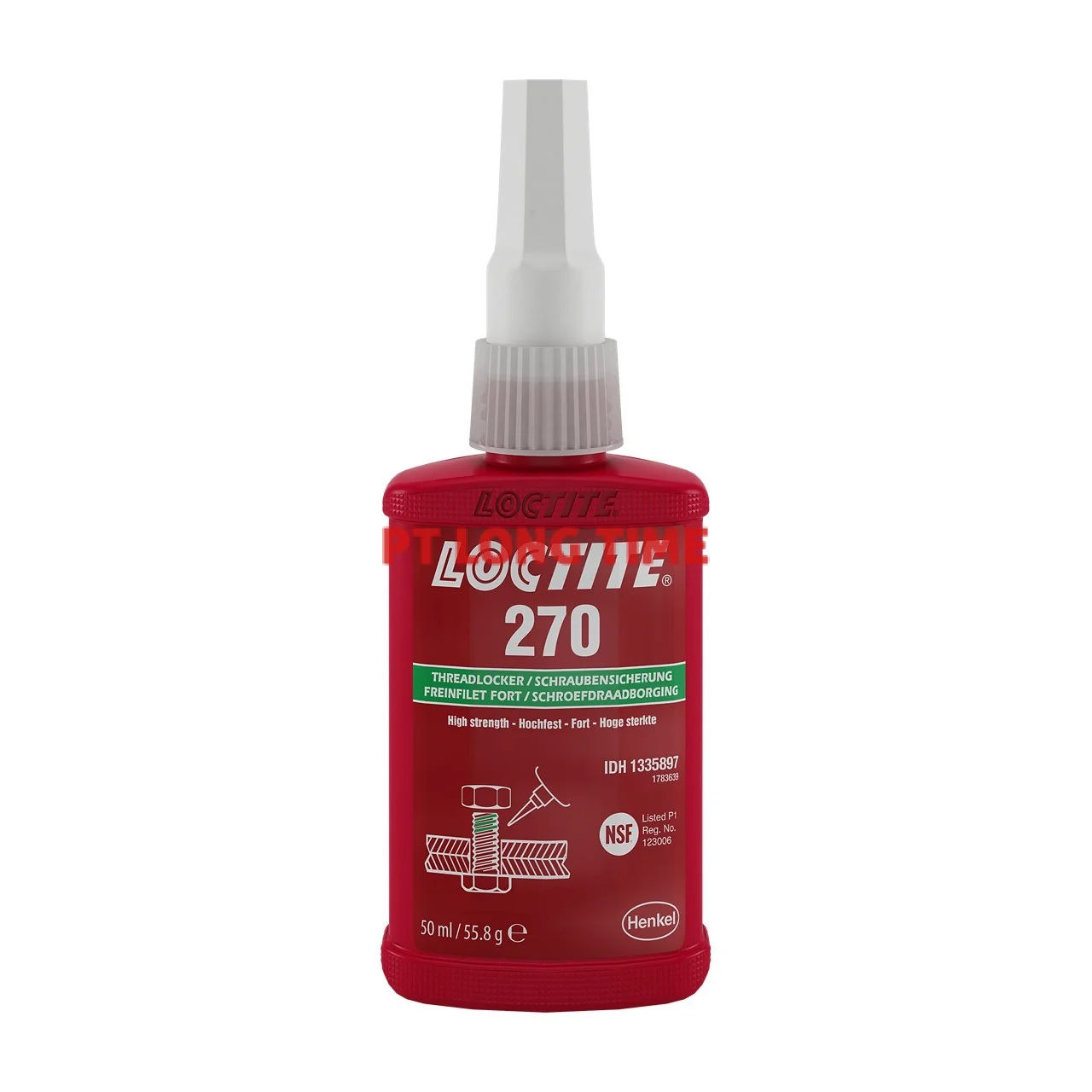

Threadlocker High Strength WEICONLOCK AN 302-70 LOCTITE 270
Specification
Name
Threadlocker High Strength WEICONLOCK AN 302-70 LOCTITE 270
SKU
AN 302-70
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | green | |
| Fluorescent | yes | |
| For thread connections up to | M 20 R ¾" | |
| Viscosity | 500 nt mPa·s | |
| Gap bridging up to max. | 0,15 mm | |
| Breakaway torque | 28 - 35 Nm | |
| Prevail torque | 50 - 65 Nm | |
| Shear strength Nmm² (DIN 54452) | 15 - 20 N/mm² | |
| Handling strength | 10 - 20 min. | |
| Final strength | (100 % strength) | 3-6 h |
| Temperature resistance | -60 to +200 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1200 bar |
| M_6x10 | max. | 700 bar |
| M_8x12 | max. | 500 bar |
| M_10x16 | max. | 300 bar |
| LOCTITE SPESIFICATION | |
| Agency Approvals / Certificates / Specifications | NSF P1 Reg No: 123006 |
| Application Temperature | -55.0 - 180.0 °C (-65.0 - 360.0 °F) |
| Applications | Threadlocking |
| Breakaway Torque, M10 Steel Nuts/Bolts | 33.0 N·m (290.0 in./lb.) |
| Color | Green |
| Fixture Time | 10.0 min. |
| Key Characteristics | General Purpose, High Strength |
| Prevail Torque, M10 Steel Nuts/Bolts | 33.0 N·m (290.0 in./lb.) |
| Recommended for use with | Metal: Brass, Metal: Steel, Metal: Steel - Stainless Steel |
| Viscosity, 20 RPM | 500.0 mPa·s (cP) |
