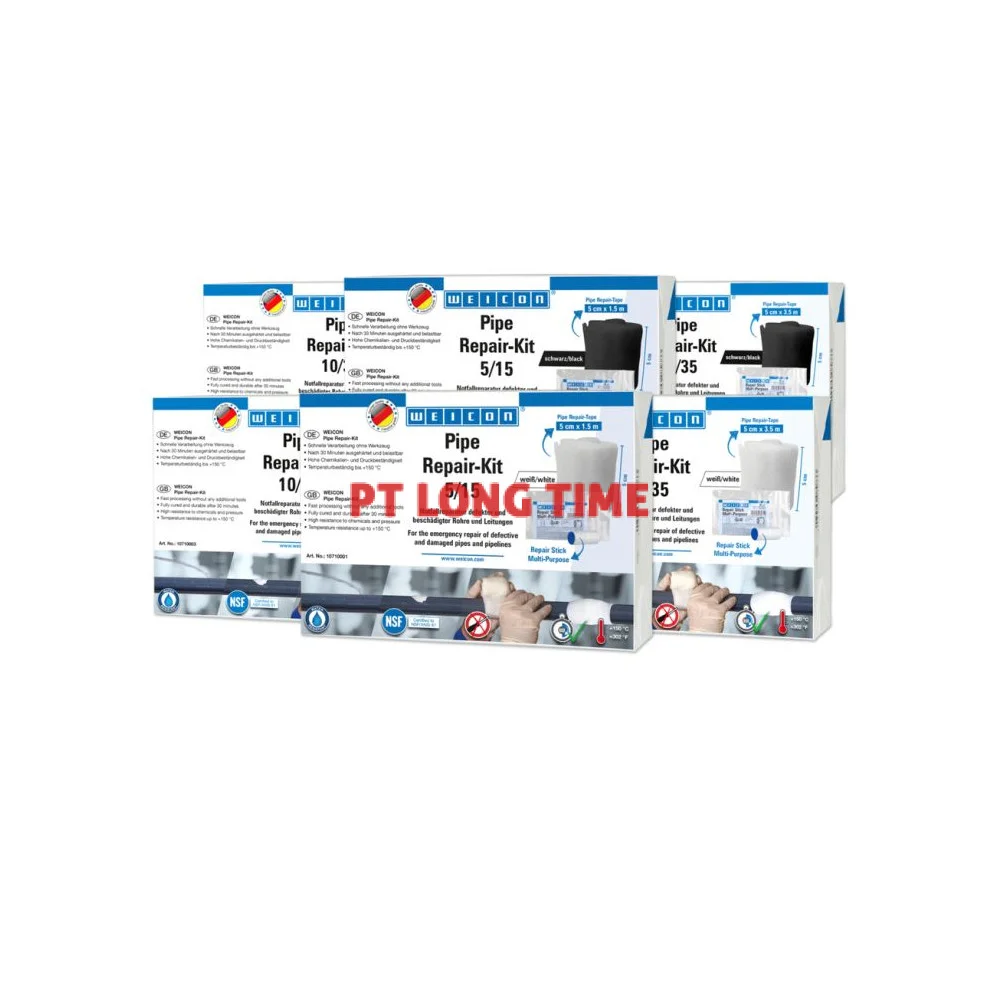

WEICON 10055738 Pipe Repair-Kit 5CM x 3.5M for Emergency Repairs on Damaged Pipes and Lines

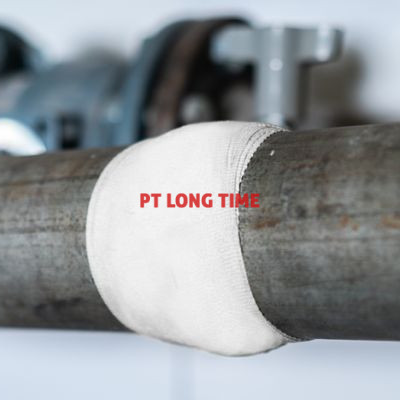

The set is ideal for the emergency repair of defective and damaged pipes and pipelines. It comprises one WEICON Repair Stick Multi-Purpose, a special repair tape made of fibreglass-reinforced plastic, assembly instructions and one pair of protective gloves. The repair tape is soaked with a special resin and is activated by contact with water. The Pipe Repair-Kit can be processed without additional tools and provides reliable long-term sealing of cracks and leaks. It is very easy and fast to apply and shows excellent adhesive properties, high resistance to pressure and chemicals as well as high temperature resistance up to 150 Degree C. Within 30 minutes, the tape is fully cured and hard-wearing. Due to the fabric properties of the tape, the resulting high flexibility, and the easy appliaction, the Repair-Kit is especially suitabel for use on pipe bends, T-pieces, or areas difficult to reach. It can be used on many different surfaces, such as stainless steel, aluminium, copper, PVC, many plastics, fibreglass, concrete, ceramic and rubber.

Set for the emergency repair of defective and damaged pipes and pipelines | drinking water approval

Specification
Name
WEICON 10055738 Pipe Repair-Kit 5CM x 3.5M for Emergency Repairs on Damaged Pipes and Lines
SKU
10055738
Brand
Condition
New
Attribute Tape Stick
Basis Polyurethane Epoxy resin
Texture - Modelling compound
Filler - Mineral
Processing Temperature - +15 to +40 Degree C
Component Temperature - >3 Degree C above dew point
Relative Air Humidity - <85%
Mixing Ratio by Volume - 1:1
Density of the Mixture - 1.9 g/cm³
Max. Gap Bridging - 15 mm
Pot Life at 20°C 3-5 min ~4 min (10 g batch)
Handling/Working Strength 7-10 min (35% strength) 60 min (80% strength)
Final Strength 30 min (100% strength) 24 h (100% strength)
Tensile Strength 35 MPa -
Compressive Strength 30 bar 55 MPa (DIN EN ISO 604)
Hardness (Shore D) 70 (ASTM D 1706) 80±3 (DIN ISO 7619)
Adhesive Strength - 8 MPa (DIN EN ISO 4624)
Shrinkage - <1.0%
Temperature Resistance up to +150 Degree C -50 to +120 Degree C (max +150 Degree C)
Thermal Conductivity - 0.4 W/m.K (DIN EN ISO 22007-4)
Electrical Resistance - ~5.10¹¹ Omega.m (DIN EN 62631-3-1)
Dielectric Strength - 3.0 kV/mm (Test 1071)
Magnetic - No
