Retaining Cylindrical Assemblies WEICONLOCK® AN 306-03 LOCTITE 603
Specification
Name
Retaining Cylindrical Assemblies WEICONLOCK® AN 306-03 LOCTITE 603
SKU
AN 306-03
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Color | Green | |
| Fluorescent | Yes | |
| For Thread Connections up to | M 12 | |
| Viscosity | 125 nt mPa·s | |
| Gap Bridging | Up to max. 0.1 mm | |
| Breakaway Torque | 25 - 30 Nm | |
| Prevail Torque | 50 - 60 Nm | |
| Shear Strength (Nmm²) | 15 - 18 N/mm² (DIN 54452) | |
| Handling Strength | 10 - 20 Min. | |
| Final Strength | (100% Strength) | 2-4 Hrs. |
| Temperature Resistance | -60°C to +150 degree C | |
| Compressive Strength (Free Cutting Steel / Grub Screw = 8.8) | ||
| M 3x6 | max. | 1500 bar |
| M 4x6 | max. | 1400 bar |
| M 5x8 | max. | 1200 bar |
| M 6x10 | max. | 1000 bar |
| M 8x12 | max. | 600 bar |
| M 10x16 | max. | 500 bar |

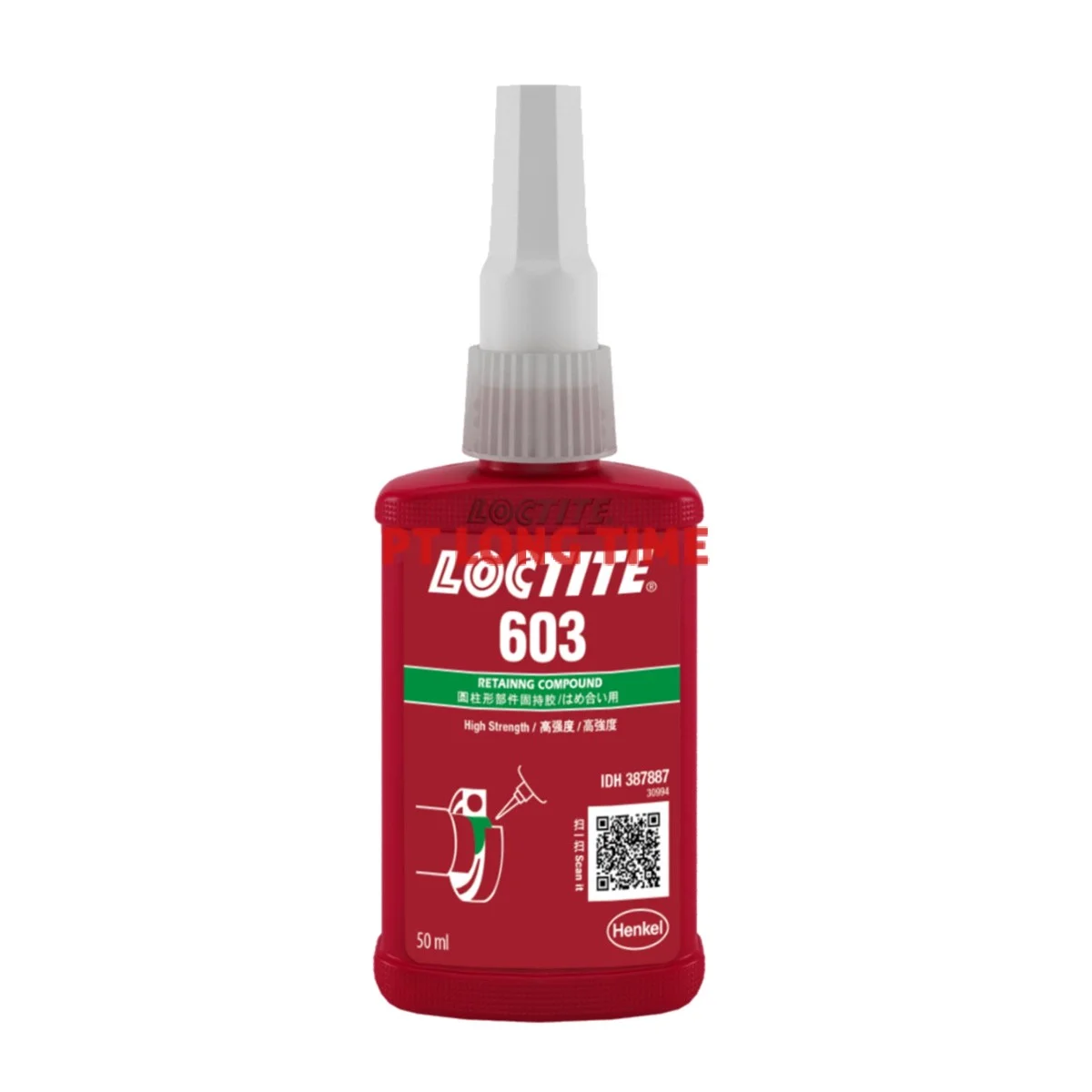

| LOCTITE SPESIFICATION | |
| Shear Strength, Steel | 26.0 N/mm² (3770.0 psi) |
| Key Characteristics | Oil Tolerance, Viscosity: Low Viscosity |
| Gap Filling | 0.15 mm |
| Agency Approval/Specification | NSF, WRAS |
| Substrate | Metal: Steel |
| Operating Temperature | -55.0 - 150.0 degree C (-65.0 - 300.0 degree F) |
| Viscosity | 125.0 mPa·s (cP) |
| Fixture Time | 10.0 min. |
| Color | Green |
