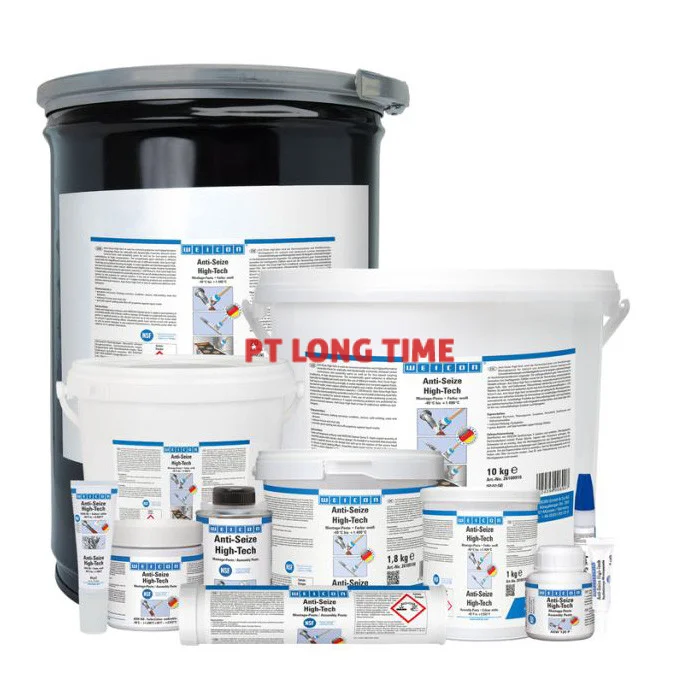

WEICON 10000193 Anti-Seize High-Tech Assembly Paste for Stainles Steel 120Gr
The assembly paste WEICON Anti Seize High-Tech is high-temperature-resistant, has excellent separating characteristics, is metal-free, neutral to materials and has an NSF registration. It is particularly suitable when metal-containing pastes can cause electrolytic reactions, when nickel-containing products should or may not be used due to health reasons and when dark metal-containing products should or may not be used for visual reasons.
Specification
Name
WEICON 10000193 Anti-Seize High-Tech Assembly Paste for Stainles Steel 120Gr
SKU
10000193
Brand
Condition
New
| Base | Medicinal white oil |
| Colour | white |
| Density (+20°C) DIN 51757 | 1.42 g/cm3 |
| Silicone-free | yes |
| Four ball weld test property load DIN 51350 | 3600 N |
| Four ball weld test weld load DIN 51350 | 3800 N |
| Four ball weld test calotte value DIN 51350 (1min/1000N) | 0.7 mm |
| Cone penetration DIN ISO 2137 | 310 - 340 1/10 mm |
| Water resistance DIN 51807 | 1 - 90 |
| Heat capacity DIN EN ISO 22007-4 | 1.574 J/(g·K) |
| Thermal conductivity | 0.675 W/m·K |
| Dielectric strength DIN EN 60243-1 (20°C) | 6.3 kV/mm |
| Salt spray test DIN EN ISO 9227 | > 170 h |
| Resistance DIN EN 62631-3-1 | 1.0 x 10^15 Ohm·cm |
| Sulphur content DIN 51400 | < 0.1 % |
| Compressive strength | 230 MPa |
| Temperature conductivity | 0.302 mm2/s |
| Temperature resistance | -40 to +1400 Degree C |
