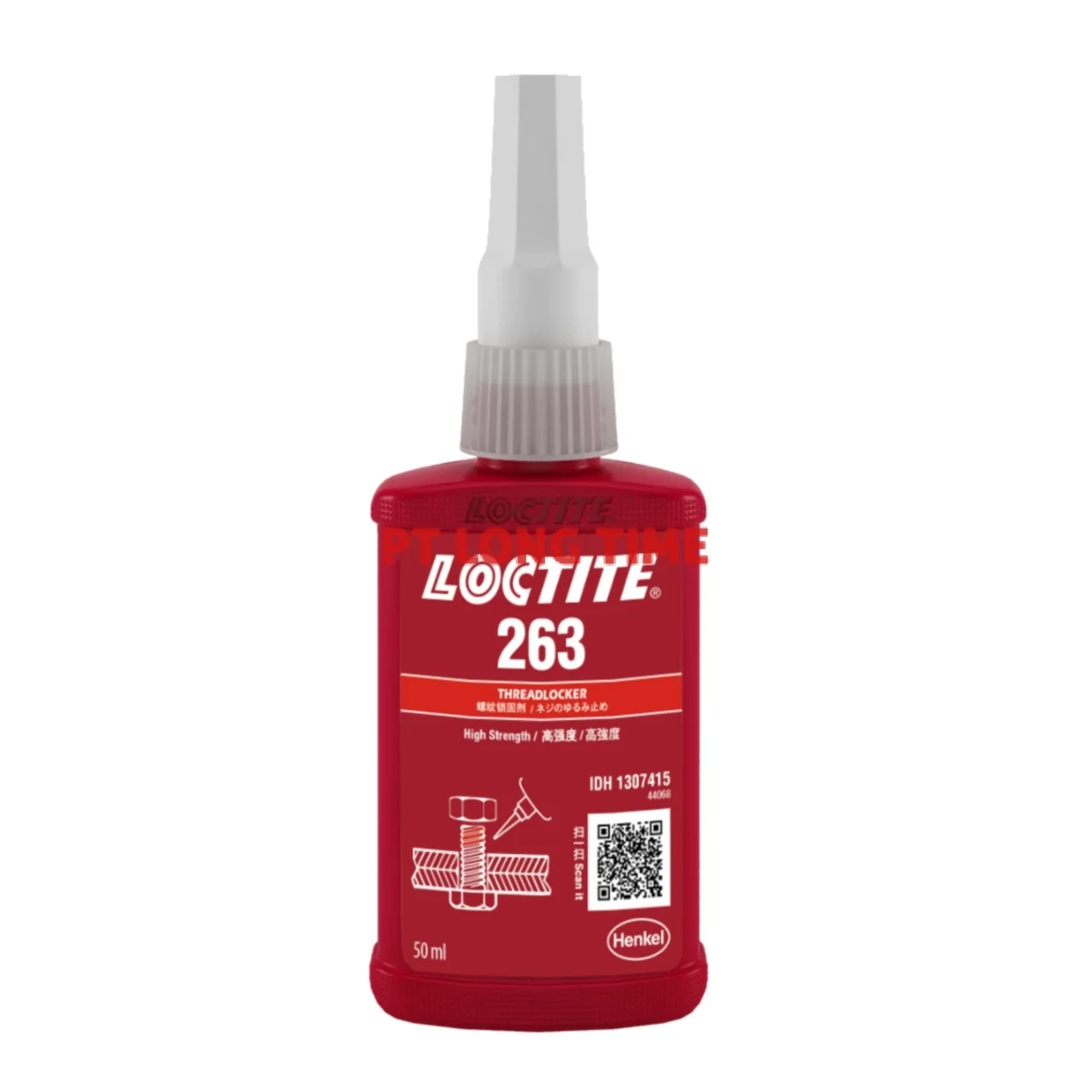

Threadlocker Strong WEICONLOCK AN 302-62 LOCTITE 263
Specification
Name
Threadlocker Strong WEICONLOCK AN 302-62 LOCTITE 263
SKU
AN 302-62
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | red | |
| Fluorescent | no | |
| For thread connections up to | M 36 | |
| Viscosity | 1.500 - 6.500 mt mPa·s | |
| Gap bridging up to max. | 0,25 mm | |
| Breakaway torque | 20 - 25 Nm | |
| Prevail torque | 40 - 55 Nm | |
| Shear strength Nmm² (DIN 54452) | 10 - 15 N/mm² | |
| Handling strength | 10 - 20 min. | |
| Final strength | (100 % strength) | 3-6 h |
| Temperature resistance | -60 to +150 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1500 bar |
| M_6x10 | max. | 1500 bar |
| M_8x12 | max. | 600 bar |
| M_10x16 | max. | 100 bar |
| LOCTITE SPESIFICATION | |
| Agency Approvals / Specifications | CFIA Listed, NSF/ANSI 61 |
| Application Method | Dispense Gun, Pressure |
| Applications | Thread Sealing, Threadlocking |
| Color | Red |
| Cure Type | Anaerobic Cure |
| Fixture Time | 10 min. |
| Fixture Time Temperature | 50 °F |
| Full Cure Temperature | 71 °F |
| Full Cure Time | 24 hr. |
| Key Characteristics | Corrosion Inhibiting, Disassembly: Disassembly with Heat, Fluorescent, General Purpose, Oil Tolerant, Primerless, Strength: High Strength |
| Number of Components | 1 Part |
| Physical Form | Liquid |
| Specific Gravity | 1.1 g/l |
| Specific Gravity Temperature | 77 °F |
| Substrates | Metal |
| Technology | Acrylic |
| Temperature | -65 - 360 °F |
| Torque Break on M10 Steel | 290 in./lb. |
| Torque Prevail on M10 Steel | 290 in./lb. |
| Viscosity | 400 - 600 mPa.s (cP) Brookfield |
| Viscosity Temperature | 77 °F |
