Epoxy Adhesive for Production Processes WEICON Easy-Mix N 50 LOCTITE 9489
WEICON Easy-Mix N 50 can be used on numerous materials such as metal, plastic, fibre-reinforced materials, ceramics, glass, stone and wood. N 50 is suitable for manufacturing processes with assembly and positioning carried out at different times. For the processing of the Easy-Mix product, the Easy-Mix D 50 dispenser is required.

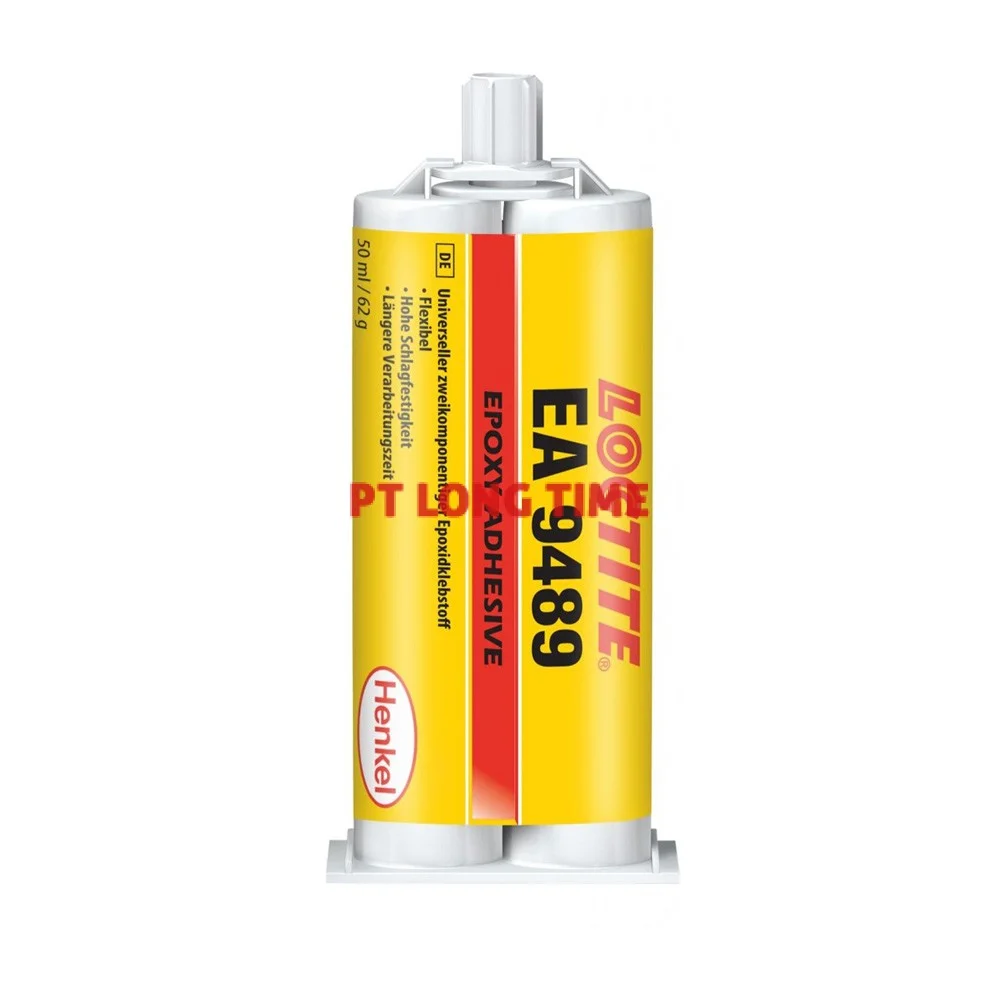

LOCTITE® EA 9489 is a 2-part, grey epoxy adhesive that is formulated for an extended working life of 60 -120 min, thus allowing more time to adjust parts during assembly. This toughened product can also be used for repairing strain gauges, sealing seams on fiberglass components, repairing printed circuit boards, bonding stainless steel inserts, and rubber hose to steel tubing.
Specification
Name
Epoxy Adhesive for Production Processes WEICON Easy-Mix N 50 LOCTITE 9489
Brand
Ships from
Batam, Indonesia
| WEICON SPESIFICATION | ||
| Base | Epoxy resin, nonfilled | |
| Texture | Viscous | |
| Colour | Pale yellow, clear | |
| Processing | ||
| Processing temperature | +10°C to +40°C | |
| Curing temperature | +10°C - +40°C | |
| Mixing ratio by weight | 1:1 | |
| Viscosity of the mixture | at +20 °C | 7,500 mPa·s |
| Density of the mixture | 1.07 g/cm³ | |
| Gap bridging | Up to max. 2 mm | |
| Curing | ||
| Pot life | at 20 °C, 10 ml batch | 45 min. |
| Handling strength | (35 % strength) | 120 min. |
| Working strength after | (50 % strength) | 24 h |
| Final strength | (100 % strength) | 72 h |
| Shrinkage | 2.0 % | |
| LOCTITE SPESIFICATION | |
| Fixture time | 300.0 min. |
| Mix ratio, by volume | 1 : 1 |
| Mix ratio, by weight | 100 : 85 |
| Peel strength, Mild Steel (grit blasted) | 2.2 N/mm |
| Mixed | |
| Color, Mixed | Gray |
| Pot life, Mixed @ 25.0 °C 200 g mass | 60.0 - 110.0 min. |
| Resin | |
| Color, Resin | Beige |
| Viscosity, Brookfield - RVT, Resin @ 25.0 °C Spindle 7, speed 10 rpm | 60000.0 - 175000.0 mPa·s (cP) |
| Viscosity, Brookfield - RVT, Resin @ 25.0 °C Spindle 7, speed 5 rpm | 35000.0 - 135000.0 mPa·s (cP) |
| Hardener | |
| Color, Hardener | Gray |
| Viscosity, Brookfield - RVT, Hardener @ 25.0 °C Spindle 6, speed 10 rpm | 20000.0 - 45000.0 mPa·s (cP) |
| Viscosity, DIN 54453 Hardener @ 25.0 °C Shear Rate 10 s-¹ | 16000.0 mPa·s (cP) |
