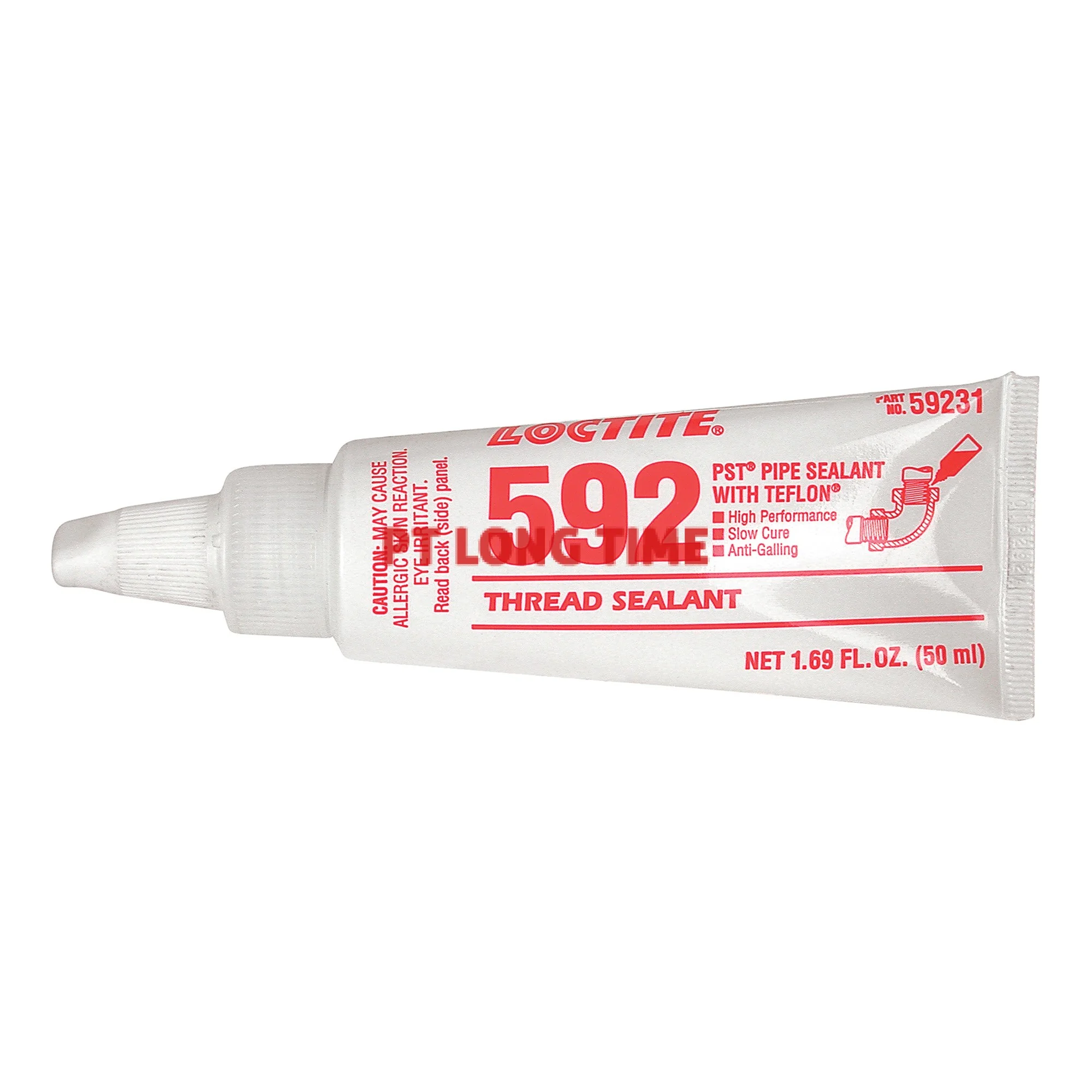

Pipe and Thread Sealing Slow Cure WEICONLOCK AN 305-11 LOCTITE 592
Higher viscosity, medium strength and disassembly with normal tools
Specification
Name
Pipe and Thread Sealing Slow Cure WEICONLOCK AN 305-11 LOCTITE 592
SKU
AN 305-11
Brand
Ships from
Batam, Indonesia
| Colour | white | |
| Fluorescent | no | |
| For thread connections up to | M 80 R 3" | |
| Viscosity | 17.000 - 50.000 ht mPa·s | |
| Gap bridging up to max. | 0,4 mm | |
| Breakaway torque | 7 - 10 Nm | |
| Prevail torque | 2 - 4 Nm | |
| Shear strength Nmm² (DIN 54452) | 4 - 6 N/mm² | |
| Handling strength | 20 - 40 min | |
| Final strength | (100 % strength) | 5-10 h |
| Temperature resistance | -60 to +150 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1500 bar |
| M_6x10 | max. | 1500 bar |
| M_8x12 | max. | 600 bar |
| M_10x16 | max. | 200 bar |
| LOCTITE SPESIFICATION | |
| Application | Pipe Sealing, Thread Sealing |
| Physical Form | Pasta |
| Key Characteristics | Removal: Easy to Remove, Rust Inhibition, Temperature: High Temperature |
| Application Method | Paintbrush |
| Part Number | 1 Part |
| Substrate | Metal |
| Technology | Acrylic |
| Drying Type | Anaerobic Drying |
| Viscosity, Brookfield - RVF, @ 25.0 degree C Spindle 7, speed 2 rpm | 200000.0 - 500000.0 mPa.s (cP) |
| Color | White: Off White |
