RUD VWBG-V-1.3t-M16 Load Ring Metric Thread
- Rotating 360°, pivoting 230°
- Optical markings for easy determination for withdraw from service
- Ball bearing
Specification
Name
RUD VWBG-V-1.3t-M16 Load Ring Metric Thread
SKU
VWBG-V-1.3t-M16
Brand
Condition
New

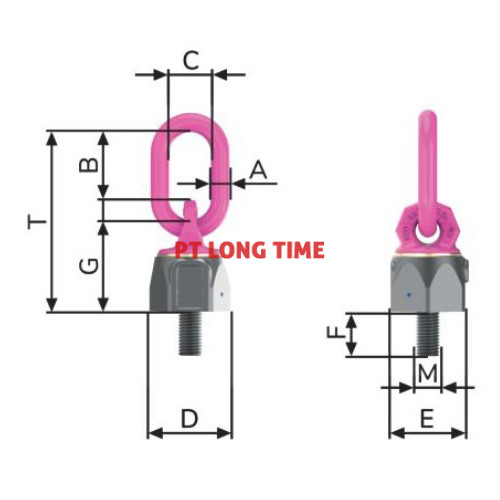

| Attribute | Value (Metric) | Value (Imperial) |
|---|---|---|
| Weight | 0.69 kg | 1.52 lbs |
| Nominal WLL | 1300 kg | 2860 lbs |
| T | 114 mm | 4-1/2" |
| A | 13 mm | 1/2" |
| B | 46 mm | 1-13/16" |
| C | 38 mm | 1-1/2" |
| D | 48 mm | 1-7/8" |
| E | 41 mm | 1-5/8" |
| F | 25 mm | 63/64" |
| G | 56 mm | 2-3/16" |
| M | M16 mm | M16 |
