Name

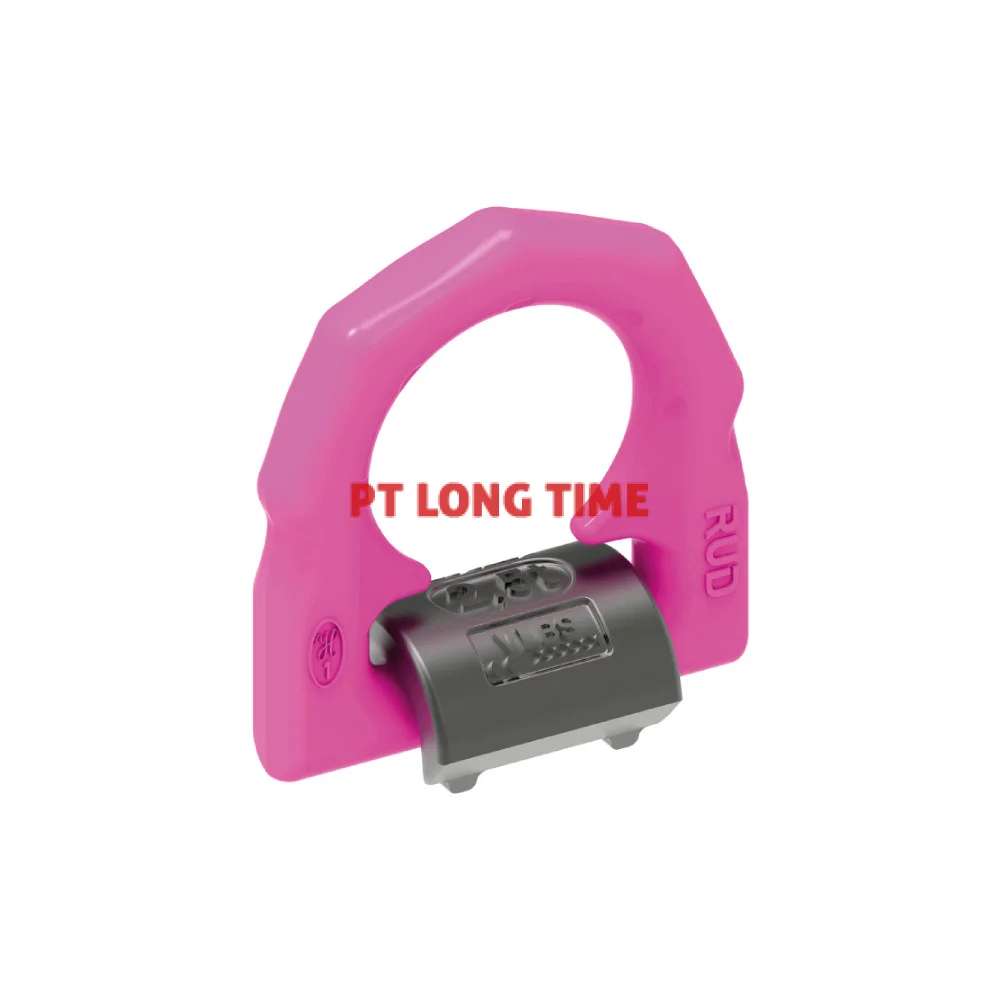

RUD VLBS-U-6.7t Load Ring for Welding with Spring
SKU
VLBS-U-6.7t
Brand
Condition
New

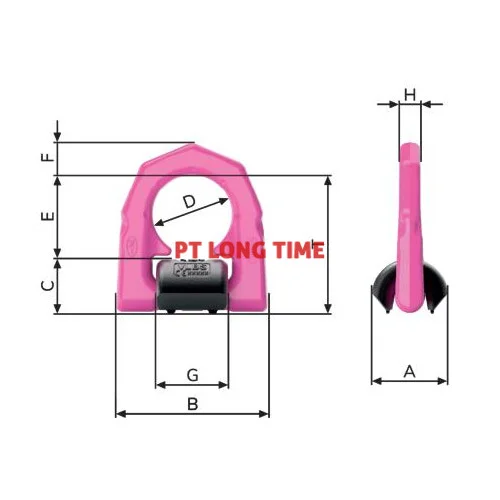

| Attribute | Value | Value |
|---|---|---|
| weight | 1.89 kg | 4.17 lbs |
| Nominal WLL | 6700 kg | 14770 lbs |
| T | 117 mm | 4-5/8" |
| A | 61 mm | 2-13/32" |
| B | 115 mm | 4-1/2" |
| C | 44 mm | 1-3/4" |
| D | 67 mm | 2-5/8" |
| E | 73 mm | 2-7/8" |
| F | 24 mm | 15/16" |
| G | 60 mm | 2-3/8" |
| H | 22,5 mm | 7/8" |
- Suspension ring pivots 180°
- Suspension ring & weld-on-block of the VLBS-U are undetachable
- Suspension ring can be angled into position (VLBS-U)
