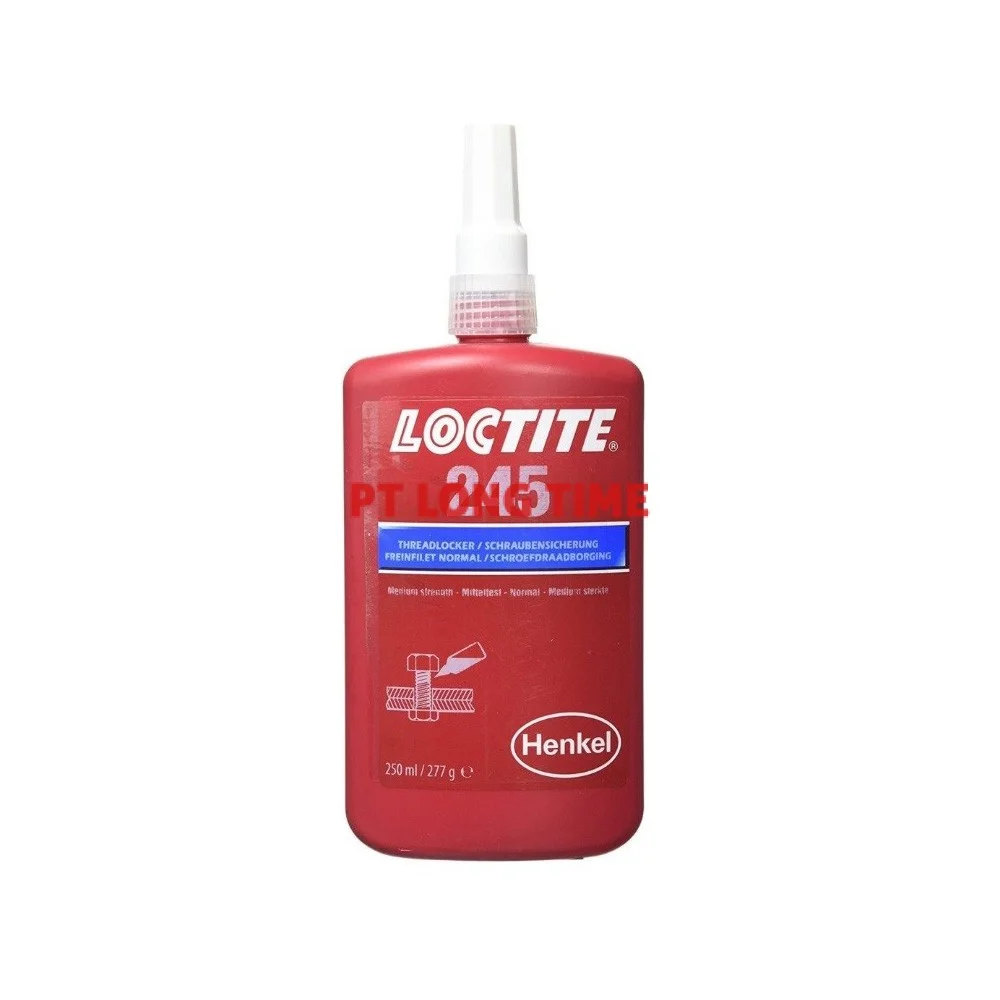

Pipe and Thread Sealing WEICONLOCK AN 302-45 LOCTITE 245
Specification
Name
Pipe and Thread Sealing WEICONLOCK AN 302-45 LOCTITE 245
SKU
AN 302-45
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | Blue | |
| Fluorescent | Yes | |
| For Thread Connections | Up to M 80 R 3" | |
| Viscosity | 6,000 - 30,000 mt mPa·s | |
| Gap Bridging up to max. | 0.3 mm | |
| Breakaway Torque | 10 - 15 Nm | |
| Prevail Torque | 12 - 18 Nm | |
| Shear Strength Nmm² | (DIN 54452) | 8 - 12 N/mm² |
| Handling Strength | 15 - 30 min. | |
| Final Strength | (100% strength) | 3-6 h |
| Temperature Resistance | -60°C to +150°C | |
| Compressive Strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | Max. | 1500 bar |
| M_4x6 | Max. | 1500 bar |
| M_5x8 | Max. | 1500 bar |
| M_6x10 | Max. | 1500 bar |
| M_8x12 | Max. | 1500 bar |
| M_10x16 | Max. | 400 bar |
| LOCTITE SPESIFICATION | |
| Chemical basis / base | Methacrylate |
| Color | Blue |
| Fixture time | 12.0 - 240.0 min. |
| Key characteristics | Thixotropic |
| Recommended for use with | Metal: Brass, Metal: Steel, Metal: Steel -Stainless Steel |
| Viscosity, Brookfield - RVT, @ 25.0 degree C Spindle 5, speed 2.5 rpm | 5600.0 - 10000.0 mPas (cP) |
| Viscosity, EN 12092 - MV, @ 25.0 degree C Shear Rate 129 s | 17500.0 - 52500.0 mPas (cP) |
