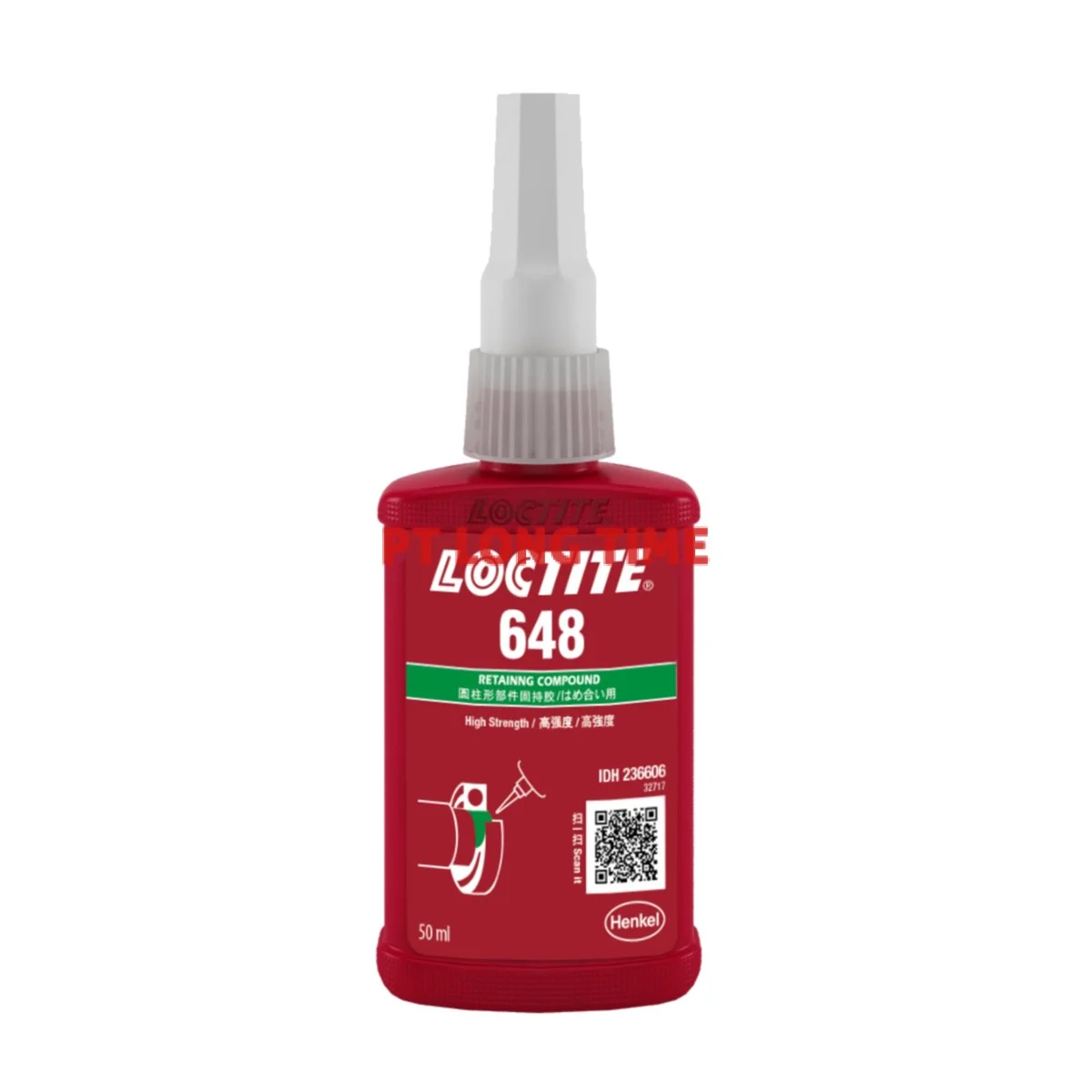

Retaining Cylindrical Assemblies WEICONLOCK® AN 306-48 LOCTITE 648
Specification
Name
Retaining Cylindrical Assemblies WEICONLOCK® AN 306-48 LOCTITE 648
SKU
10016442
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Color | Green | |
| Fluorescent | Yes | |
| For Thread Connections up to | M 20 R ¾“ | |
| Viscosity | 550 nt mPa·s | |
| Gap Bridging | Up to max. 0.15 mm | |
| Breakaway Torque | 30 - 35 Nm | |
| Prevail Torque | 55 - 77 Nm | |
| Shear Strength (Nmm²) | 25 - 35 N/mm² (DIN 54452) | |
| Handling Strength | 5 Min. | |
| Final Strength | (100% Strength) | 2 - 4 Std. |
| Temperature Resistance | -60°C to +175 degree C | |
| Compressive Strength (Free Cutting Steel / Grub Screw = 8.8) | ||
| M 3x6 | max. | 1500 bar |
| M 4x6 | max. | 1500 bar |
| M 5x8 | max. | 1250 bar |
| M 6x10 | max. | 800 bar |
| M 8x12 | max. | 600 bar |
| M 10x16 | max. | 500 bar |
| LOCTITE SPESIFICATION | |
| Gap Filling | 0.15 mm |
| Agency Approval/Specification | DVGW (EN 751-1): NG 5146C00236, NSF P1 Reg No: 148350, WRAS (BS 6920): 0808532 |
| Substrate | Metal: Steel |
| Operating Temperature | -55.0 - 180.0 °C (-65.0 - 355.0 °F) |
| Viscosity | 500.0 mPa·s (cP) |
| Fixture Time | 3.0 min. |
| Color | Green |
