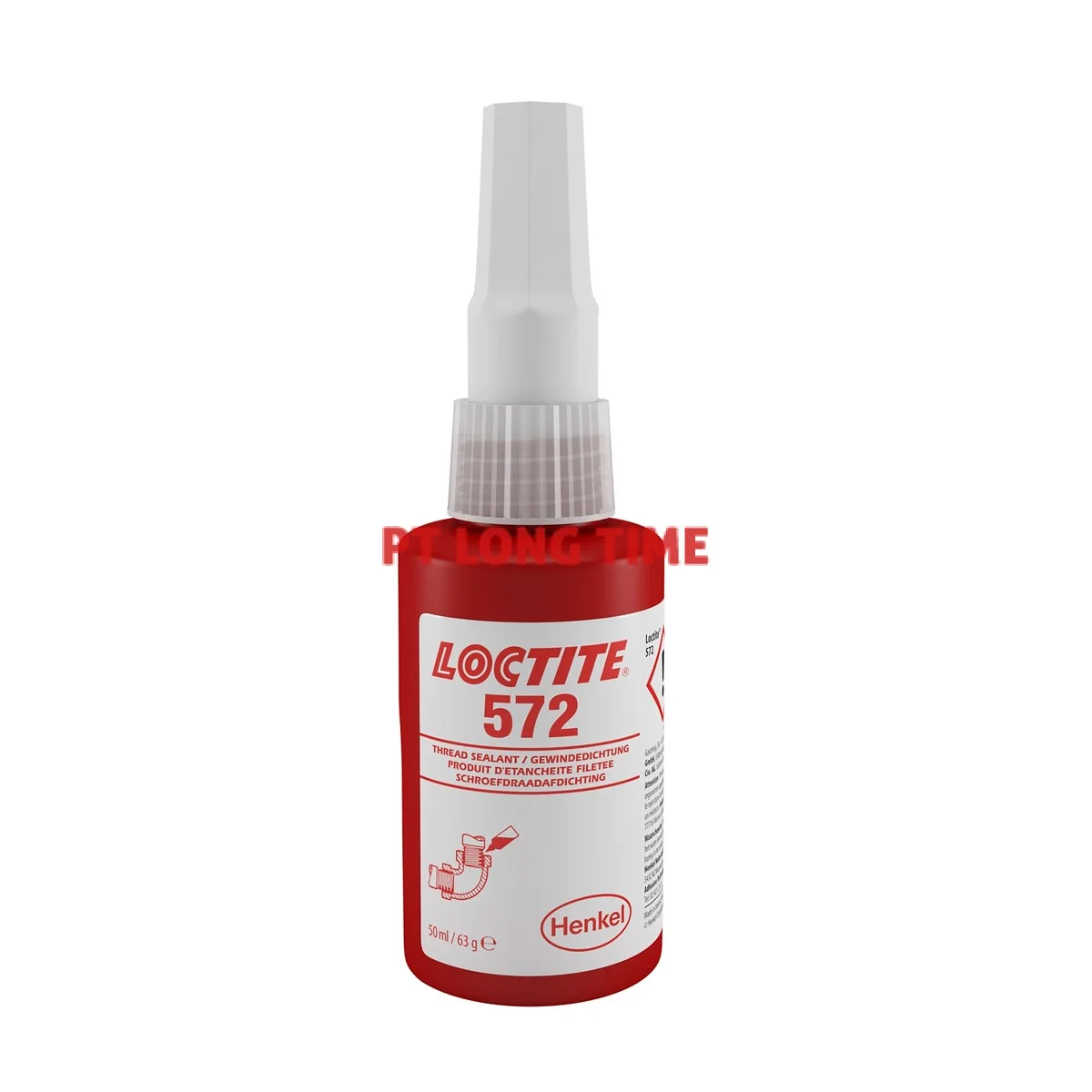

Pipe and Flange Sealing WEICONLOCK® AN 305-72 LOCTITE 572
Specification
Name
Pipe and Flange Sealing WEICONLOCK® AN 305-72 LOCTITE 572
SKU
AN 305-72
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Color | White | |
| Fluorescent | No | |
| For Thread Connections up to | M 80 R 3" | |
| Viscosity | 17,000 - 50,000 ht mPa·s | |
| Gap Bridging | Up to max. 0.4 mm | |
| Breakaway Torque | 7 - 10 Nm | |
| Prevail Torque | 2 - 4 Nm | |
| Shear Strength (Nmm²) | 4 - 6 N/mm² (DIN 54452) | |
| Handling Strength | 20 - 40 min. | |
| Final Strength | (100% Strength) | 5 - 10 h |
| Temperature Resistance | -60°C to +150 degree C | |
| Compressive Strength (Free Cutting Steel / Grub Screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1500 bar |
| M_6x10 | max. | 1500 bar |
| M_8x12 | max. | 600 bar |
| M_10x16 | max. | 200 bar |
| LOCTITE SPESIFICATION | |
| Chemical Base | Methacrylate |
| Key Characteristics | Thixotropic |
| Viscosity, Brookfield - RVT, @ 25.0 degree C Spindle 6, speed 20 rpm | 14400.0 - 28600.0 mPa·s (cP) |
| Color | White: Matte White |
