WEICON Black-Seal is black, high-temperature-resistant (+280 °C/+536 °F), free of solvents, strong, oil-resistant, grease-resistant, pressure-resistant, resistant to ageing and extremely elastic (breaking elongation of approx. 500%). It is suitable for bonding and sealing in applications where particularly high oil and grease resistance is required. The product can be used on gearbox, valve and casing covers, oil sumps, water pumps, gears and axles, flanges, tanks and containers, and in many other areas.

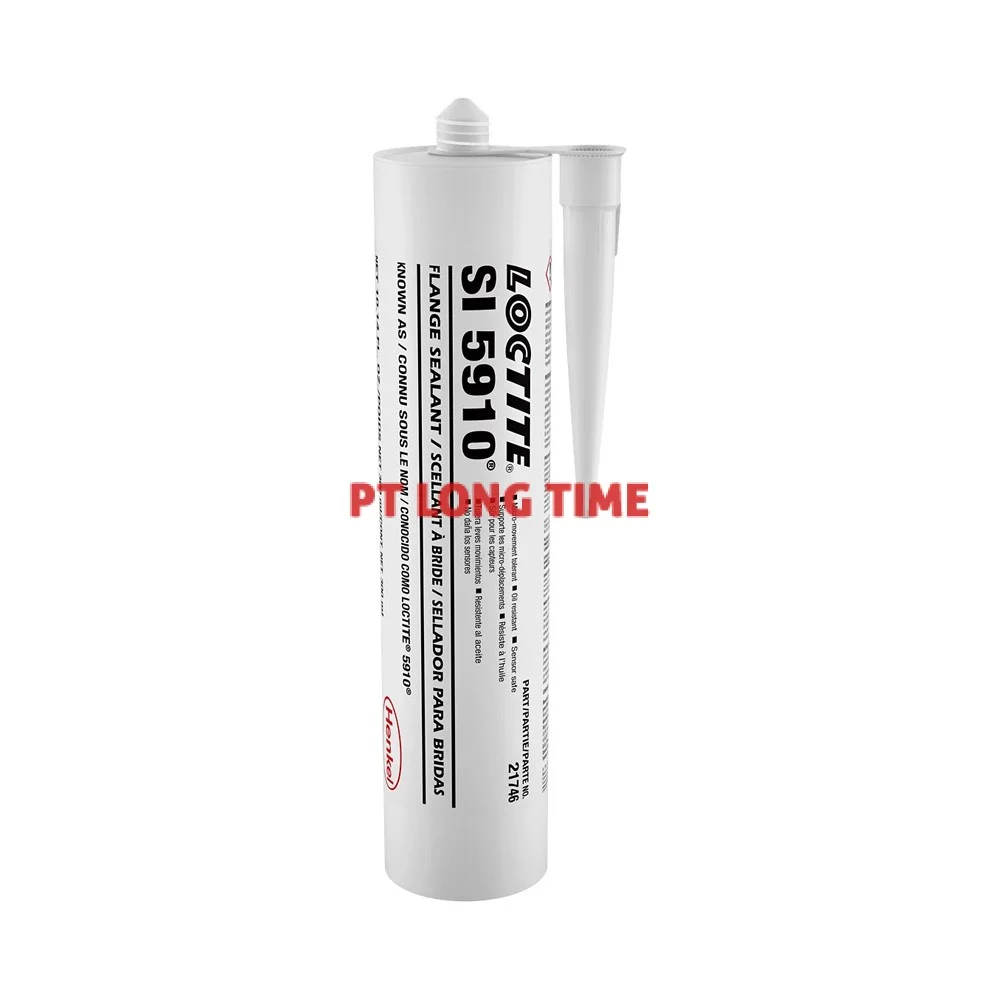

LOCTITE® SI 5910 is a low-strength gasket adhesive based on silicone, ideal for use on flexible flanges with machined or cast surfaces (metal or plastic). This product is suitable for gaps up to 1 mm and produces a curing volume (within 24 hours) of 2.75 mm thickness. Common uses include sealing corrugated sheet metal covers (such as timing covers and oil pans).
- Shock-resistant on joints and exposure to oil
- Can be filled into cartridges, tubes, or canisters
- Application on flexible flanges
- Eliminates fluid migration after application
| WEICON SPESIFICATION | |
| Base | 1-C. polysiloxane (acetate) |
| Colour | Black |
| Solid Content | 96% |
| Cure Type | Moisture-curing |
| Stability/Run-off (ASTM D 2202) | 1.0 mm |
| Density | 1.06 g/cm³ |
| Curing Condition | +5°C to +40°C and 30% to 95% rel. air humidity |
| Processing Temperature | +5°C to +35°C |
| Curing Speed in the First 24 h | 2 - 3 mm |
| Skin-over Time | 7 min. |
| Gap Bridging (up to max.) | 5 mm |
| Max. Sealing Joint Width | 25 mm |
| Tensile Strength (ISO 37 / S3A) | 2 N/mm² |
| Tensile Strength of the Pure Adhesive and Sealant (ISO 37) | 2 N/mm² |
| Elongation at Break (Tensile) (DIN 53504/ASTM D412) | 500% |
| Medium Lap Shear Strength (DIN EN 1465/ASTM D 1002) | 0.7 N/mm² |
| Elongation at Break (ISO 37, S3A) | 470% |
| Tear Resistance (DIN 53515 / ASTM D 1002) | 4 kN/m |
| Elongation at 100% (ISO 37 S3A) | 0.7 N/mm² |
| Movement Absorption (max.) | 15% |
| Volume Change (DIN 52451) | -9% |
| Hardness (Shore A) (DIN ISO 7619) | 30±5 |
| Temperature Resistance | -60°C to briefly +280°C (approx. 2 h), +300°C |
| Thermal Conductivity | 0.2 W/m·K |
| Resistance | 2.5 x 10^15 Omega x m |
| Dielectric Strength | 21.0 kV/mm |
| Building Material Class (DIN 4102) | B 2 |
| Shelf Life | 12 months |
| LOCTITE SPESIFICATION | |
|---|---|
| Oil Resistance | Good Oil Resistance |
| Extrusion Rate | 500.0 g/min |
| Substrate | Ceramic, Glass, Metal, Plastic |
| Operating Temperature | -55.0 - 200.0 °C (-65.0 - 400.0 °F) |
| Touch Dry Time | 40.0 min. |
| Color | Black |
