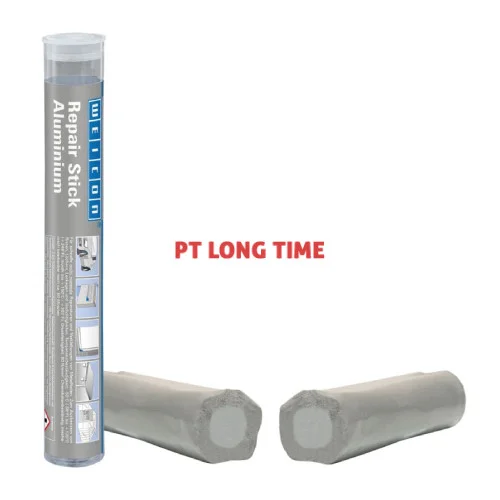

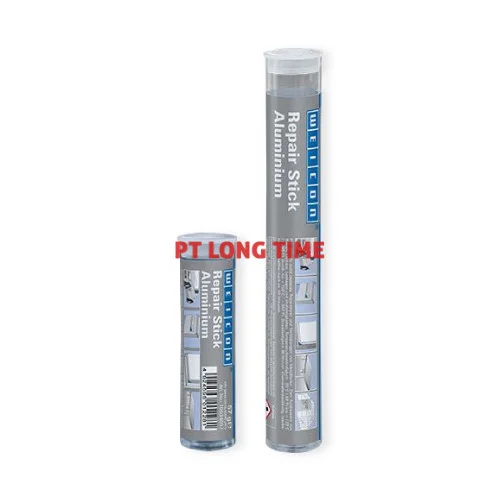

Weicon 10007711 Repair Stick Aluminium 115g
For the quick and non-corrosive repair and bonding of metal components. For the repair of cracks, holes and leaks in car bodies, gearboxes and tanks, window frames and profiles, and boats and models. The WEICON Repair Stick Aluminium can be used in machine and system construction, in the automotive industry, in gear construction, window construction, model building and many other applications.
Specification
Name
Weicon 10007711 Repair Stick Aluminium 115g
SKU
10007711
Brand
Condition
New
| General Properties | |
|---|---|
| Base | Epoxy |
| Filler | Aluminium |
| Texture | Modelling compound |
| Colour | Aluminium |
| Gap bridging | Up to max. 15 mm |
| Density of mixture | 1.9 g/cm³ |
| Processing | |
| Processing temperature | +15 °C to +35 °C |
| Cure temperature | +6 °C to +40 °C |
| Relative air humidity | < 85 % |
| Mixing ratio (by weight) | 1:1 |
| Curing | |
| Pot life at 20 °C (10 g batch) | ≈ 6 min |
| Handling strength (35 %) | 10 min |
| Working strength (80 %) | 60 min |
| Final strength (100 %) | 24 h |
| Shrinkage | < 1.0 % |
| Mechanical Properties | |
| Compressive strength (DIN EN ISO 604) | 55 MPa |
| Hardness (Shore D, DIN ISO 7619) | 80 ± 3 |
| Adhesive strength (DIN EN ISO 4624) | 6 MPa |
| Thermal Parameters | |
| Temperature resistance | -50 °C to +120 °C (briefly up to +150 °C) |
| Thermal conductivity (DIN EN ISO 22007-4) | 0.65 W/m·K |
| Electrical Parameters | |
| Volume resistance (DIN EN 62631-3-1) | ≈ 5·10¹¹ Ω·m |
| Electrical resistance (ASTM D 257) | 5 Ω·cm |
| Dielectric strength | 3.0 kV/mm |
| Magnetic | No |
