WEICON F is particularly suited for applications on components made of aluminium, aluminium alloys, magnesium and other light metals. WEICON F can be used for inexpensive repairs of all types, for filling in blowholes on light metal castings and for the reconstruction of components. The epoxy resin system can be used in tool construction, model and mould making, and in many other industrial applications.

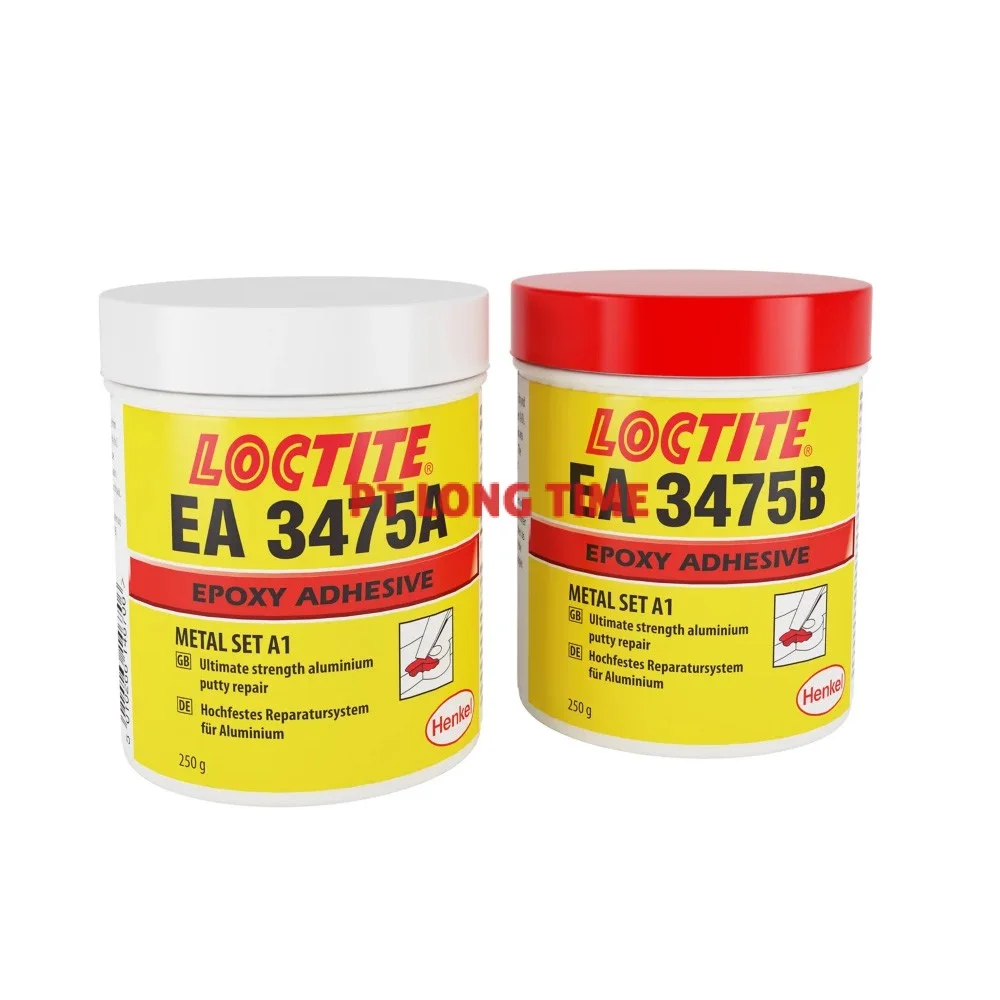

LOCTITE® EA 3475 is a 2-part, aluminum-filled epoxy adhesive suited to the repair and recovery of worn and damaged machinery, including repairing worn parts such as shafts, housings, keyways and flanges, as well as broken or damaged parts. It’s ideal for filling cavities, levelling machinery, repairing cast-steel plates, making core molds, applying a sacrificial coating or sealing leaking pipes.
- Repairs aluminum castings, parts and stripped threads
- Will form odd shapes if required
- Non-sagging
- Heavily reinforced
- Cures to a non-rusting, aluminum-like finish
| WEICON SPESIFICATION | |
| Base | Epoxy |
| Filler | Aluminium |
| Texture | Pasty |
| Colour | Aluminium metallic |
| Processing Temperature | +15°C to +40°C |
| Component Temperature | >3 °C above dew point |
| Relative Air Humidity | < 85% |
| Mixing Ratio by Weight | 100:20 |
| Mixing Ratio by Volume | 100:20 |
| Viscosity of the Mixture at +25°C | 880,000 mPa·s |
| Density of the Mixture | 1.9 g/cm³ |
| Consumption (Layer Thickness 1.0 mm) | 1.9 kg/m² |
| Max. Layer Thickness per Step | 30 mm |
| Pot Life at 20°C, 500 g Batch | 60 min. |
| Additional Layer after (35% Strength) | 5 h |
| Working Strength after (80% Strength) | 12 h |
| Final Strength (100% Strength) | 36 h |
| Shrinkage | 0.12% |
| LOCTITE SPESIFICATION | |
| Mix ratio, by volume | 1 : 1 |
| Shear strength | 20.0 N/mm² |
| Work life | 45.0 min. |
