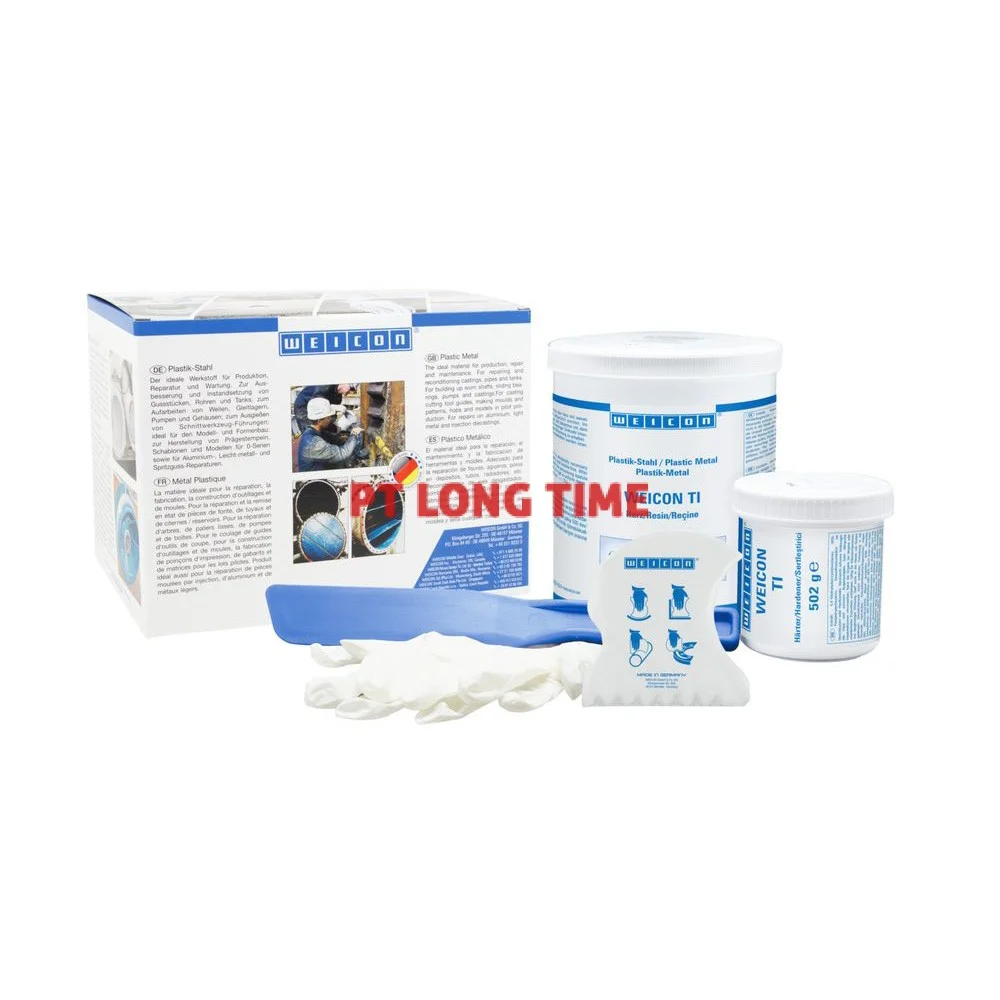

WEICON TI Titanium Filled Epoxy Resin System for Repairs and Moulding
WEICON TI has high pressure resistance and very resistant to chemicals. It is suitable especially for repair of pumps, valves, wearing plates, ball bearing seats, shafts, and propellers as well as for lining pump housings, slide bearings, etc. The epoxy resin system can be used in machine and system construction, in apparatus engineering and in many other industrial areas.
Specification
Name
WEICON TI Titanium Filled Epoxy Resin System for Repairs and Moulding
Brand
Condition
New
| SPESIFICATION | |
| Base | Epoxy |
| Filler | Titanium |
| Texture | Pasty |
| Colour | Grey |
| Processing Temperature | +15°C to +40°C |
| Component Temperature | >3 °C above dew point |
| Relative Air Humidity | < 85% |
| Mixing Ratio by Weight | 100:33 |
| Mixing Ratio by Volume | 100:35 |
| Viscosity of the Mixture at +25°C | 550,000 mPa·s |
| Density of the Mixture | 1.6 g/cm³ |
| Consumption (Layer Thickness 1.0 mm) | 1.6 kg/m² |
| Max. Layer Thickness per Step | 10 mm |
| Pot Life at 20°C, 500 g Batch | 120 min. |
| Additional Layer after (35% Strength) | 7 h |
| Working Strength after (80% Strength) | 9 h |
| Final Strength (100% Strength) | 16 h |
| Shrinkage | 0.09% |
