1. Automatic Free Pulley Snapback
Just turn the switching lever to neutral(N) to put the winch in automatic free pulley mode, making it possible to easily adjust the chain length. A patented mechanism means you don't have to keep your hand on the lever while the winch is in free pulley mode.
2. Completely Sealed Break Unit
With conventional systems, there is the danger of something hitting the brake lever and causing the load to drop.This can never happen with our completely sealed brake unit, not even rain and dust can get into the unit.
3. The Switching Unit Is Sealed inside the Lever Section
With the exception of the switching lever, all parts of the switching unit are sealed inside the lever section, completely out of sight, so dirt and dust can not get into the switching unit.
4. Steel Plates on the Chain Ends
The chain ends have symmetrical pear-shaped steel plates that resist bending even when overloaded, preventing dangerous chain slippage.
5. Sealed Body
The sealed body prevents rain and dirt from entering the which mechanism, ensuring smooth chain travel and an easy to hold design.
6. Easy Catch Hook
The end of the hook is directly connected to the winch body so that it does not move. This makes it possible to attach the hook with one hand. elimnating the need to hold the hook and winch separately.

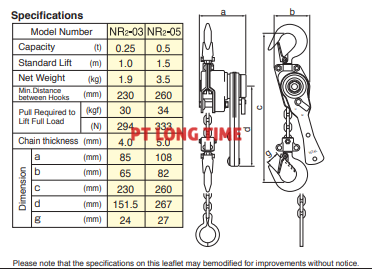

| Model Number | NR2 - 03 | NR2 - 05 | |
| Capacity (t) | 0.25 | 0.5 | |
| Standard Lift (m) | 1.0 | 1.5 | |
| Net Weight (kg) | 1.9 | 3.5 | |
| Min.Distance between Hooks (mm) | 230 | 260 | |
| Pull Required to Lift Full Load | (kgf) | 30 | 34 |
| (N) | 294 | 333 | |
| Chain Thickness (mm) | 4.0 | 5.0 | |
| Dimension | a (mm) | 85 | 108 |
| b (mm) | 65 | 82 | |
| c (mm) | 230 | 260 | |
| d (mm) | 151.5 | 267 | |
| g (mm) | 24 | 27 | |
