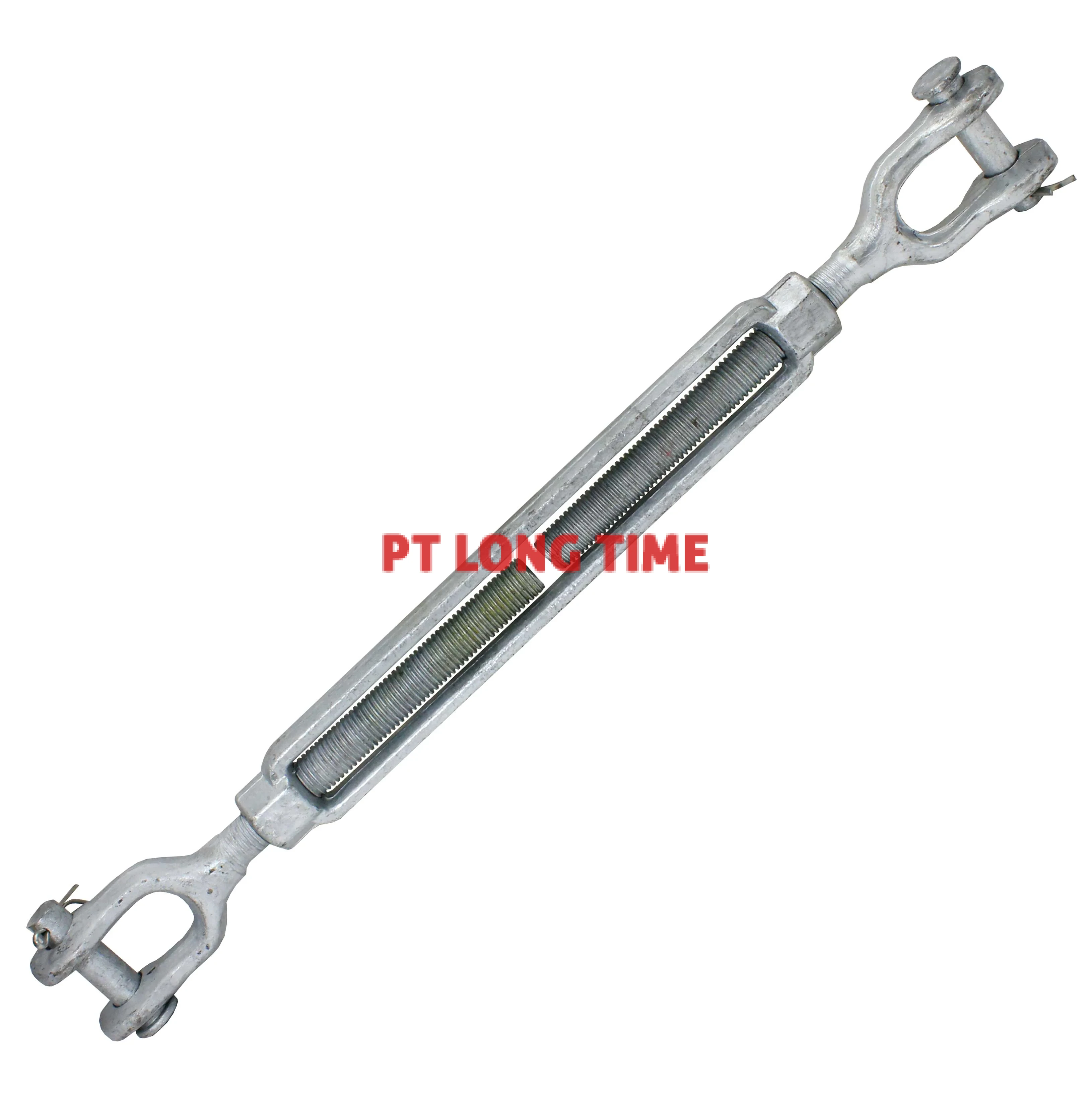

CROSBY HG-228 3/4" x 9" Jaw & Jaw Turnbuckle (1032698)

Add Enquiry Added to Enquiry
SKU DECK419
Condition New
Brand Crosby
  • End fittings are Quenched & Tempered or normalized, bodies heat-treated by normalizing.
  • Hot-dip galvanized steel.
  • TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY.
  • Forged jaw ends are fitted with bolts and nuts for 1/4” through 5/8”, and pins and cotters on 3/4” through 2-3/4” sizes.
  • Modified UNJ thread on end fittings for improved fatigue properties.
  • Body has UNC threads.
  • Lock nuts available for all sizes.
  • Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
  • Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these turnbuckles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
  • Meets the performance requirements of Federal Specifications FF-T-791b, Type 1 Form 1 - CLASS 7, and ASTM F-1145, except for those provisions required of the contractor. For additional information, see Warnings & Applications
Name
CROSBY HG-228 3/4" x 9" Jaw & Jaw Turnbuckle (1032698)
SKU
DECK419
Brand
Crosby
Condition
New
Thread Dia. & Take Up (in) Stock No. Working Load Limit (lb) Weight Each (lb) Dimensions (in)
A B E Closed G J Open K Closed M Open N Closed BB
1/4 x 4 1032493 500 .37 25 .45 1.66 .64 11.19 7.19 12.18 8.18 4.07
5/16 x 4-1/2 1032518 800 .56 .31 .50 2.02 .87 13.07 8.57 14.12 9.62 4.58
3/8 x 6 1032536 1200 .85 .38 .53 2.11 .85 16.25 10.25 17.50 11.50 6.10
1/2 x 6 1032554 2200 1.82 .50 .64 3.22 107 18.65 12.65 20.14 14.14 6.03
1/2 x 9 1032572 2200 2.29 .50 .64 3.20 107 24.94 15.94 26.43 17.43 9.36
1/2 x 12 1032590 2200 2.71 .50 .64 3.20 1.07 30.94 18.94 32.43 20.43 12.36
5/8 x 6 1032616 3500 3.21 .63 .79 3.90 1.32 19.74 13.74 21.82 15.82 6.03
5/8 x 9 1032634 3500 3.95 .63 .79 3.89 1.32 26.08 17.08 28.16 19.16 9.39
5/8 x 12 1032652 3500 4.58 .63 .79 3.89 1.32 32.08 20.08 34.16 22.16 12.39
3/4 x 6 1032670 5200 4.80 .75 .97 4.71 1.52 21.09 15.09 23.68 17.68 6.13
3/4 x 9 1032698 5200 5.85 .75 .97 4.68 1.52 27.49 18.49 30.08 21.08 9.59
3/4 x 12 1032714 5200 6.72 .75 .97 4.68 1.52 33.49 21.49 36.08 24.08 12.59
3/4 x 18 1032732 5200 8.45 .75 .97 4.71 1.52 45.49 27.49 48.08 30.08 18.53
7/8 x 12 1032750 7200 9.37 .88 1.16 5.50 1.77 34.65 22.65 37.62 25.62 12.16
7/8 x 18 1032778 7200 11.8 .88 1.16 5.50 1.77 47.12 29.12 50.09 32.09 18.63
1 x 6 1032796 10000 10.4 1.00 1.34 6.09 2.05 23.82 17.82 27.18 21.18 6.18
1 x 12 1032812 10000 13.8 1.00 1.34 6.09 2.05 35.82 23.82 39.18 27.18 12.18
1 x 18 1032830 10000 17.1 1.00 1.34 6.09 2.05 47.82 29.82 51.18 33.18 18.18
1 x 24 1032858 10000 21.0 1.00 1.34 6.06 2.05 60.42 36.42 63.78 39.78 24.84
1-1/4 x 12 1032876 15200 21.9 1.25 1.84 8.09 2.82 39.37 27.37 43.58 31.58 12.06
1-1/4 x 18 1032894 15200 25.9 1.25 1.84 8.09 2.82 51.37 33.37 55.58 37.58 18.06
1-1/4 x 24 1032910 15200 29.8 1.25 1.84 8.09 2.82 63.93 39.93 68.14 44.14 24.62
1-1/2 x 12 1032938 21400 32.6 1.50 2.06 8.93 2.81 40.76 28.76 45.68 33.68 12.32
1-1/2 x 18 1032956 21400 38.0 1.50 2.06 8.93 2.81 52.76 34.76 57.68 39.68 18.32
1-1/2 x 24 1032974 21400 43.5 1.50 2.06 8.93 2.81 65.38 41.38 70.30 46.30 24.94
1-3/4 x 18 1033018 28000 53.5 1.75 2.60 9.36 3.35 53.35 35.35 59.16 41.16 18.37
1-3/4 x 24 1033036 28000 61.1 1.75 2.60 9.36 3.35 65.35 41.35 71.16 47.16 24.37
2 x 24 1033054 37000 96.3 2.00 2.62 11.80 3.74 69.64 45.64 76.72 52.72 24.48
2-1/2 x 24 1033072 60000 167 2.50 3.06 13.26 4.44 72.97 48.97 82.18 58.18 24.60
2-3/4 x 24 1033090 75000 199 2.75 3.69 14.92 4.19 74.75 50.75 85.50 61.50 24.65
