Threadlocking High Strength WEICONLOCK® AN 301-70 LOCTITE 2700
Medium viscosity, high strength, hard to disassemble
Specification
Name

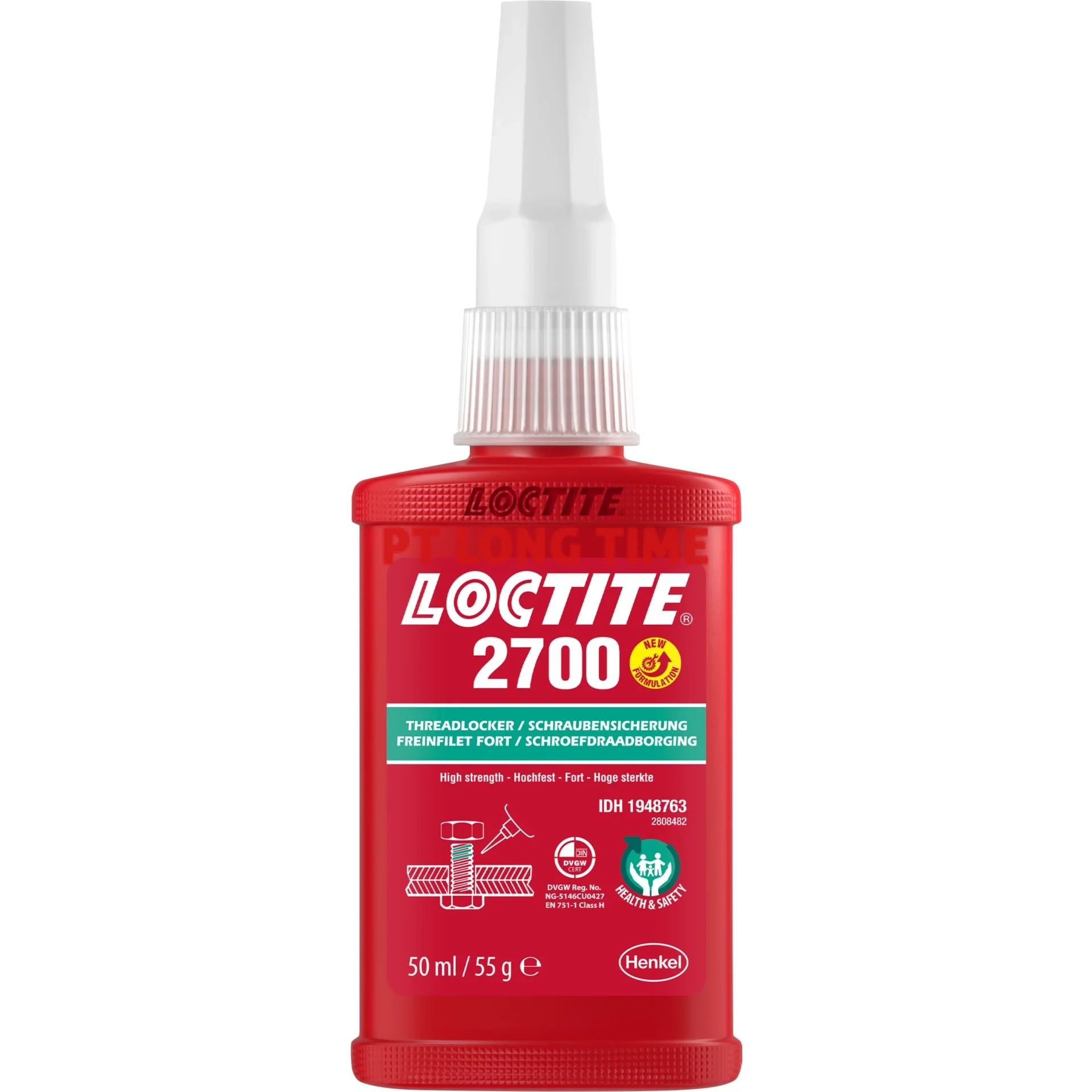

Threadlocking High Strength WEICONLOCK® AN 301-70 LOCTITE 2700
Brand
Ships from
Batam, Indonesia
| WEICON SPESIFICATION | ||
|---|---|---|
| Colour | Green | |
| Fluorescent | Yes | |
| For thread connections | up to M 25 | |
| Viscosity | 500 - 900 nt mPa·s | |
| Processing temperature | 15 - 35 | |
| Gap bridging | Up to max. 0.15 mm | |
| Breakaway torque | 25 - 35 Nm | |
| Prevail torque | 40 - 50 Nm | |
| Shear strength | (DIN 54452) | 14 - 20 N/mm² |
| Handling strength at room temperature | 5 - 15 min. | |
| Final strength | (100% strength) | 5 - 10 hours |
| Temperature resistance | -60°C to +150°C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | Max. | 1500 bar |
| M_4x6 | Max. | 1500 bar |
| M_5x8 | Max. | 1500 bar |
| M_6x10 | Max. | 700 bar |
| M_8x12 | Max. | 600 bar |
| M_10x16 | Max. | 500 bar |
| LOCTITE SPESIFICATION | |
| Agency approvals / certificates / specifications | NSF P1 Reg. No 123006 |
| Application temperature | -55.0 - 150.0 °C (-65.0 - 300.0 °F ) |
| Applications | Threadlocking |
| Breakaway torque, M10 Black Oxide Bolts | 20.0 N·m (180.0 in./lb. ) |
| Casson viscosity, cone & plate | 450.0 mPa·s (cP) |
| Color | Green |
| Fixture time | 5.0 min. |
| Key characteristics | Mix: no mix required, Strength: high strength |
| Number of components | 1 part |
| Prevail torque, M10 Black Oxide Bolts | 19.0 N·m (168.0 in./lb. ) |
| Recommended for use with | Metal: aluminum, Metal: brass, Metal: steel, Metal: steel - stainless steel |
