Structural Acrylic Adhesive WEICON RK-1300 LOCTITE 326
The structural acrylic adhesive WEICON RK-1300 has high impact, peel and shear strength. The system consists of one adhesive and one activator, which are used in the “no mix” procedure. This makes processing easier by eliminating mixing procedures.The product is particularly suitable for bonding large surfaces of many different materials such as metals, ferrites and rigid plastics. WEICON RK-1300 can be used in mechanical and apparatus engineering, vehicle construction, tool and mould making, the building and furniture industry, and in many other industrial areas.

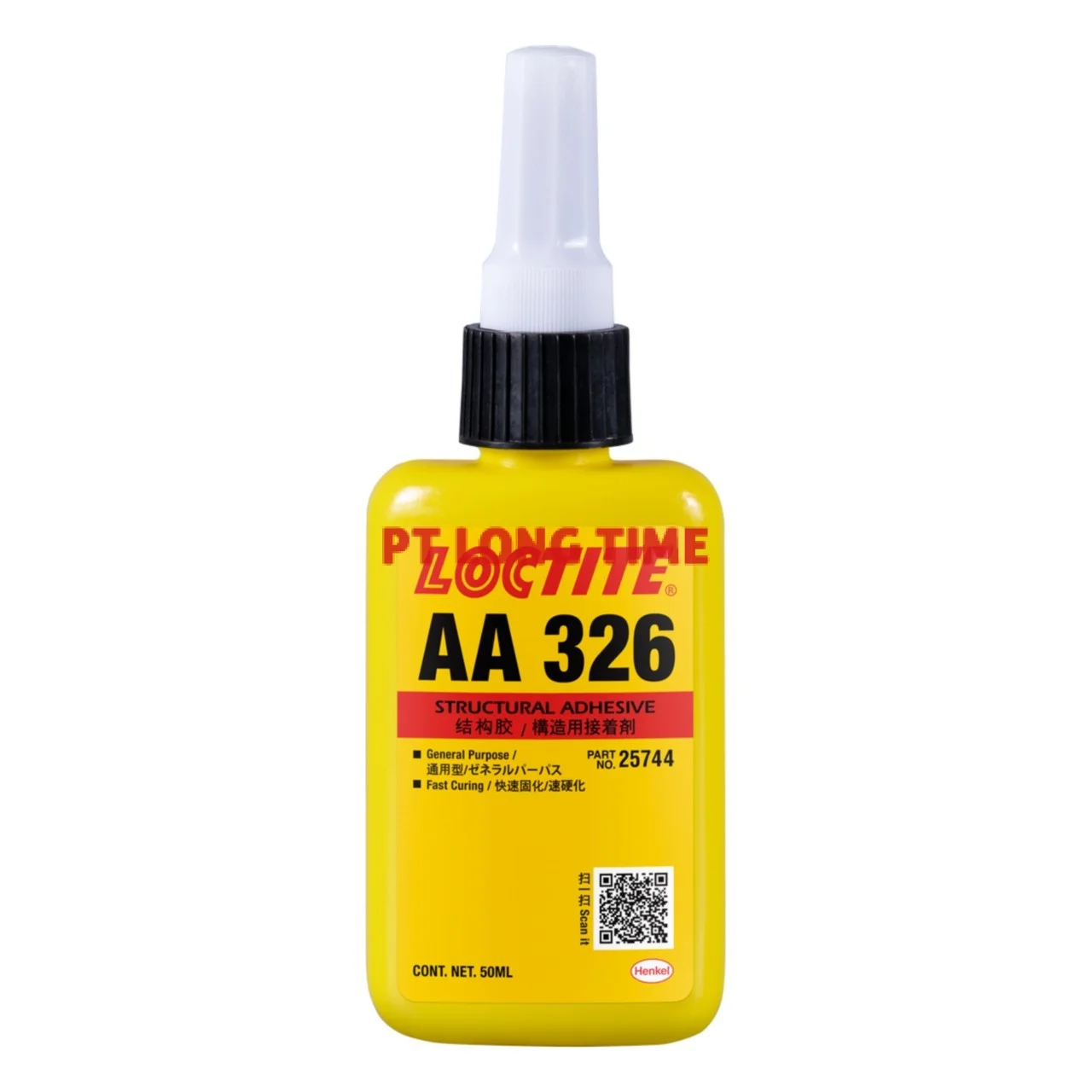

LOCTITE AA 326 is a yellow to amber, non-mixing structural and magnetic adhesive. This product has good adhesion to various types of ferrite, with an adhesion time of 3 minutes, and a shear resistance of 15 N/mm². This product can be used at temperatures up to +120 degree C. Requires LOCTITE SF 7649 to activate.
| WEICON SPESIFICATION | ||
| Base | Methyl Methacrylate | |
| Texture | Pasty | |
| Colour | Beige, Opaque | |
| Processing | ||
| Processing Procedure | No-Mix | |
| Processing Temperature | +10°C to +40°C | |
| Curing Temperature | Minimum: +18°C | |
| Cure Temperature | +18°C | |
| Density of the Mixture | 1.2 g/cm³ | |
| Gap Bridging up to max. | 0.4 mm | |
| Curing | ||
| Handling Strength | (35% strength) | 6 min. |
| Working Strength After | (50% strength) | 9 min. |
| Final Strength | (100% strength) | 24 h |
| LOCTITE SPESIFICATION | |
| FEA (Finite Element Analysis) | Viscoelastic |
| Shear Strength | 15.0 N/mm² |
| Key Characteristics | Mixing: Mix Not Required |
| Viscosity, Brookfield - RVT | @ 25.0°C Spindle 6, speed 20 rpm: 14000.0 - 22000.0 mPas (cP) |
| Viscosity, EN 12092 - MV | @ 25.0°C Shear Rate 36 s-¹: 10000.0 - 20000.0 mPas (cP) |
| Fixture Time | 3.0 min. |
| Color | Yellow, Yellow: Amber |
