WEICON Black-Seal is black, high-temperature-resistant (+280 °C/+536 °F), free of solvents, strong, oil-resistant, grease-resistant, pressure-resistant, resistant to ageing and extremely elastic (breaking elongation of approx. 500%). It is suitable for bonding and sealing in applications where particularly high oil and grease resistance is required. The product can be used on gearbox, valve and casing covers, oil sumps, water pumps, gears and axles, flanges, tanks and containers, and in many other areas.

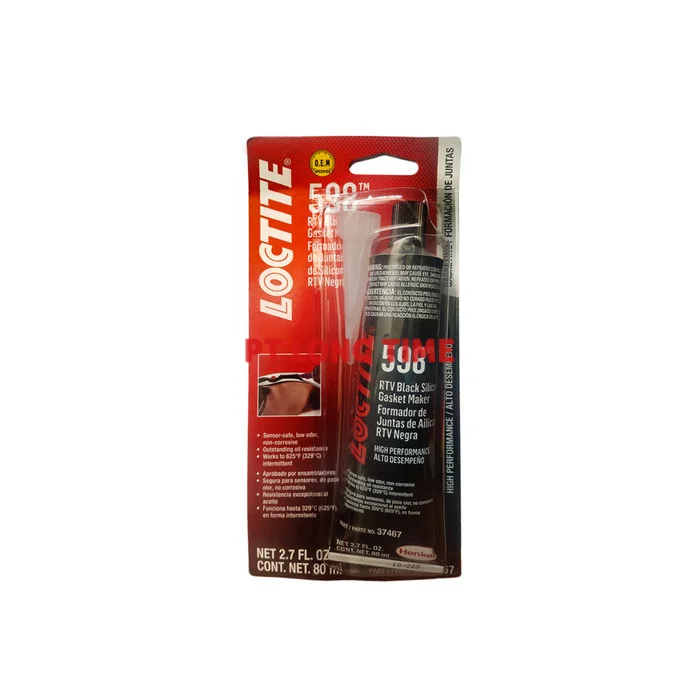

LOCTITE® SI 598 is a metallic black, 1-part, RTV (room temperature vulcanizing) oxime silicone paste sealant. It cures at room temperature on exposure to moisture in the air to form a tough, flexible, silicone rubber gasket. Its thixotropic nature allows for easy flow dispensing, while preventing the migration of liquid product once applied to the part. It has excellent resistance to motor oils and can withstand operating temperatures from -54°C to 260°C (-65°F to 500°F). It resists ageing, weathering, and thermal cycling without hardening, shrinking or cracking.
| WEICON SPESIFICATION | |
| Base | 1-C. polysiloxane (acetate) |
| Colour | Black |
| Solid Content | 96% |
| Cure Type | Moisture-curing |
| Stability/Run-off | ASTM D 2202, 1.0 mm |
| Density | 1.06 g/cm³ |
| Curing Condition | From +5°C to +40°C and 30% to 95% rel. air humidity |
| Processing Temperature | +5°C to +35°C |
| Curing Speed (First 24 h) | 2 - 3 mm |
| Skin-Over Time | 7 min. |
| Gap Bridging | Up to max. 5 mm |
| Max. Sealing Joint Width | 25 mm |
| Tensile Strength (ISO 37/S3A) | 2 N/mm² |
| Elongation at Break (Tensile) | DIN 53504/ASTM D412, 500% |
| Medium Lap Shear Strength | (DIN EN 1465/ASTM D 1002) 0.7 N/mm² |
| Tear Resistance | DIN 53515/ASTM D 1002, 4 kN/m |
| Elongation at 100% | ISO 37 S3A, 0.7 N/mm² |
| Movement Absorption | Max. 15% |
| Volume Change | DIN 52451, -9% |
| Hardness (Shore A) | DIN ISO 7619, 30±5 |
| Temperature Resistance | -60°C to briefly +280°C (approx. 2 h), +300°C |
| Thermal Conductivity | 0.2 W/m·K |
| Resistance | 2.5 x 10^15 m |
| Dielectric Strength | 21.0 kV/mm |
| Building Material Class | DIN 4102 B2 |
| LOCTITE SPESIFICATION | |
| Color | Black |
| Cure type | Room temperature vulcanization (RTV) cure |
| Fixture time | 30.0 min. |
| Physical form | Paste |
| Storage temperature | 8.0 - 21.0 °C |
