Name
RUD VWBG-V-2t-M22 Load Ring Metric Thread
SKU
VWBG-V-2t-M22
Brand
Condition
New

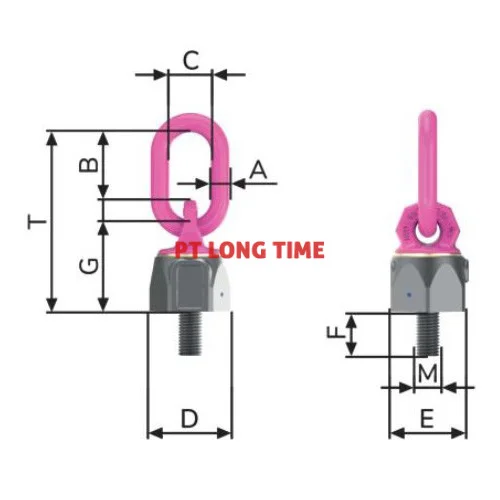

| Attribute | Value (Metric) | Value (Imperial) |
|---|---|---|
| Weight | 1.45 kg | 3.20 lbs |
| Nominal WLL | 2000 kg | 4400 lbs |
| T | 137 mm | 5-3/8" |
| A | 13 mm | 1/2" |
| B | 54 mm | 2-1/8" |
| C | 35 mm | 1-3/8" |
| D | 62 mm | 2-7/16" |
| E | 55 mm | 2-5/32" |
| F | 33 mm | 1-5/16" |
| G | 67 mm | 2-5/8" |
| M | M22 mm | M22 |
- Rotating 360°, pivoting 230°
- Optical markings for easy determination for withdraw from service

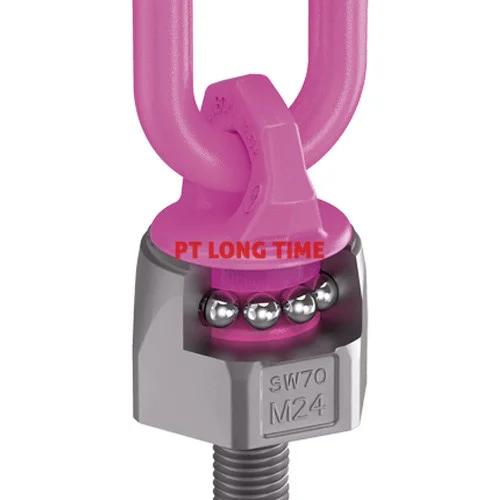

- Ball bearing
