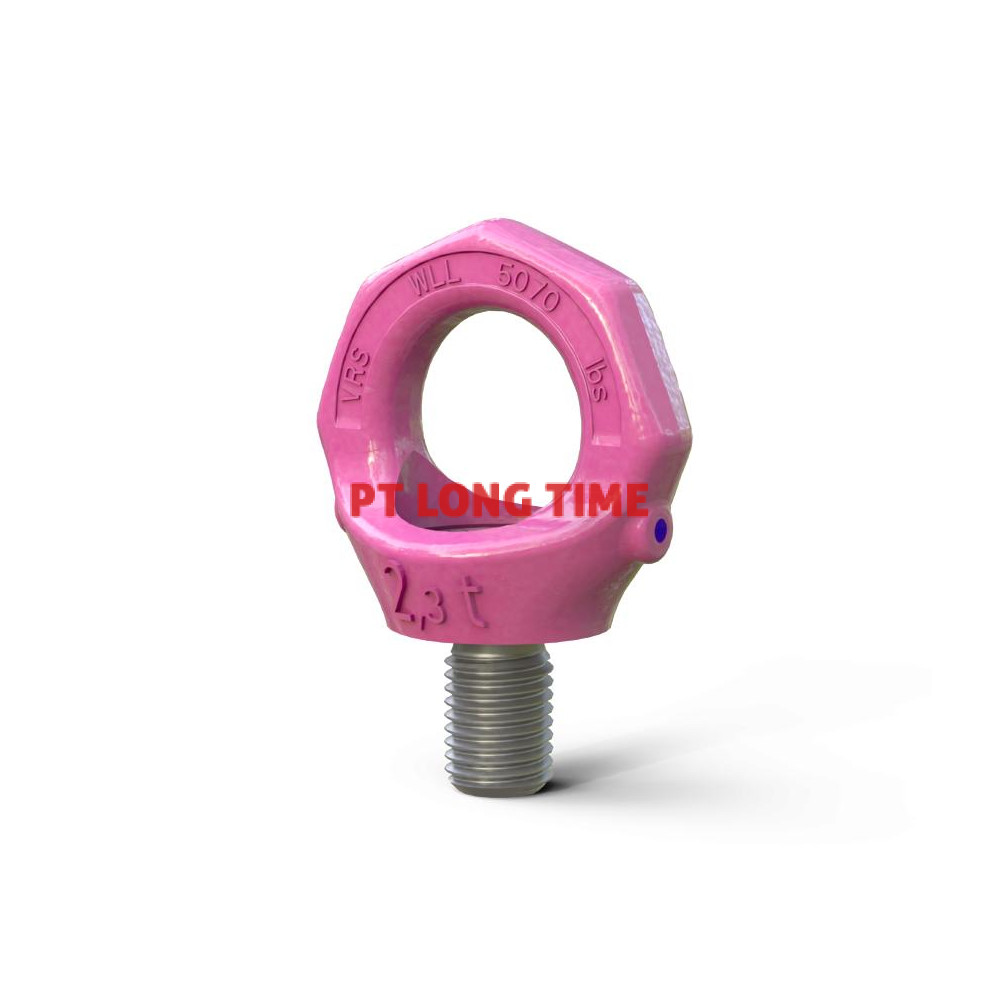

RUD VRS-2.3t-M22 Vario Eye Bolt Starpoint
- 360° adjustable in force direction
- several times higher WLL than the DIN 580 eye bolt
- Easy-Fit-Key for easy assembly and disassembly available, look type VRS-F
Specification
Name
RUD VRS-2.3t-M22 Vario Eye Bolt Starpoint
SKU
VRS-2.3t-M22
Brand
Condition
New
| Attribute | Value (Metric) | Value (Imperial) |
|---|---|---|
| Weight | 0.56 kg | 1.34 lbs |
| Nominal WLL | 2300 kg | 5070 lbs |
| T | 58 mm | 2-9/32" |
| B | 17 mm | 43/64" |
| C | 16 mm | 5/8" |
| D | 40 mm | 1-9/16" |
| E | 41 mm | 1-5/8" |
| G | 50 mm | 1-31/32" |
| I | 29.3 mm | 1-5/32" |
| K | 76 mm | 3" |
| L | 30 mm | 1-3/16" |
| M | M22 mm | M22 |
| N | 12 mm | 15/32" |
