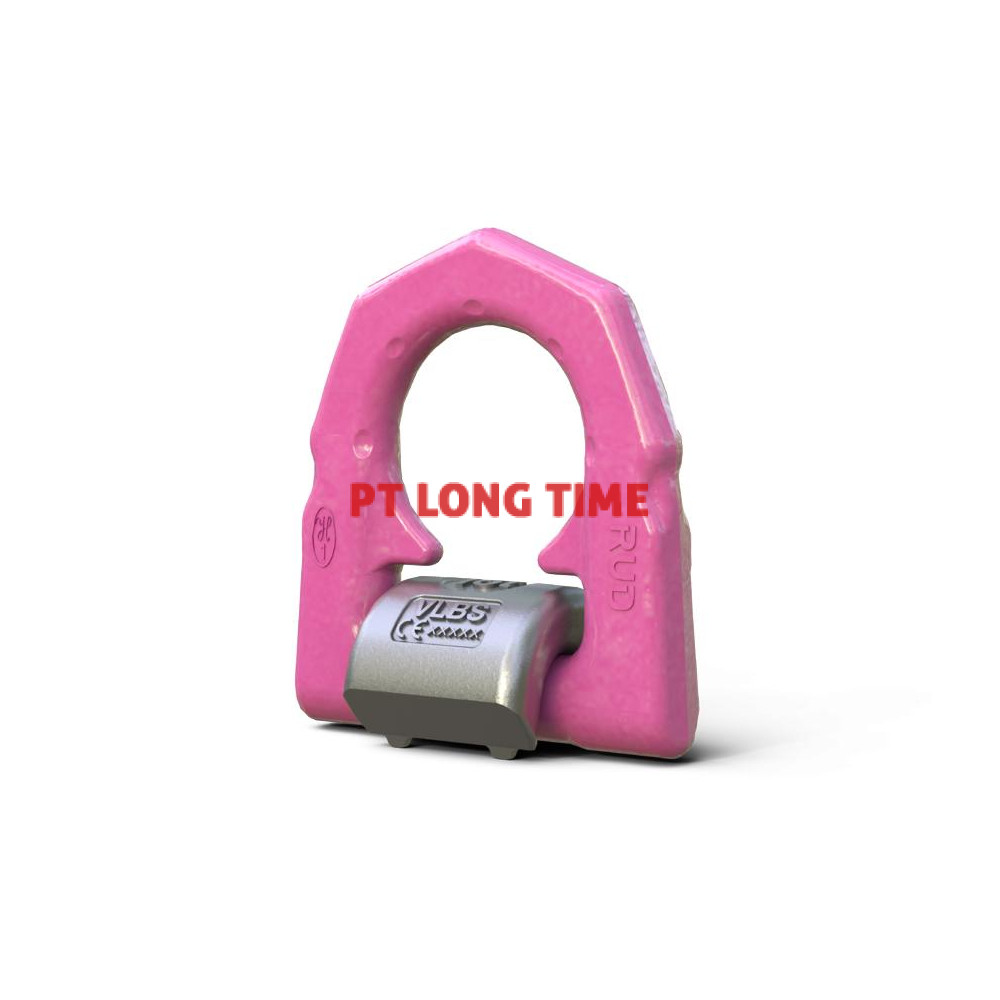

RUD VLBG-PLUS-0.9t-M10 Load Ring with ICE-bolt
- Optimum WLL with captive but exchangable ICE-Bolt
- Bracket adjustable in force direction
- Comprehensive range of threads
- DNV certification from size M30.
Specification
Name
RUD VLBG-PLUS-0.9t-M10 Load Ring with ICE-bolt
SKU
VLBG-PLUS-0.9t-M10
Brand
Condition
New
| Attribute | Value (Metric) | Value (Imperial) |
|---|---|---|
| Weight | 0.31 kg | 0.68 lbs |
| Nominal WLL | 900 kg | 1980 lbs |
| T | 75 mm | 2-15/16" |
| A | 30 mm | 1-3/16" |
| B | 54 mm | 2-1/8" |
| C | 34 mm | 1-11/32" |
| D | 24 mm | 15/16" |
| E | 39 mm | 1-9/16" |
| F | 10 mm | 3/8" |
| G | 29 mm | 1-5/32" |
| H | 15 mm | 19/32" |
| I | 75 mm | 2-15/16" |
| K | 45 mm | 1-25/32" |
| L | 44 mm | 1-3/4" |
| M | M10 mm | M10 |
| N | 32 mm | 1-1/4" |
