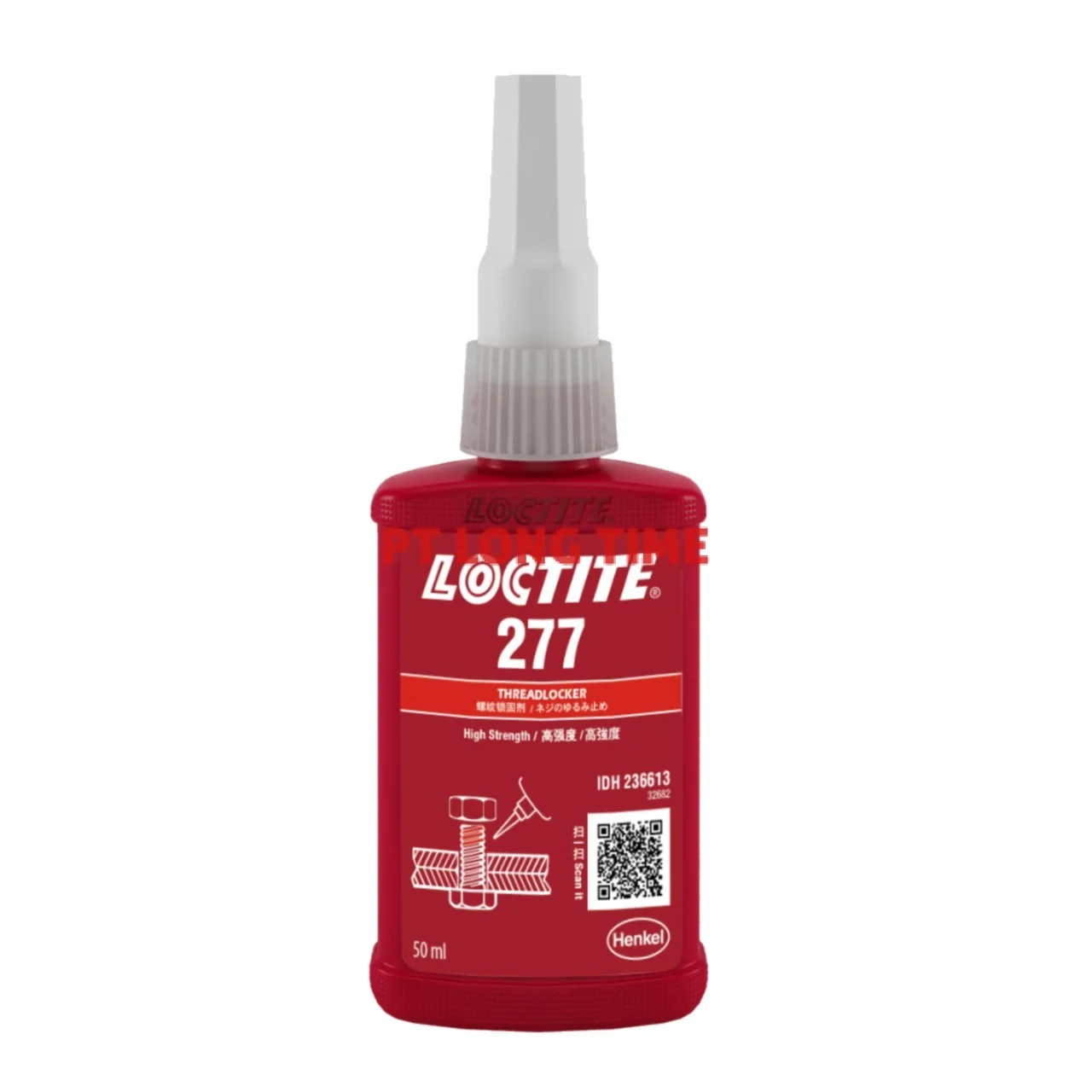

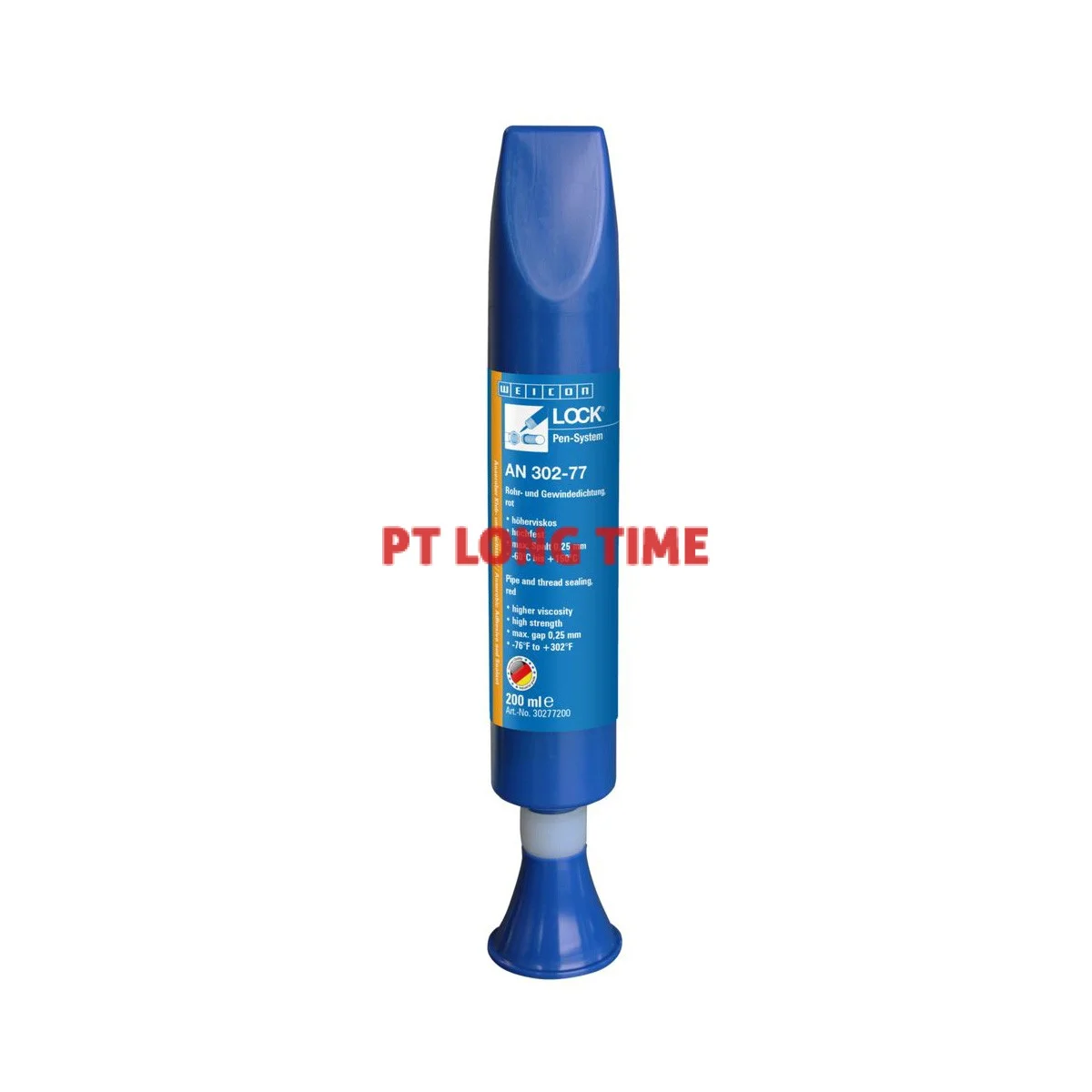

Pipe and Thread Sealing High Strength WEICONLOCK AN 302-77 LOCTITE 277
Specification
Name
Pipe and Thread Sealing High Strength WEICONLOCK AN 302-77 LOCTITE 277
SKU
AN 302-77
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | red | |
| Fluorescent | yes | |
| For thread connections up to | M 36 | |
| Viscosity | 6.000 mPa·s | |
| Gap bridging up to max. | 0,25 mm | |
| Breakaway torque | 30 - 40 Nm | |
| Prevail torque | 10 - 15 Nm | |
| Shear strength Nmm² (DIN 54452) | 35 - 45 N/mm² | |
| Handling strength | 40 - 60 min. | |
| Final strength | (100 % strength) | 6-12 h |
| Temperature resistance | -60 to +150 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1500 bar |
| M_6x10 | max. | 500 bar |
| M_8x12 | max. | 400 bar |
| M_10x16 | max. | 300 bar |
| LOCTITE SPESIFICATION | |
| Application | Thread Adhesive for Large Bolts/Studs |
| Physical Form | Liquid |
| Key Characteristics | Fluorescent, Strength: High Strength, Thixotropic |
| Application Method | Manual, Dispensing Gun, Dosing system |
| Application of Temperature | -55.0 - 150.0 degree C (-65.0 - 300.0 degree F ) |
| Substrate | Metal: Brass, Metal: Steel, Metal: Steel - Stainless Steel |
| Technology | Acrylic |
| Drying Type | Anaerobic Drying |
| Torque Resistance, M10 Steel Nuts/Bolts | 32.0 N·m (280.0 in/lb. ) |
| Movement Torque, M10 Steel Nuts/Bolts | 32.0 N·m (280.0 in/lb. ) |
| Viscosity, 20 RPM | 7000.0 mPa.s (cP) |
| Fixture Time | 45.0 min. |
| Color | Red |
