PFERD TC Burrs Ball KUD Dia. 03 x 02MM Shank Dia. 3MM EAN 4007220049778
Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate.
Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material.

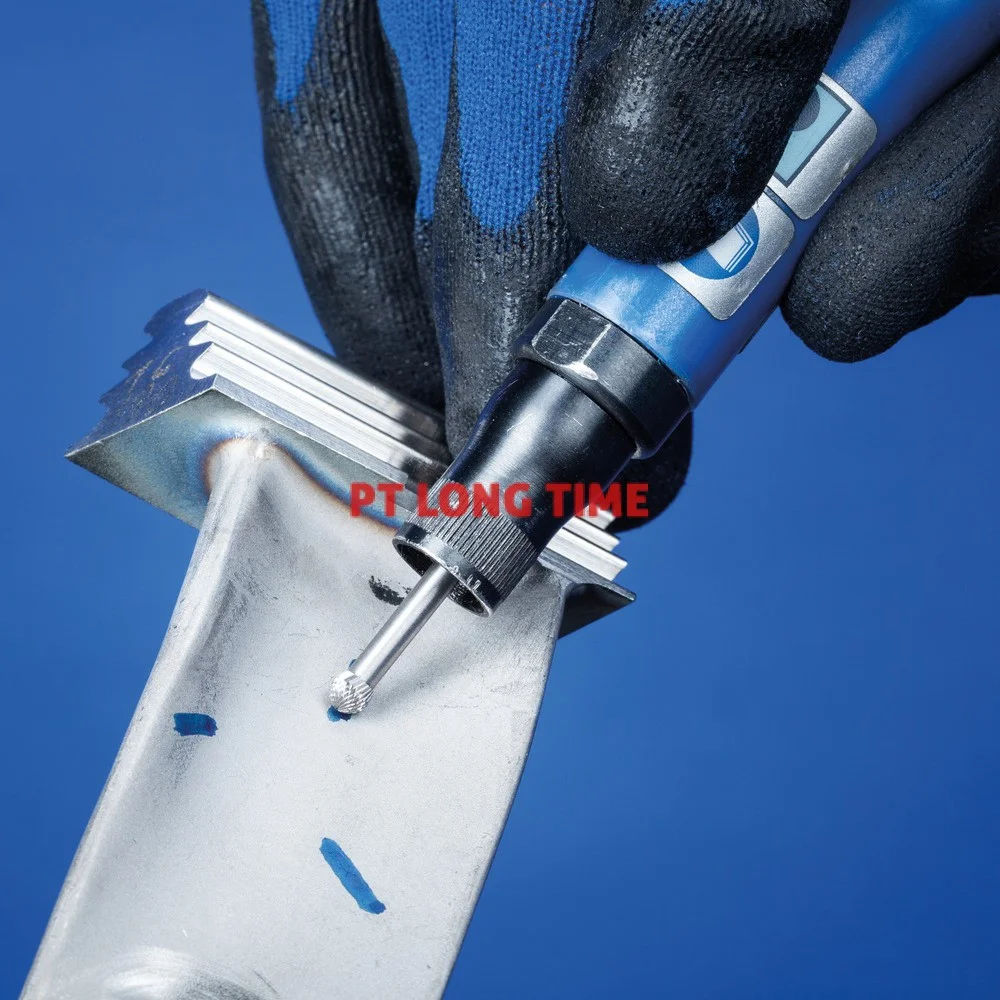

Ball-shaped burr according to DIN 8032 with cut conforming to DIN 8033.
Name
PFERD TC Burrs Ball KUD Dia. 03 x 02MM Shank Dia. 3MM EAN 4007220049778
Brand
Condition
New
| Cut | 3 PLUS |
| Dia. external | 1/8 Inch / 3 mm |
| Dia. shank | 1/8 Inch / 3 mm |
| Length, cut | 2 mm |
| Length, total | 1.19/64 Inch / 33 mm |
| RPM from, grey cast iron, white cast iron | 48000 RPM |
| RPM from, hardened, heat-treated steels over 1,200 N/mm² | 27000 RPM |
| RPM from, high-temperature-resistant materials | 26539 RPM |
| RPM from, rust and acid-resistant steels | 27000 RPM |
| RPM from, steels up to 1,200 N/mm² | 48000 RPM |
| RPM to, grey cast iron, white cast iron | 64000 RPM |
| RPM to, hardened, heat-treated steels over 1,200 N/mm² | 37000 RPM |
| RPM to, high-temperature-resistant materials | 48000 RPM |
| RPM to, rust and acid-resistant steels | 37000 RPM |
| RPM to, steels up to 1,200 N/mm² | 64000 RPM |
| Materials that can be worked | Applications |
|
|
| Drive types | |
|
