PFERD TC Hole Cutter / Hole Saw Dia. 25 x 35MM EAN 4007220063583

Add Enquiry

Tungsten carbide hole cutters are professional tools for quick, precise hole-cutting (cut-outs) with a diameter of 16 to 105 mm. They are suitable for working on alloyed and non-alloyed steels, stainless steel (INOX), non-ferrous metals and plastics (including GRP). Tungsten carbide hole cutters are used on hand drills or on stationary machines. PFERD hole cutters have an irregular tooth pitch (distance between teeth) to prevent tool chatter.

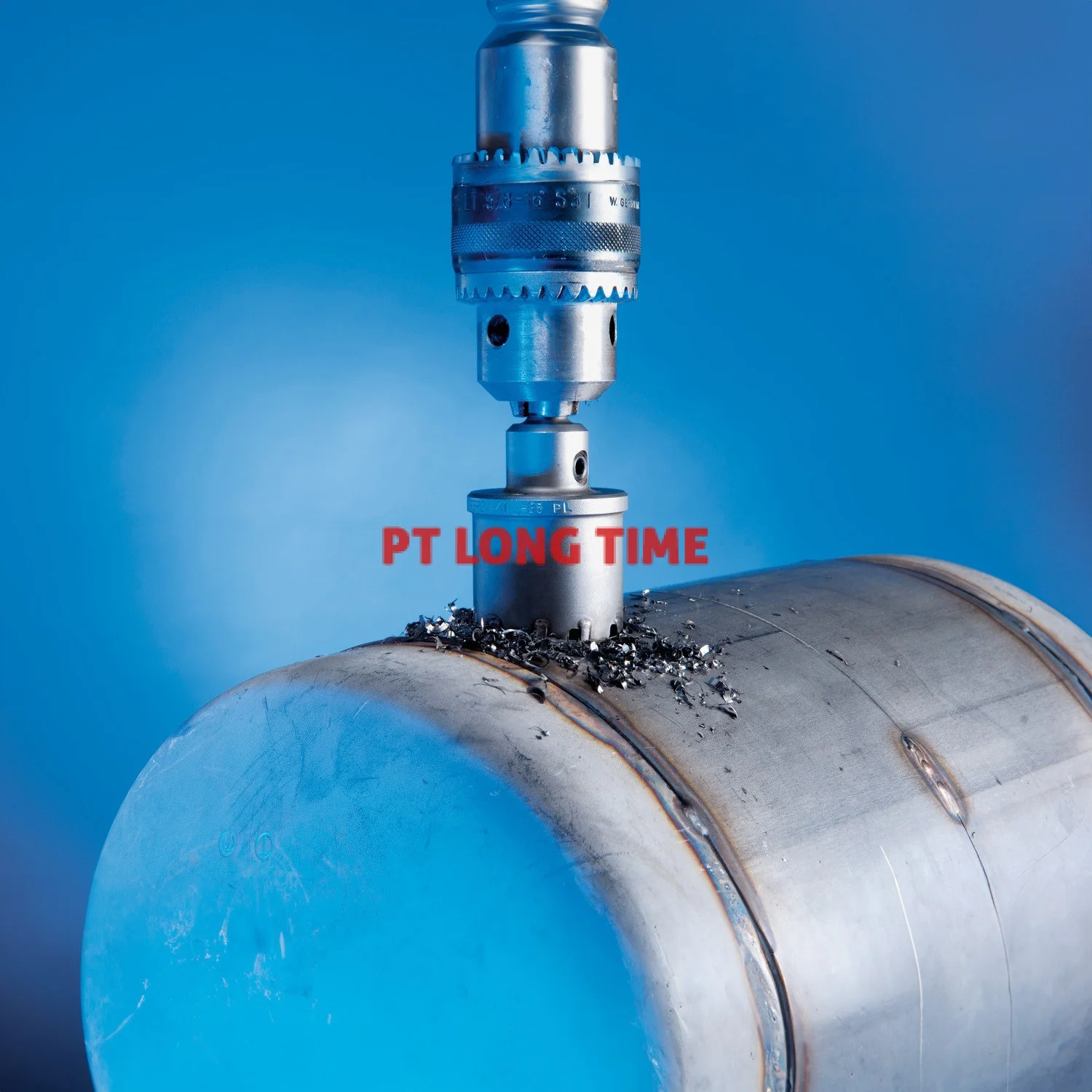

The deep version (tool height 35 mm) is suitable for use on curved surfaces and pipe materials. The maximum cutting depth is 32 mm.

Name

Brand

PFERD

Condition

New

Dia. external	25 mm
Dia. shank	10 mm
RPM from, rust and acid-resistant steels	260 RPM
RPM from, soft non-ferrous metals	560 RPM
RPM from, steels up to 1,200 N/mm²	510 RPM
RPM from, thermoplastics, fibre-reinforced plastics (GRP/CRP) with a fibre content under 40 %	560 RPM
RPM to, rust and acid-resistant steels	640 RPM
RPM to, soft non-ferrous metals	840 RPM
RPM to, steels up to 1,200 N/mm²	760 RPM
RPM to, thermoplastics, fibre-reinforced plastics (GRP/CRP) with a fibre content under 40 %	840 RPM

Materials that can be worked	Applications
Aluminium Annealed cast iron Black annealed cast iron (GTS, GJMB) Brass Bronze Case-hardened steels Cast iron Cast steel Chipboard Copper Elastomers Fibre-reinforced thermosetting plastics (GRP, CRP) Fibre-reinforced thermosetting plastics (GRP, CRP) with a fibre content > 40 % Fibre-reinforced thermosetting plastics (GRP, CRP) with a fibre content ≤ 40 % Grey/nodular cast iron (GG/GJL, GGG/GJS) Hard aluminium alloys Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC) Hard non-ferrous metal Hardwood Other Other non-ferrous metals Plastics Soft aluminium alloys Soft non-ferrous metal Soft titanium alloys (tensile strength 500 N/mm²) Soft wood Stainless steel (INOX) Steel Steel, cast steel Steel materials with a hardness > 54 HRC Steels over 700 N/mm² (> 220 HB) Steels up to 1,200 N/mm² (< 38 HRC) Steels up to 700 N/mm² (< 220 HB) Thermoplastics Thermosetting plastics Titanium Titanium alloys Tool steels Tough aluminium alloys White annealed cast iron (GTW, GJMW) Wood Zinc	Cutting out holes Drilling
	Drive types
	Column drill Power drill Robot Stationary machines
