HellermannTyton P-Clamp Short, Dmin=12.7mm, Dmax=19.5mm, ⌀10.29 mm, 180°, Black, 280pcs.

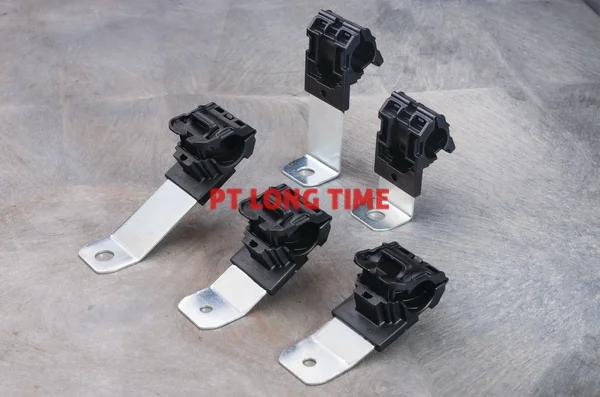

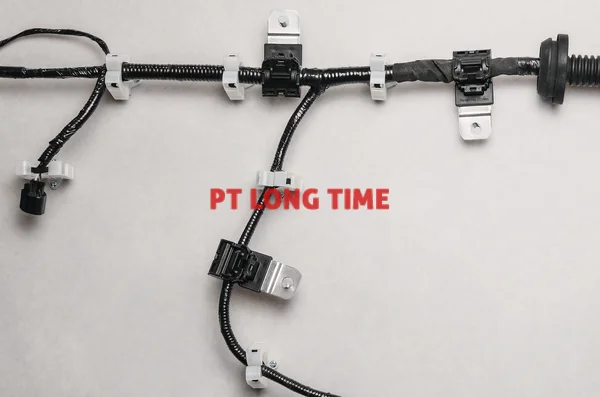

The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.
- Ratchet P-Clamp B-Series for bundle diameters from 13.2 mm to 19.5 mm
- One-piece ratchet closure design allows for easy installation during pre- or final assembly
- Multiple configurations handle a wide range of diameters and applications, reducing part inventory
- Clamp interior is designed to guide and center bundle to reduce pinching
- Easy release feature allows for quick adjustments and maintenance
- Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
- Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray
Specification
| Colour | Black (BK) |
| Fixation Method | Screw Mounting |
| Key product features | vibration absorbing, removable, releasable, for multiple routing |
| Local order number | RCB180SM8 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Steel (ST), Zinc plated (ZN) |
| Min.Tensile Strength | 445N |
| Mounting Screw Type | M8 Screw |
| PART DESCRIPTION | RCB180SM8-PA66HIRHSUV/ST/ZN-BK |
| Package Content | 280pcs. |
| Package Content packed in | pack |
| Product Family | For bundle diameters from 12.7 mm to 19.5 mm, B-Series |
| Product Group | Ratchet P-Clamp |
| Type | RCB180SM8 |
| UV-Stabilised | Yes |
| Variant | Short |
| Angle | 180 |
| Bundle ⌀ max. | 19.5mm |
| Bundle ⌀ min. | 12.7mm |
| Fixing Hole Centres (F) | 2.08" |
| Fixing Hole Centres (F) | 52.8mm |
| Length (L) | 116.2mm |
| Length (L2) | 83.1mm |
| Strap Width max. (G) | 0.52" |
| Strap Width max. (G) | 13.2mm |
| Stud ⌀ | M8 |
| Width (W) | 34.9mm |
| Width (W2) | 1.181" |
| Width (W2) | 30.0mm |
| for Hole ⌀ (FH) | 8.31 mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| Plenum Rating | AH-2 |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |    |
| Stamping Material | Steel (ST) |
| UL Listed (US and Canada) | Yes |
| UL Listed (US) | Yes |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UL-File Number | E64139 |
