HellermannTyton Cable Tie Mount for Cable Bundles, Wmax=12.7mm, Black, 50pcs

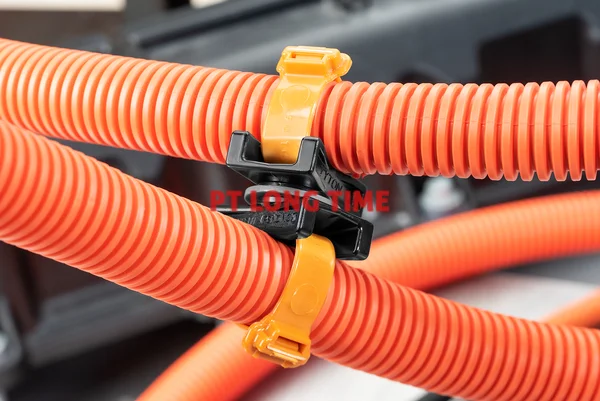

Primarily designed for use in the automotive/ truck industry, these parts can be used in a wide variety of industries and applications where bundles need separation from each other.
- For parallel routing of bundles that can be twisted 360° even after setting
- Secure alignment to the bundle due to H-design
- Cable tie head can be moved after bundling
- For cable ties up to 12.7 mm wide
- For post-installation of bundles
Name
HellermannTyton Cable Tie Mount for Cable Bundles, Wmax=12.7mm, Black, 50pcs
Brand
Condition
New
Specification
| Colour | Black (BK) |
| For Ties | T50 - T250 |
| Key product features | rotatable, vibration absorbing, for multiple routing |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 4.6 (PA46) |
| PART DESCRIPTION | DSWS5-PA66HS/PA46-BK |
| Package Content | 50pcs. |
| Package Content packed in | pack |
| Product Family | DSWS-Series |
| Product Group | Cable tie mount for parallel routing, twistable 360° |
| Type | DSWS5 |
| UV-Stabilised | No |
| Bundle ⌀ max. | 152.0mm |
| Bundle ⌀ min. | 16.0mm |
| Height (H) | 23.6mm |
| Length (L) | 40.6mm |
| Strap Width max. (G) | 0.5" |
| Strap Width max. (G) | 12.7mm |
| Width (W) | 25.4mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Min. Extr. Force (lbs) | 250.0lbs |
| Min. Extraction Force (N) | 1112N |
| Operating Temperature | -40 °C to +125 °C |
| ROHS compliant | Yes |
| Specifications |  |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
