HellermannTyton Gel, Silicone (SI) Green/Transparent, 1000ml

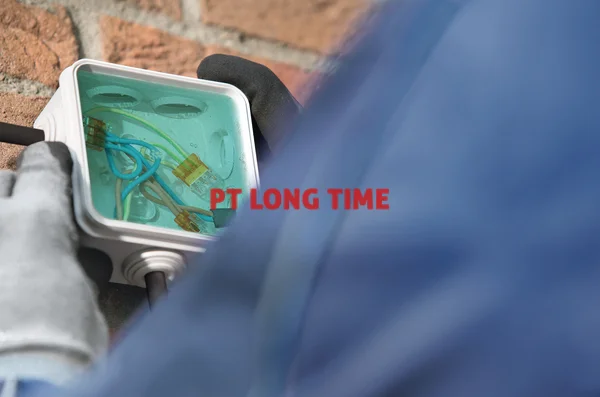

RELICON Religel Plus is a green-transparent, elastic 2-component silicone gel. It is packed in practical bottles or canisters including measuring cup and mixing stick. It is particularly suited to fill junction boxes for low voltage applications. Electrical insulation in low-voltage applications, Encapsulation of cables and wires in junction boxes, Building and household installations, Belowground, submerged.
- Timesaving due to fast curing time
- Stable up to 200 °C
- Visual control of the homogenous mixture indicated by green-coloured component B
- Multiple use possible, mixing ratio 1:1
- Excellent flow and insulating properties
- Excellent moisture and chemical resistance
- Soft elastic, vibration absorbing and removable residue-free
Specification
| Colour | Green (GN), Transparent (CL) |
| Density | 0.97 g/cm³, 20 °C (DIN EN ISO 2811-2) |
| Key product features | vibration absorbing |
| Material | Silicone (SI) |
| PART DESCRIPTION | Religel Plus 1.000-SI-CL/GN |
| Package Content | 1000ml |
| Package Content packed in | bottle |
| Pot Life | 5 min. 23°C |
| Product Family | Religel Plus |
| Product Group | RELICON Religel Plus |
| Short Description | Two-component silicone gel |
| Type | Religel Plus 1.000 |
| Viscosity | 1000 mPa*s, 23 °C (EN ISO 2555) |
| Weight/Unit | 1.257kg |
| Dielectric Strength | 25kV/mm |
| ELV compliant (Article 4 - 2) | Yes |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -60 °C to +200 °C |
| ROHS compliant | Yes |
| Shelf Life | Unlimited |
| Specifications |   |
| Specifications | IEC 60529, Edition 2.2, 2013-08 |
| Thermal Conductivity (max.) | 0.15W/mK |
| Thermal Conductivity (min.) | 0.15W/mK |
| Vibrations absorbing | Yes |
