HellermannTyton Cable Tie Mount for Screw Fixation, Wmax=12.7mm, ⌀10.29 mm, ⌀10.0 mm, 3/8" (M10) Screw, Black, 500pcs

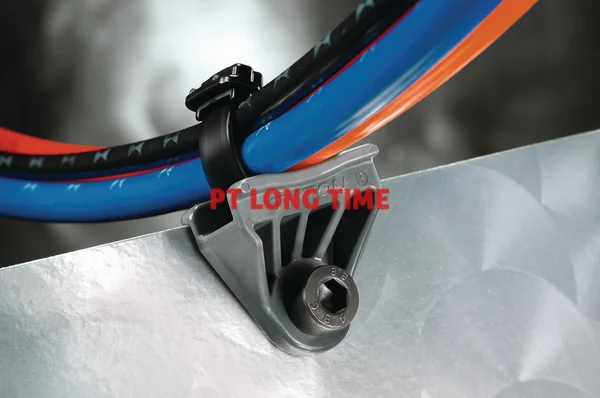

This axial oval mount stands off bundles from frame rails and cross members to prevent them from rubbing and chafing. They can be perfectly used in combination with heavy duty cable ties up to 12.7 mm width – ideal to securely fix cables and wires in the railway and shipbuilding industry as well as in truck and agricultural vehicle construction.
- Guides bundles securely above sharp edges
- For threaded bolts or screws
- Can be used in combination with heavy duty cable ties
- For cable ties up to 12.7 mm width
Name
HellermannTyton Cable Tie Mount for Screw Fixation, Wmax=12.7mm, ⌀10.29 mm, ⌀10.0 mm, 3/8" (M10) Screw, Black, 500pcs
Brand
Condition
New
Specification
| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Key product features | vibration absorbing |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min.Tensile Strength | 533N |
| Mounting Screw Type | 3/8" (M10) Screw |
| PART DESCRIPTION | SAM400B-R-PA66HIRHSUV-BK |
| Package Content | 500pcs. |
| Package Content packed in | pack |
| Product Family | SA-Series |
| Product Group | Harness clip for heavy duty applications, for screws or threaded bolts for edges |
| Short Description | Heavy duty mount 29,9x25 mm black |
| Type | SAM400B-R |
| UV-Stabilised | Yes |
| Weight/Unit | 0.01702kg |
| Height (H) | 44.9mm |
| Length (L) | 29.9mm |
| Strap Width max. (G) | 0.5 |
| Strap Width max. (G) | 12.7mm |
| Stud ⌀ | 0.375" |
| Stud ⌀ | 10.0 mm |
| Width (W) | 25.0mm |
| for Hole ⌀ (FH) | 10.29 mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Max. Torque (Nm) | 154.6Nm |
| Max. Torque (lbf-In) | 114.0lbf-ft |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |  |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
