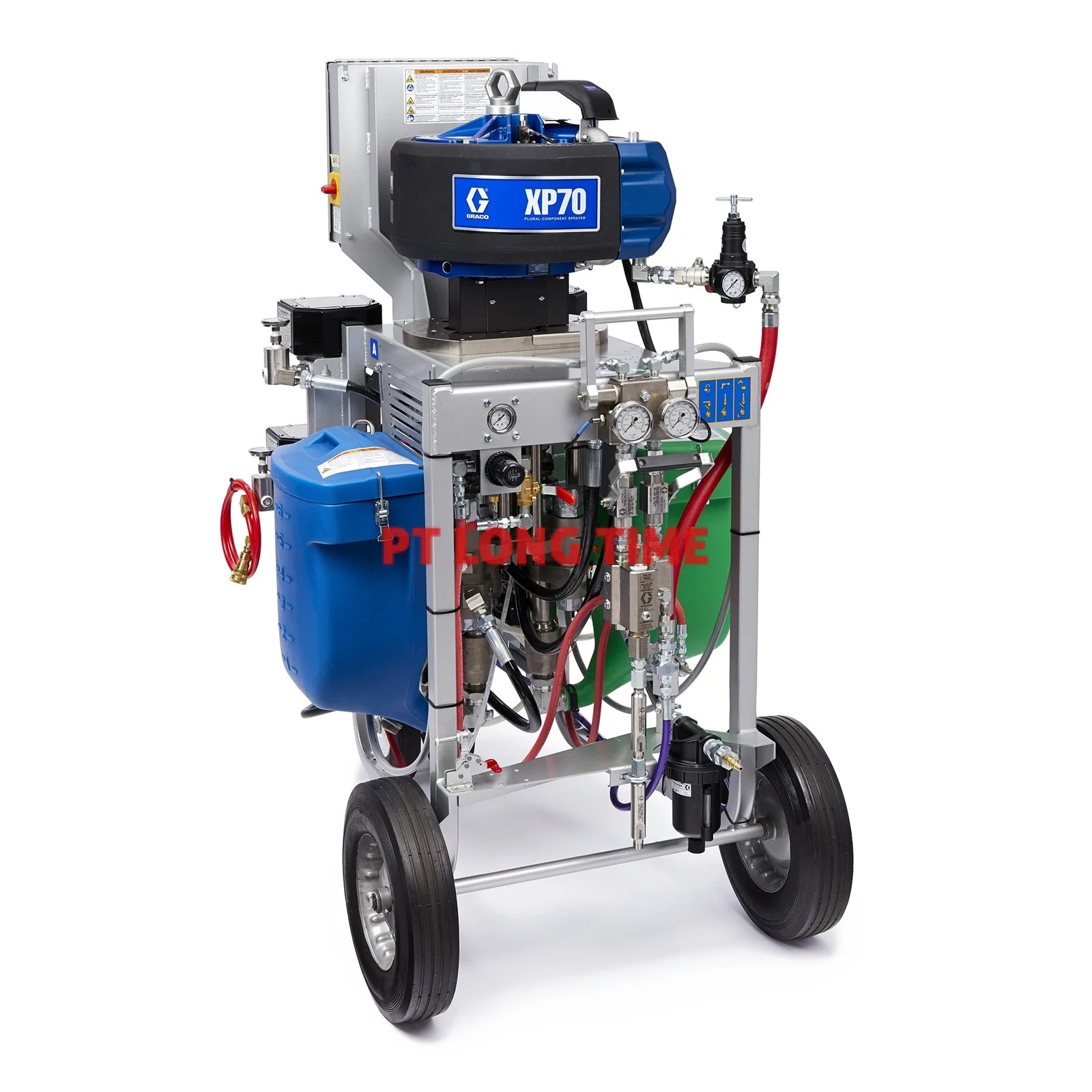

GRACO XP70 PLURAL-COMPONENT SPRAYER
A smart alternative to hand mixing
The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high to 100% solid coatings with superior results. In addition, the XP70’s design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, you'll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent.
The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear.
Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes.
Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Consistent material quality - no more guesswork or human error in measuring materials
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
| XP and XP-h Proportioners | |
| Maximum Fluid Working Pressure |
See Models section in instruction manual. |
| Maximum Air/Hydraulic Oil Working Pressure |
See Models section in instruction manual. |
| Combined Fluid Output (cc/cycle) |
See Models section in instruction manual. |
| Pressure Ratio |
See Models section in instruction manual. |
| Fluid Flow at 40 cpm |
See Models section in instruction manual. |
| Hydraulic Fluid Consumption (XP-h models only) |
0.76 liters per cycle |
| Air inlet size |
3/4 npsm(f) |
| Maximum air pressure supply to the system |
12 bar, 1 MPa |
| Fluid pump inlets without hoppers |
1-1/4 in. npsm(m) |
| Fluid gauge manifold outlets |
1/2 in. npt(f) |
| Fluid mix manifold inlets |
1/2 in. npt(f) ball valves |
| Mix manifold material outlet |
1/2 in. npt(f) |
| Maximum feed pressure from remote source |
17 bar, 1.7 MPa |
| Sound pressure |
7 bar, 0.7 MPa |
| Sound power |
7 bar, 0.7 MPa |
| Maximum Storage Time |
5 years (To maintain original performance, replace soft seals after 5 years of inactivity.) |
| Maximum Lifetime |
Indefinite with recommended maintenance and periodic rebuilds for critical parts. |
| Power Efficiency Factor (XP70) |
2.12 m³ compressed air/1 liter sprayed material at 7 bar (0.7 MPa) |
| Air consumption per 1 gallon (3.78 l) of flow | |
| XP70 |
75 scfm at 100 psi/gpm (2.12 m³/min at 7 bar, 0.7 MPa) |
| XP50 |
60 scfm at 100 psi/gpm (1.7 m³/min at 7 bar, 0.7 MPa) |
| XP35 |
50 scfm at 100 psi/gpm (1.42 m³/min at 7 bar, 0.7 MPa) |
| Filtration | |
| Air inlet filtration |
40-micron filter/separator included |
| XP pump outlets |
30 mesh |
| XTR Spray Gun |
60 mesh |
| Fluid Viscosity Range | |
| Gravity feed with 7 gallon (26 liter) hoppers |
200 to 20,000 cps (pourable) |
| Pressure feed |
Any viscosity that will not require feed pressure more than 15% of outlet pressure |
| Environmental Rating (Indoor/outdoor) | |
| Hazardous Areas |
EX II 2 G c IIA T2, NOTE: XP-h pump packages (284xxx) are not Ex rated. |
| Ambient Temperature Range | |
| Operating |
4-54°C |
| Storage |
-1-71°C |
| Maximum Fluid Temperature |
71°C |
| Wetted materials | |
| Housings and manifolds |
Carbon steel with electroless nickel plating |
| Miscellaneous parts |
Plated carbon steel, stainless steels, carbide, acetal, UHM-WPE, nylon, PTFE solvent resistant plastics |
| Pump packings |
Carbon filled PTFE, proprietary UHMWPE |
| Flush pump suction tube |
Aluminum |
| Hoses |
Nylon core |
| Weight | |
| Full XP35, XP50, or XP70 System with heaters, solvent flush pump, and hoppers |
261 kg |
| Full XP-h System with heaters, solvent flush pump, and hoppers |
273 kg |
| Bare XP35, XP50, or XP70 system with no heaters, solvent flush pump, or hoppers |
193 kg |
| Bare XP-h System with no heaters, solvent flush pump, or hoppers |
204 kg |
| XP35, XP50, or XP70 Pump only |
130 kg |
| XP-h Pump only |
132 kg |
