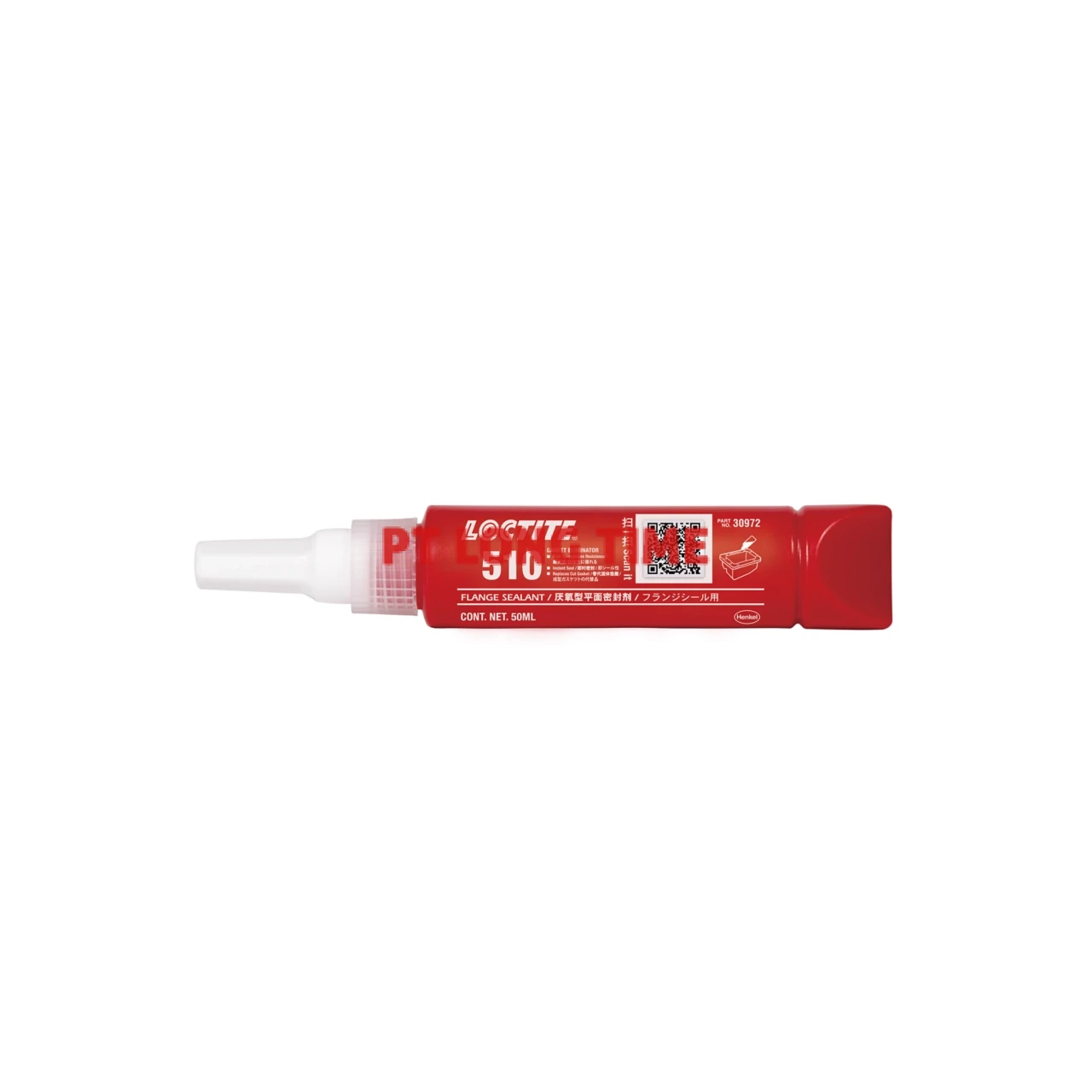

Gasket Sealant WEICONLOCK AN 305-10 LOCTITE 510
Specification
Name
Gasket Sealant WEICONLOCK AN 305-10 LOCTITE 510
SKU
AN 305-10
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | Orange | |
| Fluorescent | Yes | |
| Viscosity | +25 °C Brookfield | 70,000 - 300,000 ht mPa·s |
| Gap Bridging up to max. | 0.5 mm | |
| Breakaway Torque | 18 - 25 Nm | |
| Prevail Torque | 15 - 25 Nm | |
| Shear Strength Nmm² | (DIN 54452) | 5 - 10 N/mm² |
| Handling Strength | 15 - 30 min. | |
| Final Strength | (100% strength) | 6-12 h |
| Temperature Resistance | -60°C to +200°C | |
| Compressive Strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | Max. 1500 bar | |
| M_4x6 | Max. 1500 bar | |
| M_5x8 | Max. 1500 bar | |
| M_6x10 | Max. 1200 bar | |
| M_8x12 | Max. 800 bar | |
| M_10x16 | Max. 500 bar | |
| LOCTITE SPESIFICATION | |
| Application | Rigid Assembly Gasketing, Sealing, For High Temperature Applications, For Close Fitting Parts |
| Physical Form | Gel |
| Key Characteristics | Strength: Medium Strength, Chemical Resistant, Thixotropic, For machine-made rigid flanges |
| Application Method | Manual, Screen Printing, Dosing system |
| Gap Filling, Unprimed | 0.25mm |
| Substrate | Metal: Aluminum, Metal: Steel |
| Operating Temperature | -65.0 - 400.0 °F (-55.0 - 200.0 °C ) |
| Technology | Acrylic |
| Drying Type | Anaerobic Drying |
| Viscosity, 20 RPM | 90000.0 mPa.s (cP) |
| Time Fixture, Steel | 25.0 min. |
| Color | Red: Pink |
