Simple operation from high to low speeds.
Versatile speed control.
Small / lightweight, with air motor for safe operation.
Supports high frequency use by utilizing a strong load chain.
Includes upper and lower limit switches for safety.
Usable also at chemical plants or places where there is a risk of explosion.
Applications
For attaching/detaching and moving machining work.
For mold work and tool centering.
Chain type
(Rated load between 60 and 125 kg)
This type of Air Hoist is equipped with a surface-hardened load chain that is made of alloy steel and has excellent toughness and wear resistance
The control button on the pendant switch allows easy operation
The load chain is extendable

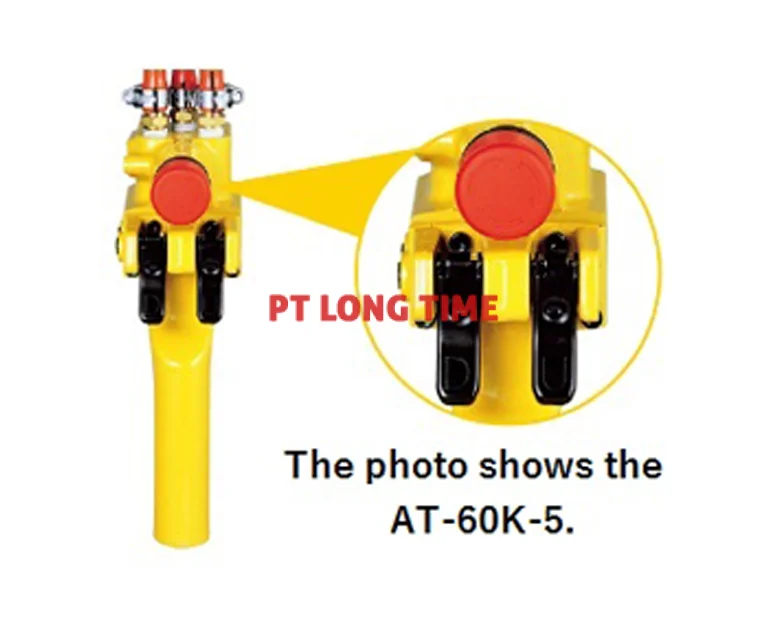

The AT-60-K-5 and AT-125-K-5 models are equipped with an emergencystop button on the pendant switch as standard
| Model | Rated load (kg) |
Stroke (m) |
Air pressure (MPa) (kgf/cm2) |
Lifting speed (m/min) |
Air consumption (m3/min) (normal) |
Link chain (Dia. x No. of falls) |
Air inlet | Mass (kg) |
Emergency stop button |
| AT-60K | 60 | 3 | 0.4(4) | 16.5 | 0.52 | 4.0×1 | Rc 3/8 | 12.3 | no |
| 0.5(5) | 20.0 | 0.67 | |||||||
| 0.6(6) | 23.5 | 0.85 | |||||||
| AT-60K-5 | 60 | 3 | 0.4(4) | 16.5 | 0.52 | 4.0×1 | Rc 3/8 | 13.0 | yes |
| 0.5(5) | 20.0 | 0.67 | |||||||
| 0.6(6) | 23.5 | 0.85 | |||||||
| AT-125K | 125 | 3 | 0.4(4) | 10.0 | 0.55 | 4.0×1 | Rc 3/8 | 12.5 | no |
| 0.5(5) | 12.0 | 0.71 | |||||||
| 0.6(6) | 14.5 | 0.9 | |||||||
| AT-125K-5 | 125 | 3 | 0.4(4) | 10.0 | 0.55 | 4.0×1 | Rc 3/8 | 13.2 | yes |
| 0.5(5) | 12.0 | 0.71 | |||||||
| 0.6(6) | 14.5 | 0.9 |
