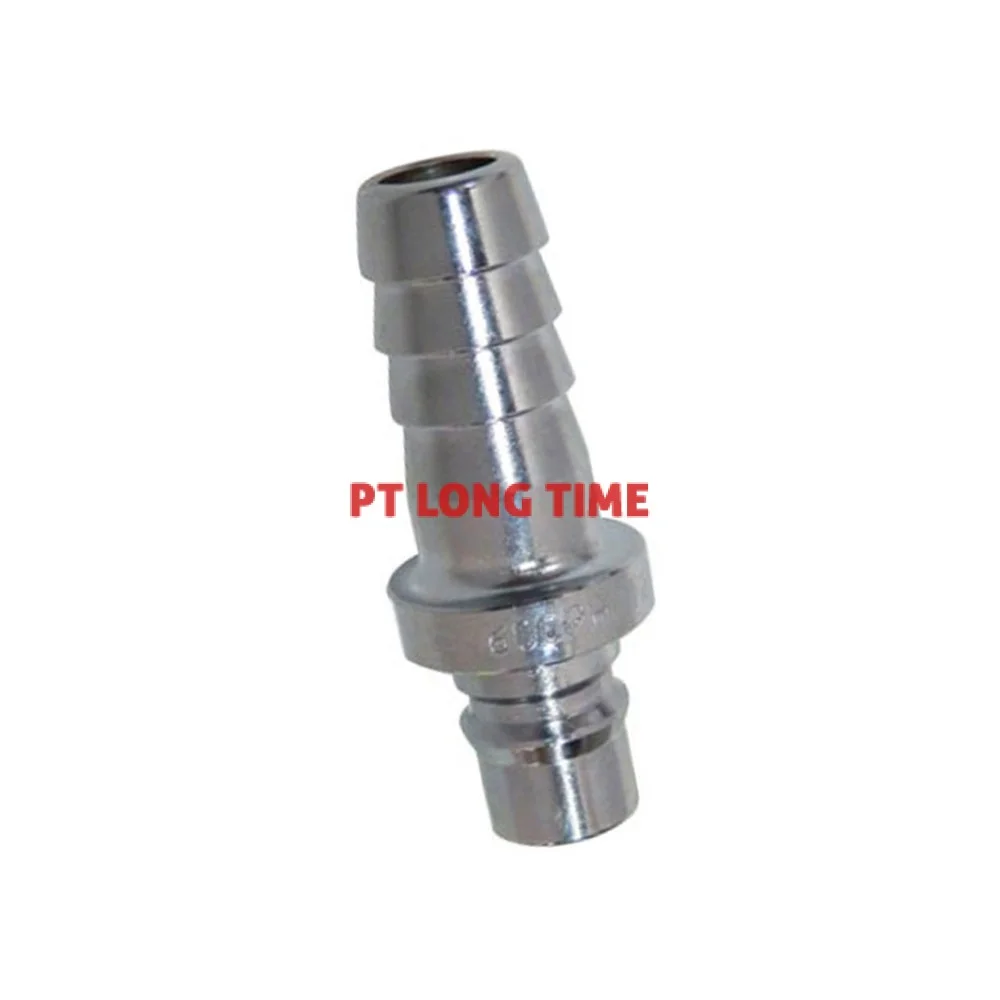

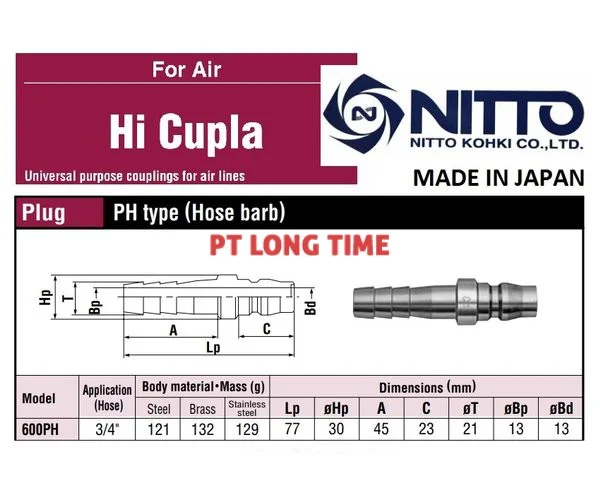

NITTO KOHKI Hi-Coupler 3/4" Plug Hose (600PH)
| Model Number | 600 PH |
|---|---|
| Unit | 1pc |
| Dimension Lp | 77mm |
| Fluid | air |
| Material (Body) | Steel (chrome plating) |
| Installation Shape | hose nipple |
| Dimension T | 21mm |
| Dimension Bd | 13mm |
| Material (Seal) | Nitrile rubber |
| Maximum Working Pressure | 1.5MPa |
| Socket or Plug | plug |
| Dimension Bp | 13mm |
| Dimension A | 45mm |
| Dimension Hp | 30mm |
| Operating Temperature Range | -20 to +80 Degree C |
| Other Side's Hose Size | For 3/4 hose |
| Valve Structure | No valve |
| Dimension c | 23mm |
| Pressure resistance | 2.0MPa [20kgf/cm2) |
