Structural Acrylic Adhesive WEICON RK-1300 LOCTITE 330
The structural acrylic adhesive WEICON RK-1300 has high impact, peel and shear strength. The system consists of one adhesive and one activator, which are used in the “no mix” procedure. This makes processing easier by eliminating mixing procedures.The product is particularly suitable for bonding large surfaces of many different materials such as metals, ferrites and rigid plastics. WEICON RK-1300 can be used in mechanical and apparatus engineering, vehicle construction, tool and mould making, the building and furniture industry, and in many other industrial areas.

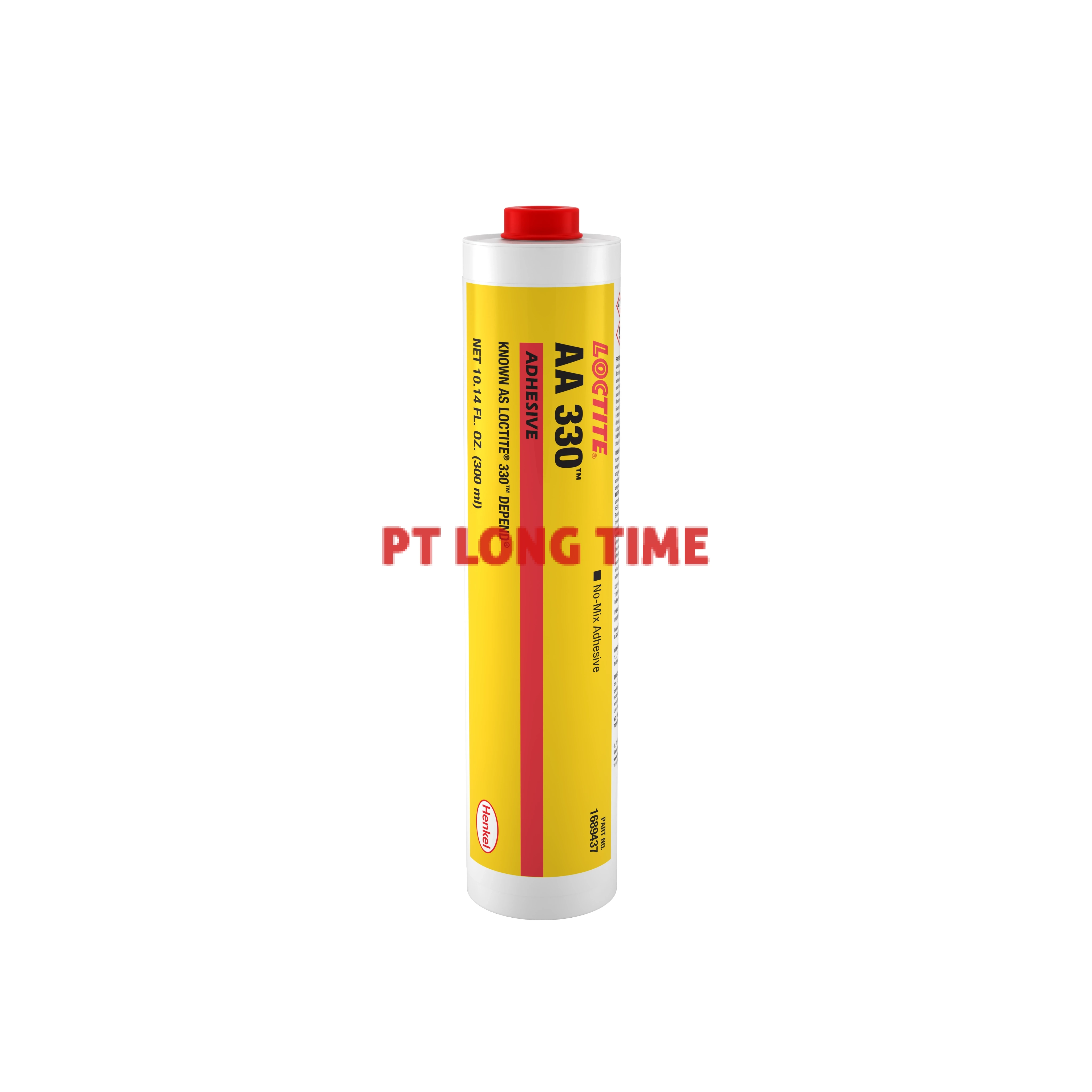

LOCTITE® AA 330 is a no-mix, pale-yellow, general purpose structural bonder which is ideal for bonding dissimilar substrates like PVC, phenolic and acrylic compounds. It is a medium to high viscosity product that has good impact resistance as well as a service temperature range up to +100°C. It requires an activator such as LOCTITE SF 7386 or SF 7387.
| WEICON SPESIFICATION | ||
| Base | Methyl Methacrylate | |
| Texture | Pasty | |
| Colour | Beige, Opaque | |
| Processing | ||
| Processing Procedure | No-Mix | |
| Processing Temperature | +10°C to +40°C | |
| Curing Temperature | Minimum: +18°C | |
| Cure Temperature | +18°C | |
| Density of the Mixture | 1.2 g/cm³ | |
| Gap Bridging up to max. | 0.4 mm | |
| Curing | ||
| Handling Strength | (35% strength) | 6 min. |
| Working Strength After | (50% strength) | 9 min. |
| Final Strength | (100% strength) | 24 h |
| LOCTITE SPESIFICATION | |
| Agency approvals / certificates / specifications | NSF P1 |
| Applications | Structural Bonding |
| Color | Yellow |
| Cure type | Activator Cure |
| FEA (finite element analysis) | Finite Strain, Viscoelastic |
| Fixture time | 3.0 min. |
| Key characteristics | Mix: No Mix Required |
| Number of components | 1 Part |
| Viscosity, Brookfield - RVT, @ 25.0 °C Spindle 7, speed 20 rpm | 45000.0 - 90000.0 mPa·s (cP) |
