Steel Filled Epoxy Resin System for Repairs WEICON Plastic Metal A LOCTITE 3471

WEICON A provides a real alternative to welding, as the application of the epoxy resin does not cause thermal distortion as in welding. The 2-component system can be used for repairs on tanks and pipes as well as for repairing cracks in engine or pump housings and machine parts. It is ideal for use in sewer systems where pipes and pipelines are exposed to strong media influences. Other applications include the manufacture of models, moulds, tools and clamping devices. WEICON A can be used in mechanical engineering, in toolmaking, in the cement industry, in power plants, in model and mould making, and in many other industrial sectors.

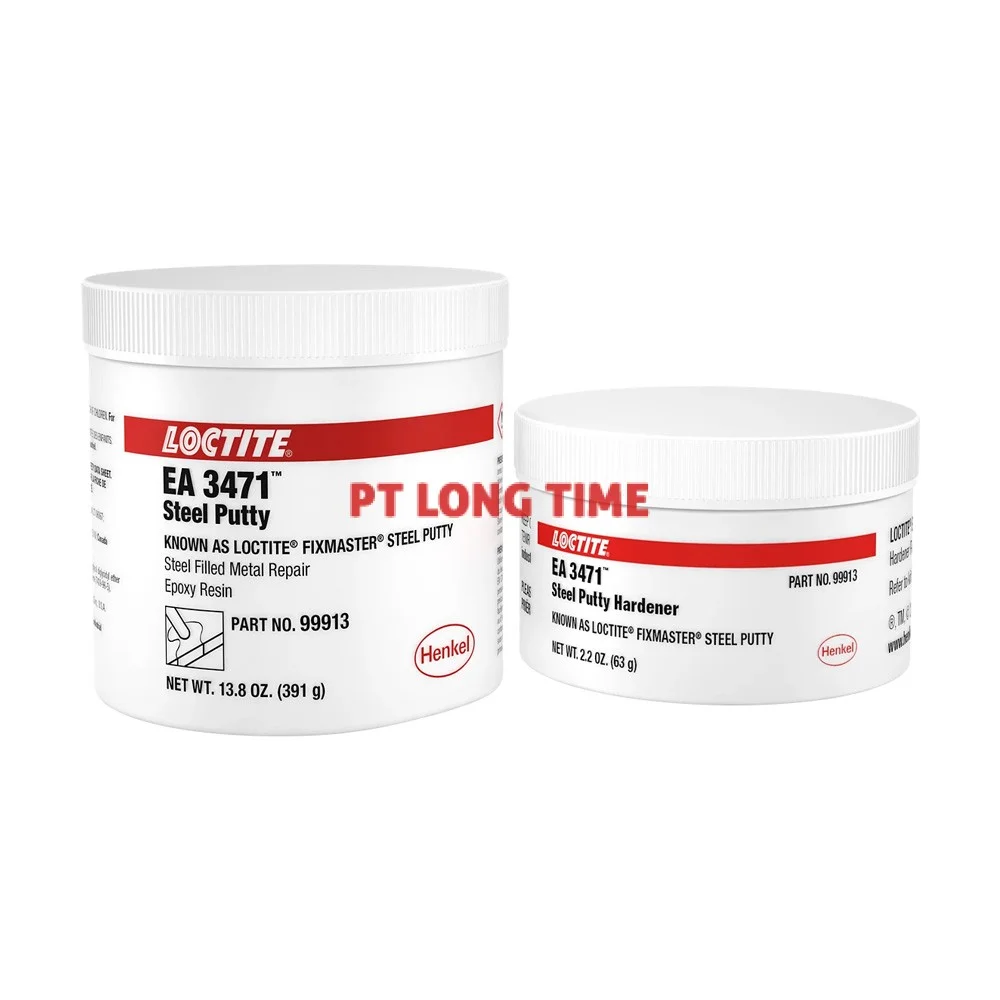

LOCTITE® EA 3471 is a non-sagging, two-part, gray epoxy putty that is easy to apply without the need for heating or welding. Specific applications include repairing damage to non-structural parts in molds, making contact molds and fixtures, sealing vessels, tanks, and valves, air sealing for resurfacing worn surfaces, and filling void areas. This product is specifically used in applications with an operating range from -30 to +105°C.

  1. Cures to a metal-like finish
  2. Superior adhesion to metal surfaces
  3. Bonds well to all metal substrates
  4. Will not sag or shrink
Specification
Name
Steel Filled Epoxy Resin System for Repairs WEICON Plastic Metal A LOCTITE 3471
Brand
Condition
New
WEICON SPESIFICATION
Base Epoxy
Filler Steel
Texture Pasty
Colour Dark grey
Processing Temperature +15°C to +40°C
Component Temperature >3 °C above dew point
Relative Air Humidity < 85%
Mixing Ratio by Weight 100:10
Mixing Ratio by Volume 100:21
Viscosity of the Mixture at +25°C 850,000 mPa·s
Density of the Mixture 2.6 g/cm³
Consumption (Layer Thickness 1.0 mm) 2.6 kg/m²
Max. Layer Thickness per Step 20 mm
