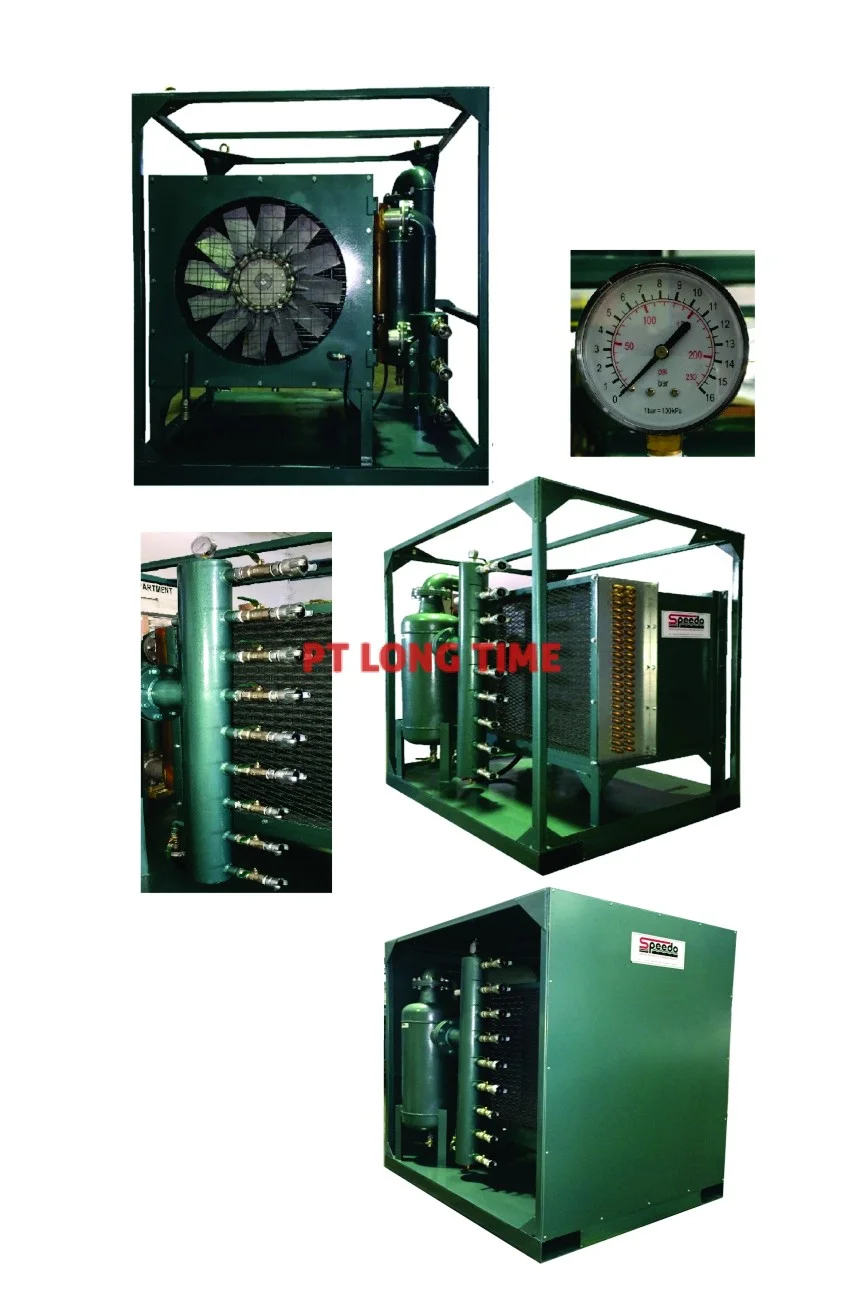

Speedo Portable Air-Cooler SPEEDO AC2800
SPEEDO Air-cooled After Cooler is designed to perform with high portability and durability in conditions where electrical supply is not allowed or not available at site.
It uses a high ratio heat exchanger, which is cooled by high velocity axial ventilation powered by an air motor. The system is fully integrated within a durable framework, which has an integrated manifold providing for 6 outlets for spray painting.
SPECIFICATIONS
Airflow Capacity : 2800 cfm
Working Pressure : 0 - 180 psi
Air Inlet Temperature : < 110°C
Air Outlet Temperature : < 42°C
Ambient Temperature : < 32°C
Cooling Method : Pneumatic air motor
Condensor Coil Dimensions : 980 x 330 x 955mm (L x W x H)
Weight : 650 kg / 700 kg*
Dimensions : 1200 x 1500 x 1600
(open type / with cover) (L x W x H)
Inlet Manifold : 3 ports x 2” ball valve
Outlet Manifold : 6 ports x 1-1/4” ball valve 3 ports x 3/4” ball valve
DESCRIPTION PART NO.
AIR-COOLED AFTER COOLER 6 OUTLETS
OPEN TYPE 0301-016/OT
OPEN TYPE WITH COVER 0301-016/A
