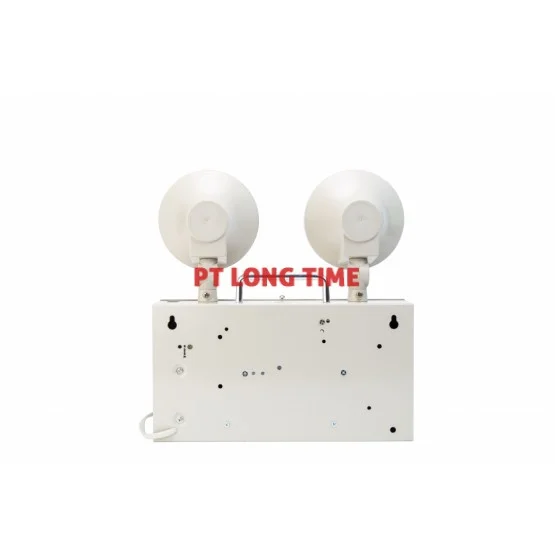

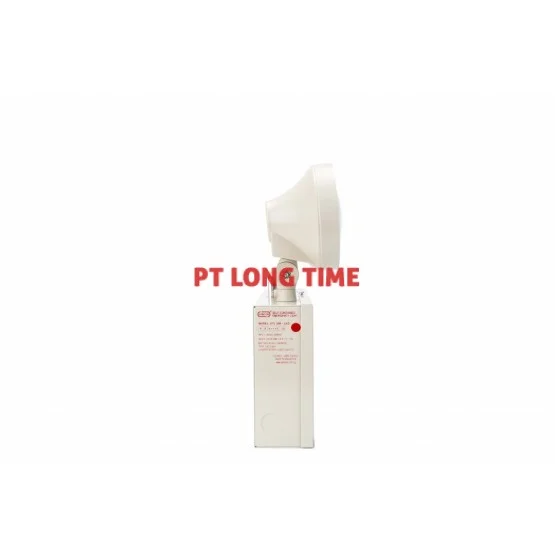

SAMCOM Self-Contained Emergency White LED Twin Light ETL-208-LED
Is designed with low EMI and specially equipped with a customised proprietary Hybrid IC for higher reliability and greater efficiency in operation. Compact and lightweight. Easy to install. Portable, allows flexibility in usage. Adjustable twin lamp allows flexibility in angle of projection. Suitable for Shops, Supermarkets, Factories, Schools, Banks, Computer Rooms, Offices, Public Halls, Restaurants, Hospitals, etc.
Name
SAMCOM Self-Contained Emergency White LED Twin Light ETL-208-LED
Brand
Condition
New

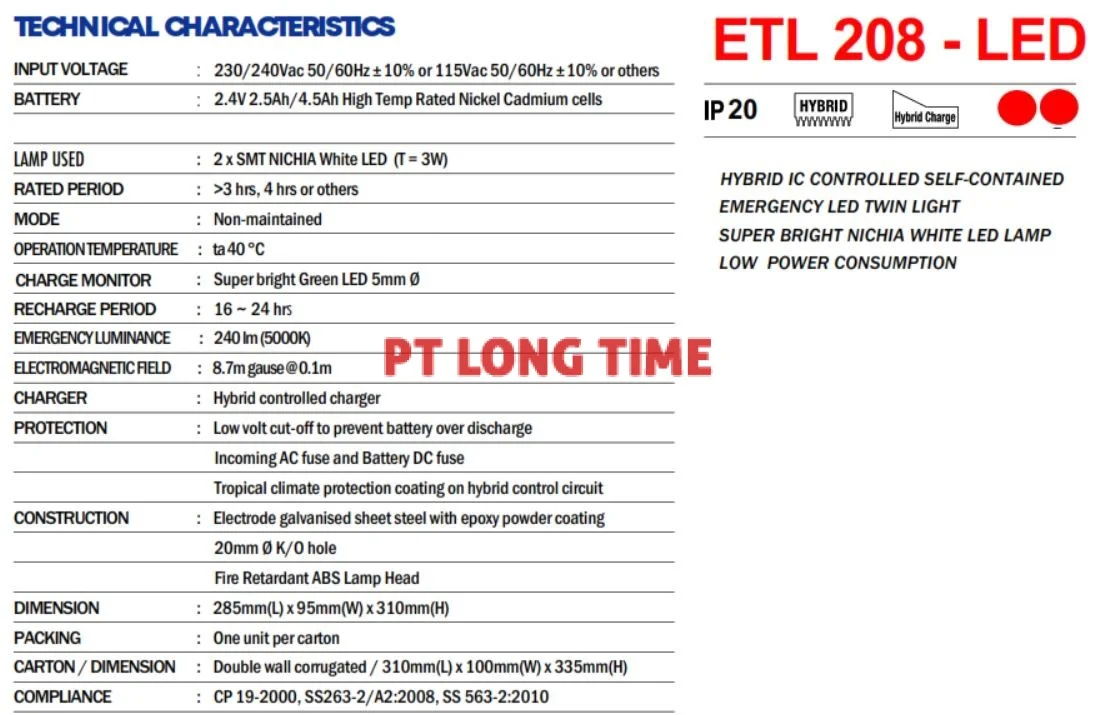

| Input Voltage | : | 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others |
| Battery | : | 2.4V 2.5Ah/4.5Ah High temp rated Nickel Cadmium cells or others |
| Lamp Used | : | 2 x SMT NICHIA White LED (T=3W) |
| Rated Period | : | > 3 hrs, 4 hrs ± 10% or others |
| Mode | : | Non-Maintained |
| Operation Temperature | : | ta 40 °C |
| Power Consumption | : | < 1.4W |
| Charge Monitor | : | Super bright green LED 5mm Ø |
| Recharge Period | : | 16 ~ 24 hrs |
| Emergency Luminance | : | 86 lm |
| Electromagnetic Field | : | 8.7m gause @ 0.1m |
| Charger | : | Hybrid controlled charger |
| Protection | : | Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid circuit |
| Construction | : | Moulded fire retardant ABS housing, Cast aluminium lamp head |
| 20mm Ø K/O hole. Fire retardant ABS lamp head | ||
| Dimension | : | 290mm(L) x 90mm(W) x 340mm(H) |
| Packing | : | One unit per carton |
| Weight | : | 1.9kg (Net) / 2.0kg (Gross) |
| Packing | : | One unit per carton |
| Carton/Dimension | : | Double wall corrugated / 310mm(L) x 100mm(W) x 350mm(H) |
| Compliance | : | SS563-1:2000, SS563-2,2010/A1-2013, SSIEC60598-2-22:2016, SSIEC60598:Part 1:2016 |
| Warranty | : | 1 Year |
