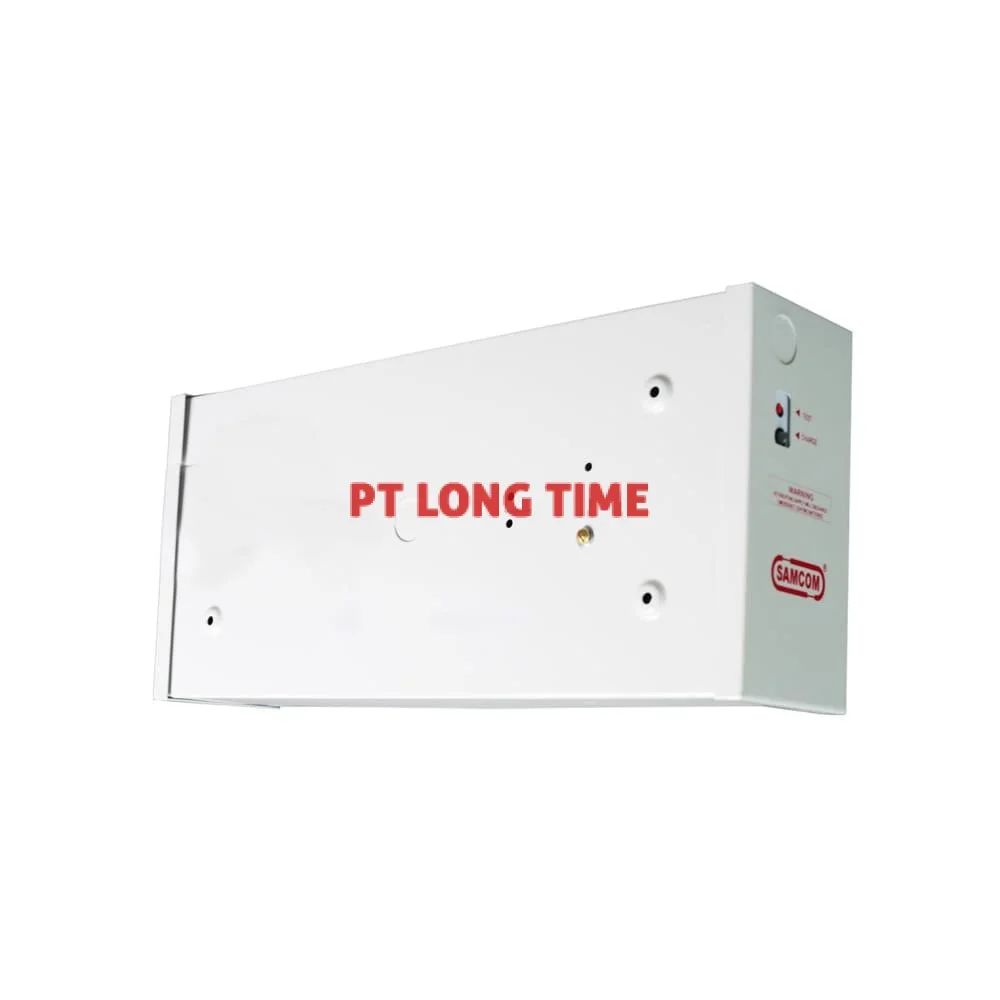

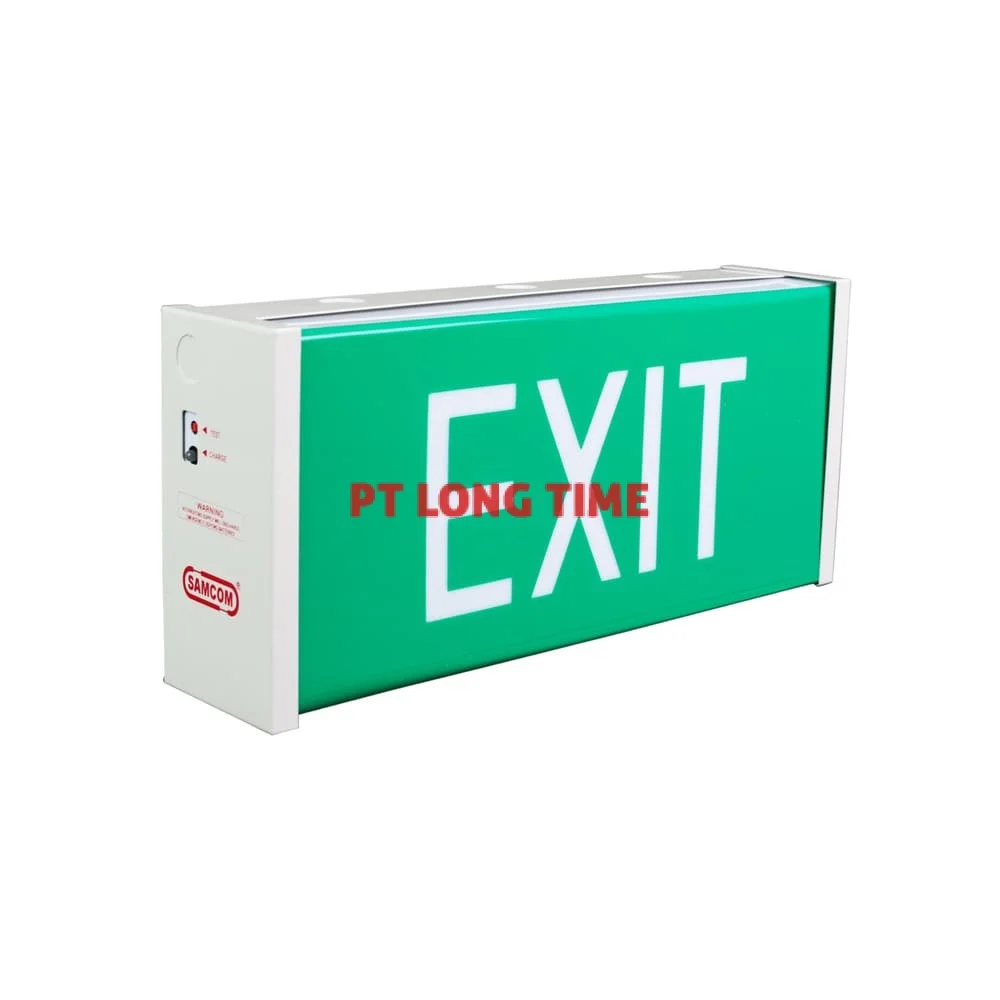

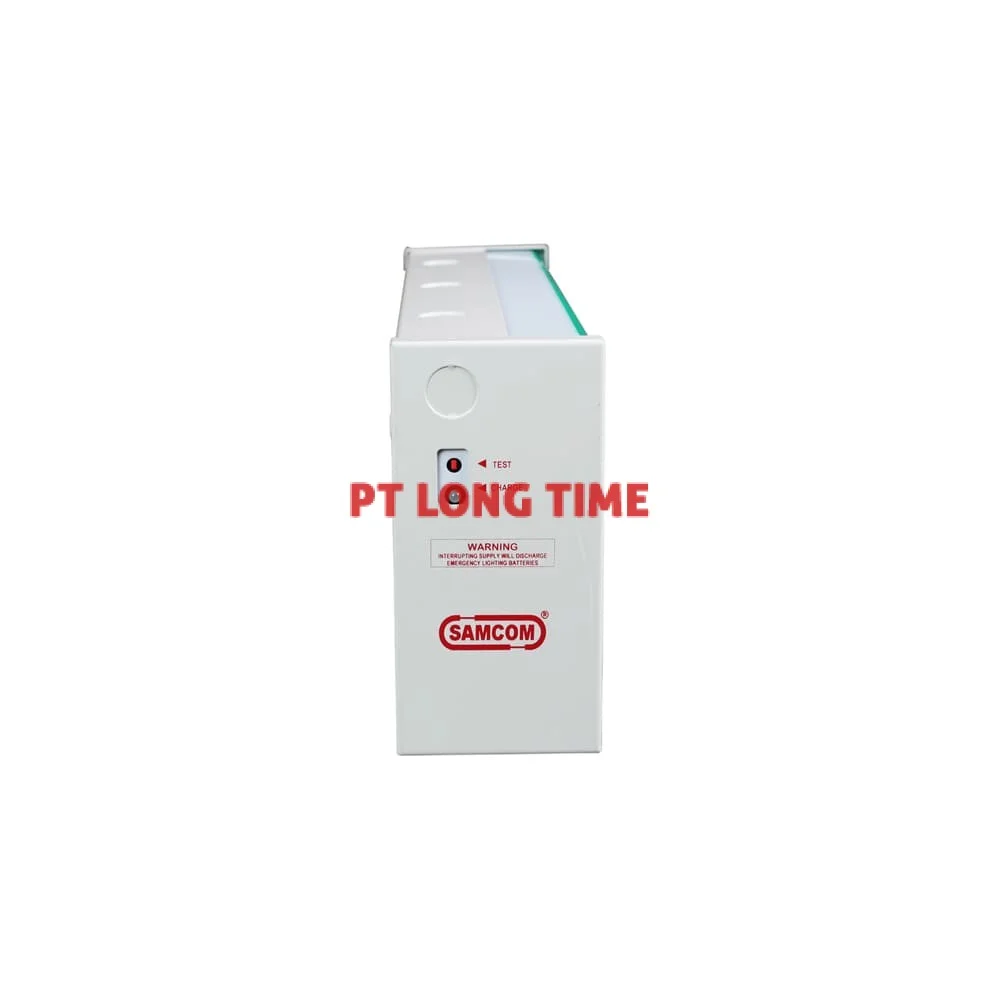

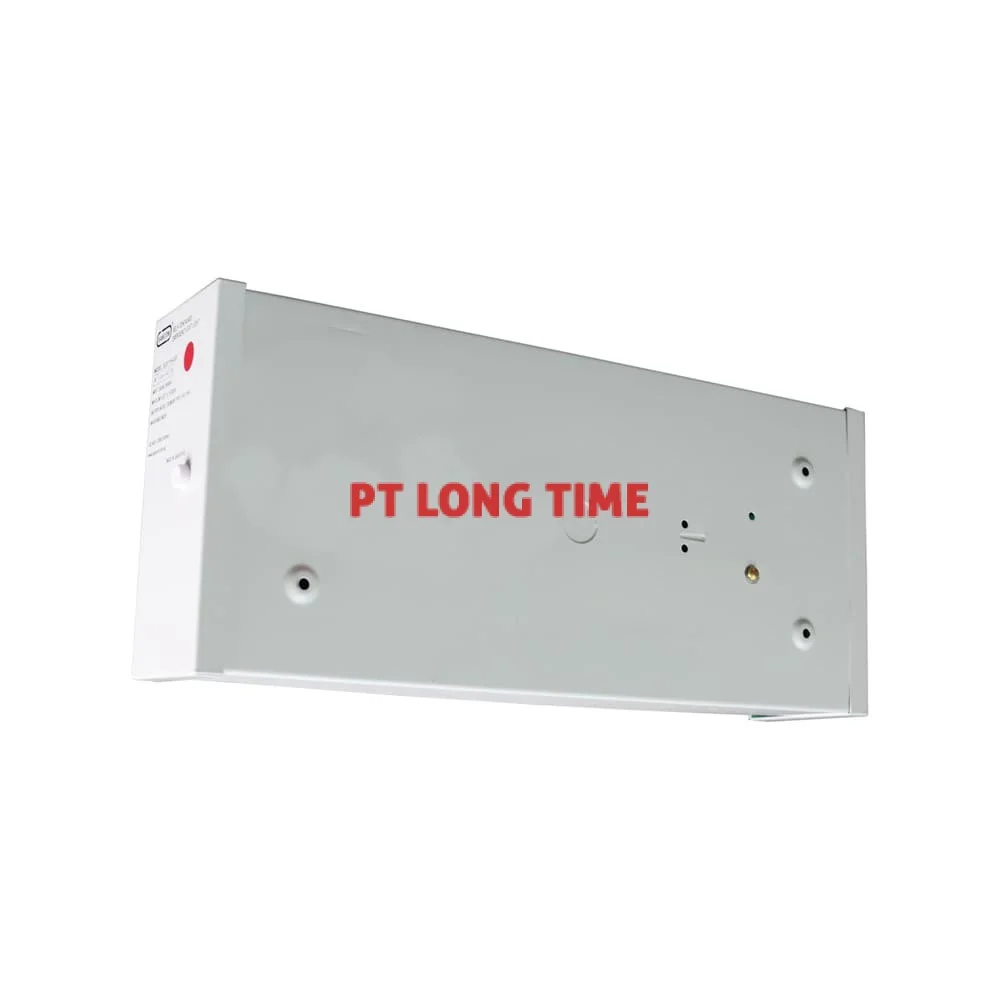

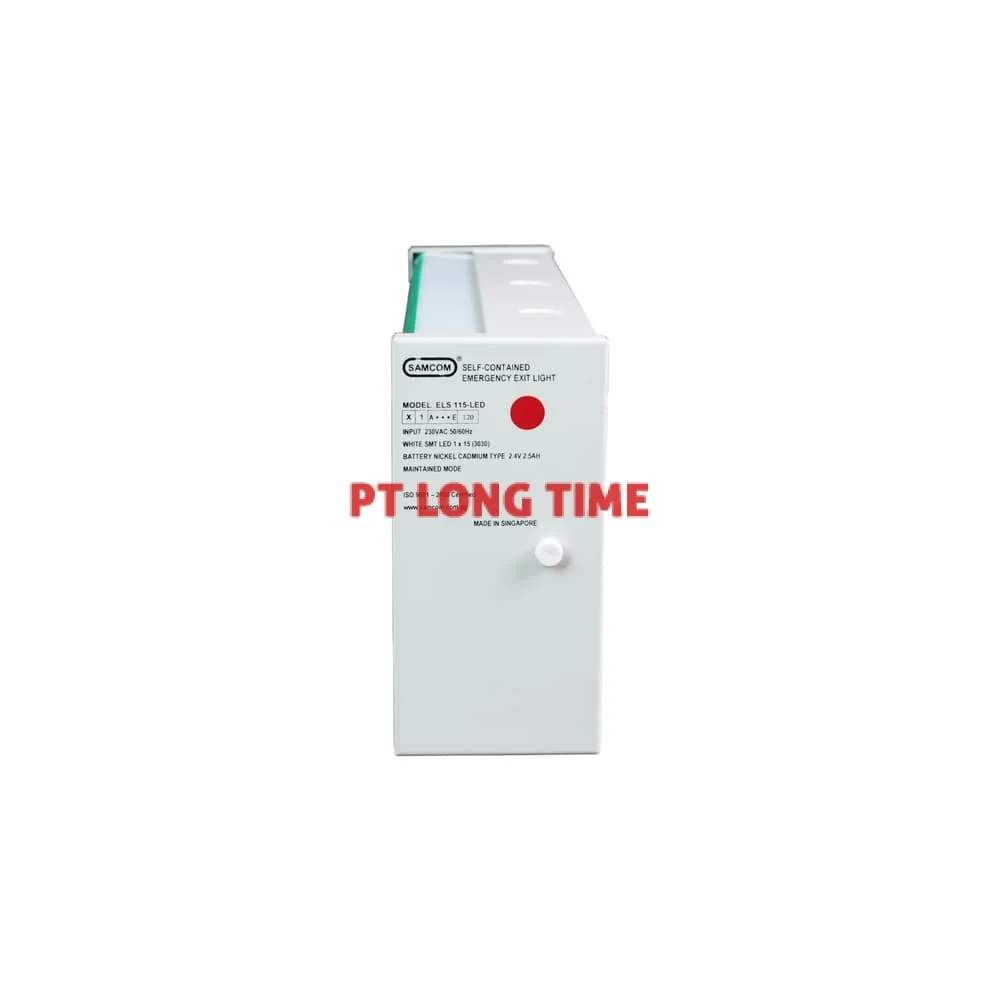

SAMCOM ELS115-LED-SMT Self Contained White LED Emergency Exit Light
Specification
Name
SAMCOM ELS115-LED-SMT Self Contained White LED Emergency Exit Light
SKU
ELS115-LED-SMT
Brand
Condition
New
| Input Voltage | 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others |
| Battery | 2.4V 2.5AH/4.5AH High temp rated Nickel Cadmium cells or others |
| Lamp Used | 15 White LED |
| Rated Period | > 2 hrs, 3 hrs or others |
| Mode | Maintained |
| Operation Temperature | ta 40 Degree C |
| Power Consumption | 4.6W |
| Charge Monitor | Super bright green LED 5mm Ø |
| Recharge Period | 16 ~ 24 hrs |
| Emergency Luminance | > 8 cd/m 2 |
| Electromagnetic Field | 17m gause @ 0.1m |
| Charger | Hybrid controlled charger |
| Protection | Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit |
| Construction | Electrode galvanised sheet steel with epoxy powder coating. 20mm K/O hole, Fire Retardant Acrylic Opal diffuser. |
| Dimension | 370 x 80 x 165mm |
| Weight | 2.60kg (Net) / 2.70kg (Gross) |
| Packing | One unit per carton |
| Carton / Dimension | Double wall corrugated / 390 x 100 x 180mm |
| Compliance | SS563-1:2010, SS563-2-2010/A1:2013, SSIEC 60598: PART1:2016 |
