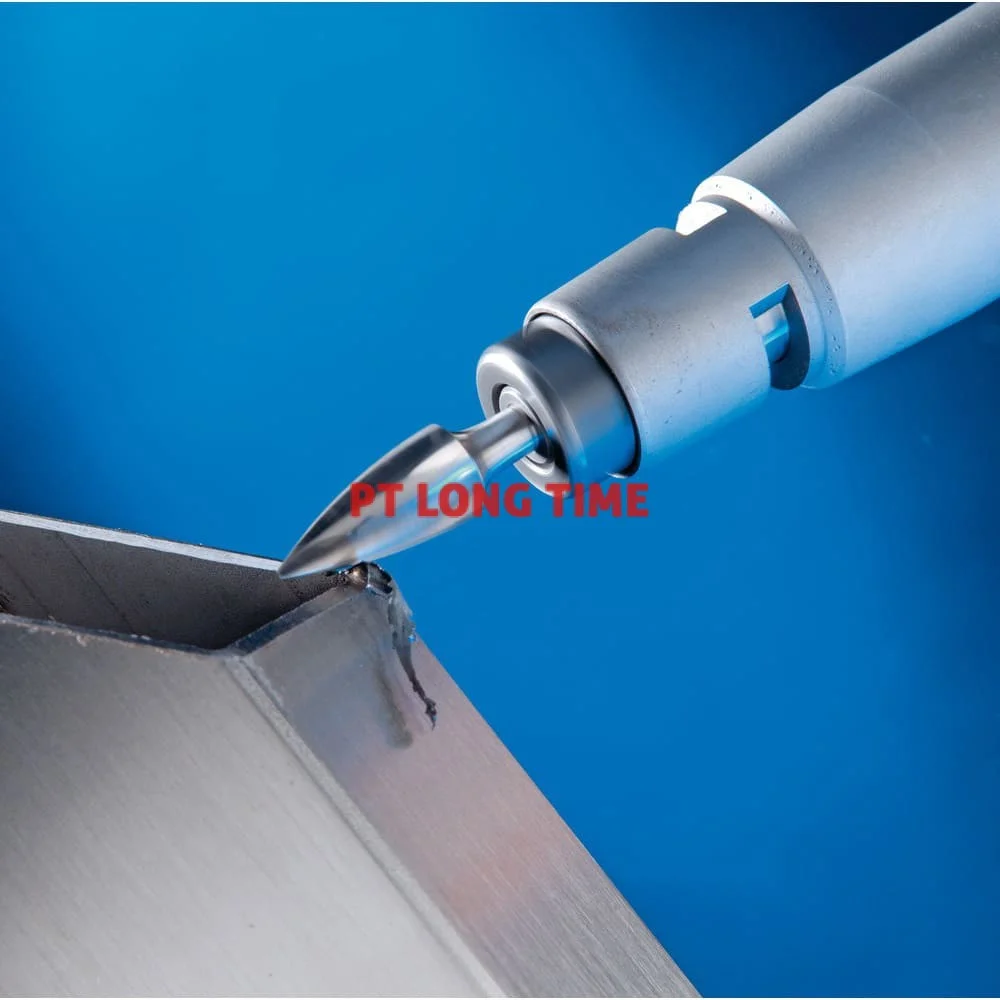

PFERD Tungsten Carbide Burr Pointed Tree SPG Dia. 10 x 20MM EAN 4007220048023
Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate.
Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material.
Pointed tree-shaped burr according to DIN 8032 with cut conforming to DIN 8033, flattened tip.
Name
PFERD Tungsten Carbide Burr Pointed Tree SPG Dia. 10 x 20MM EAN 4007220048023
Brand
Condition
New
| Cut | 3 PLUS |
| Dia. external | 25/64 Inch / 10 mm |
| Dia. shank | 6 mm |
| Length, cut | 20 mm |
| Length, total | 2.23/64 Inch / 60 mm |
| RPM from, grey cast iron, white cast iron | 14000 RPM |
| RPM from, hardened, heat-treated steels over 1,200 N/mm² | 8000 RPM |
| RPM from, high-temperature-resistant materials | 8000 RPM |
| RPM from, rust and acid-resistant steels | 8000 RPM |
| RPM from, steels up to 1,200 N/mm² | 14000 RPM |
| RPM to, grey cast iron, white cast iron | 19000 RPM |
| RPM to, hardened, heat-treated steels over 1,200 N/mm² | 11000 RPM |
| RPM to, high-temperature-resistant materials | 14000 RPM |
| RPM to, rust and acid-resistant steels | 11000 RPM |
| RPM to, steels up to 1,200 N/mm² | 19000 RPM |
| Materials that can be worked | Applications |
|
|
| Drive types | |
|
