PFERD TC Hole Cutter / Hole Saw Dia. 25 x 8MM EAN 4007220063002

PFERD TC Hole Cutter / Hole Saw Dia. 25 x 8MM EAN 4007220063002

Add Enquiry Added to Enquiry

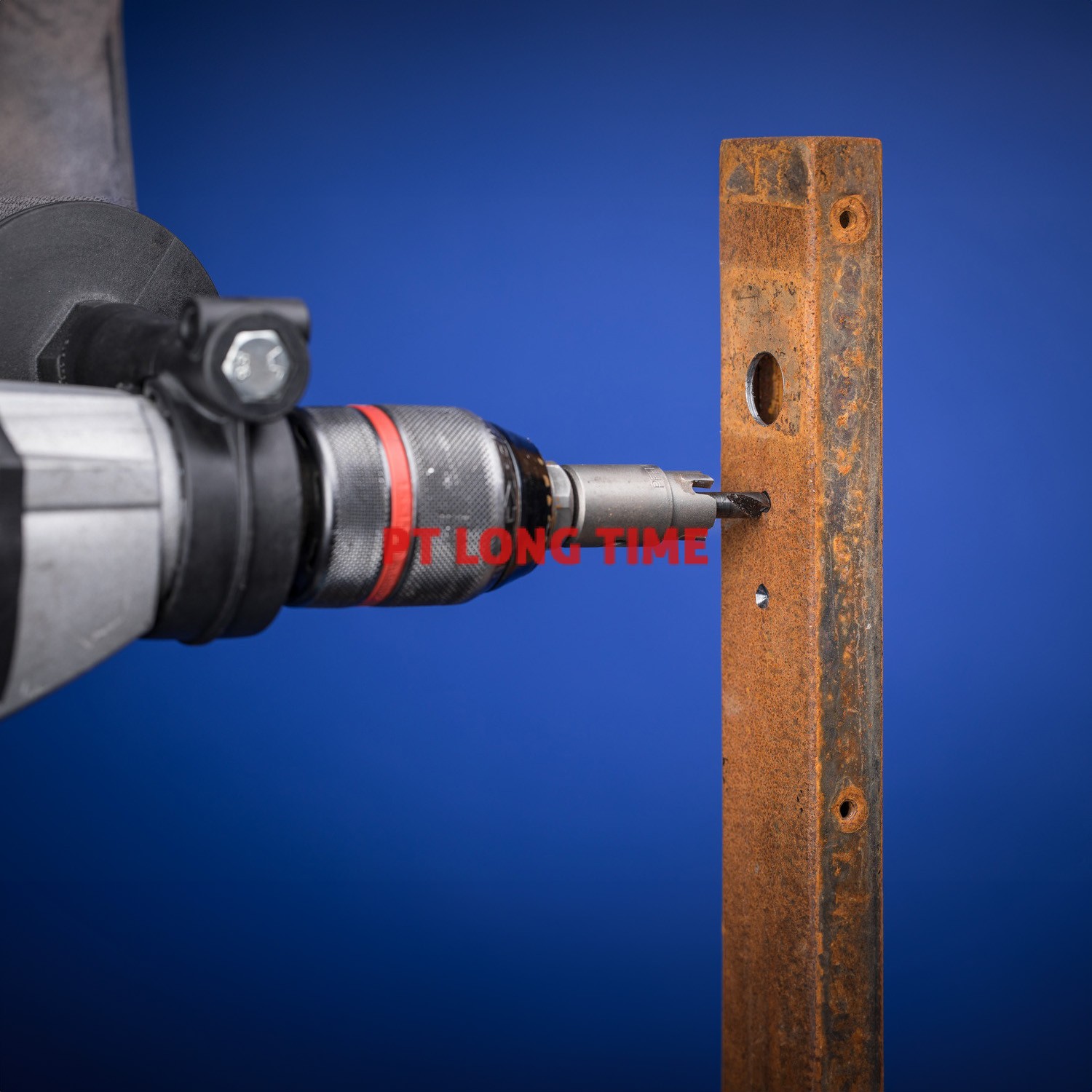

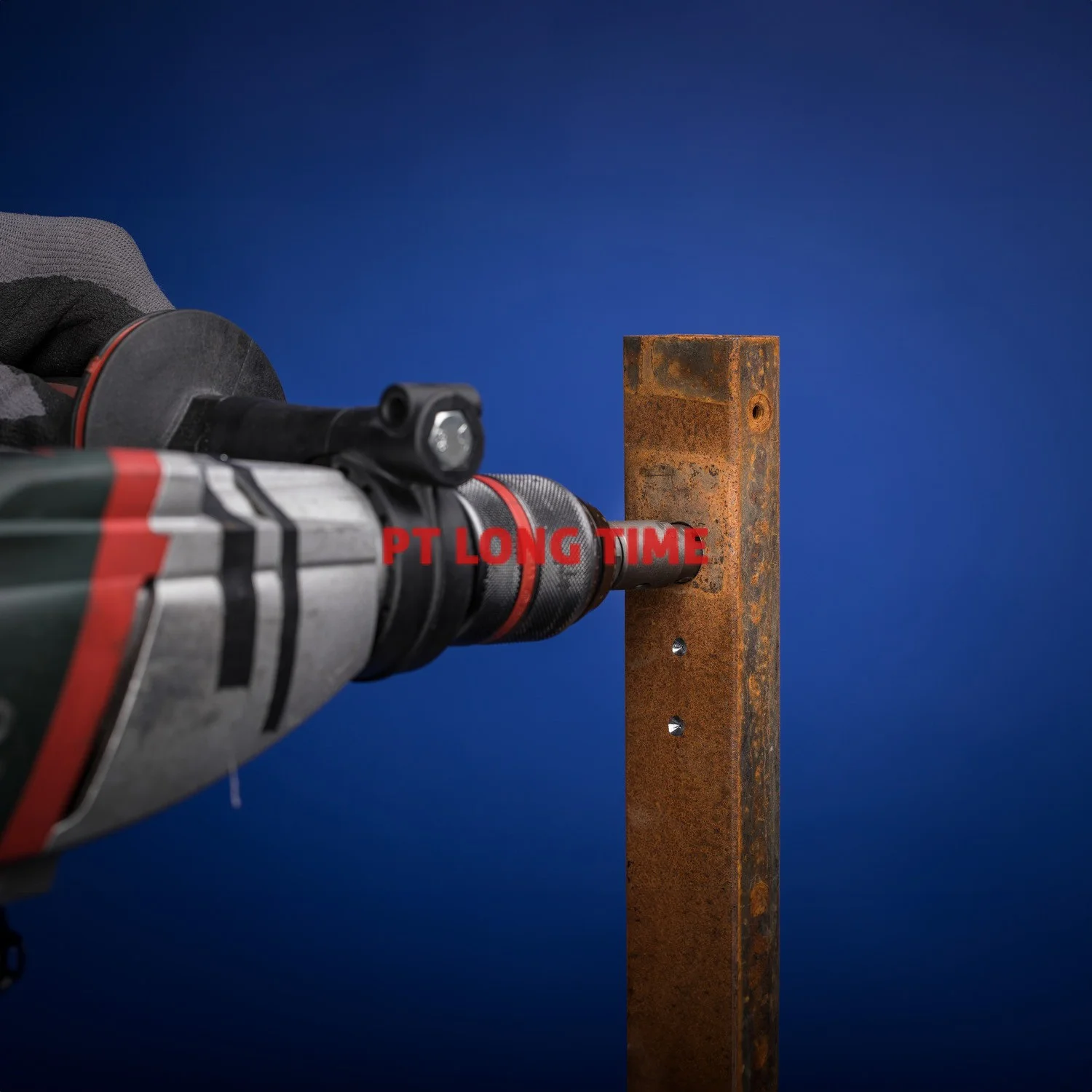

Tungsten carbide hole cutters are professional tools for quick, precise hole-cutting (cut-outs) with a diameter of 16 to 105 mm. They are suitable for working on alloyed and non-alloyed steels, stainless steel (INOX), non-ferrous metals and plastics (including GRP). Tungsten carbide hole cutters are used on hand drills or on stationary machines. PFERD hole cutters have an irregular tooth pitch (distance between teeth) to prevent tool chatter.

The flat version (tool height 8 mm) is suitable for work on flat materials up to 4 mm in thickness.

Name
PFERD TC Hole Cutter / Hole Saw Dia. 25 x 8MM EAN 4007220063002
Brand
PFERD
Condition
New
Dia. external 25 mm
Dia. shank 10 mm
RPM from, rust and acid-resistant steels 260 RPM
RPM from, soft non-ferrous metals 560 RPM
RPM from, steels up to 1,200 N/mm² 510 RPM
RPM from, thermoplastics, fibre-reinforced plastics (GRP/CRP) with a fibre content under 40% 560 RPM
RPM to, rust and acid-resistant steels 640 RPM
RPM to, soft non-ferrous metals 840 RPM
RPM to, steels up to 1,200 N/mm² 760 RPM
RPM to, thermoplastics, fibre-reinforced plastics (GRP/CRP) with a fibre content under 40 % 840 RPM
Materials that can be worked Applications
  • Aluminium
  • Annealed cast iron
  • Black annealed cast iron (GTS, GJMB)
  • Brass
  • Bronze
  • Case-hardened steels
  • Cast iron
  • Cast steel
  • Chipboard
  • Copper
  • Elastomers
  • Fibre-reinforced thermosetting plastics (GRP, CRP)
  • Fibre-reinforced thermosetting plastics (GRP, CRP) with a fibre content > 40 %
  • Fibre-reinforced thermosetting plastics (GRP, CRP) with a fibre content ≤ 40 %
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Hard aluminium alloys
  • Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
  • Hard non-ferrous metal
  • Hardwood
  • Other
  • Other non-ferrous metals
  • Plastics
  • Soft aluminium alloys
  • Soft non-ferrous metal
  • Soft titanium alloys (tensile strength 500 N/mm²)
  • Soft wood
  • Stainless steel (INOX)
  • Steel
  • Steel, cast steel
  • Steel materials with a hardness > 54 HRC
  • Steels over 700 N/mm² (> 220 HB)
  • Steels up to 1,200 N/mm² (< 38 HRC)
  • Steels up to 700 N/mm² (< 220 HB)
  • Thermoplastics
  • Thermosetting plastics
  • Titanium
  • Titanium alloys
  • Tool steels
  • Tough aluminium alloys
  • White annealed cast iron (GTW, GJMW)
  • Wood
  • Zinc
  • Cutting out holes
  • Drilling
Drive types
  • Column drill
  • Power drill
  • Robot
  • Stationary machines
